65 13 195 Removing And Installing/Replacing Rear Treble Speaker (In Rear Shelf)
WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove speaker box. Refer to 65 13 180 REMOVING AND INSTALLING/REPLACING REAR SPEAKER BOX (IN REAR SHELF) .

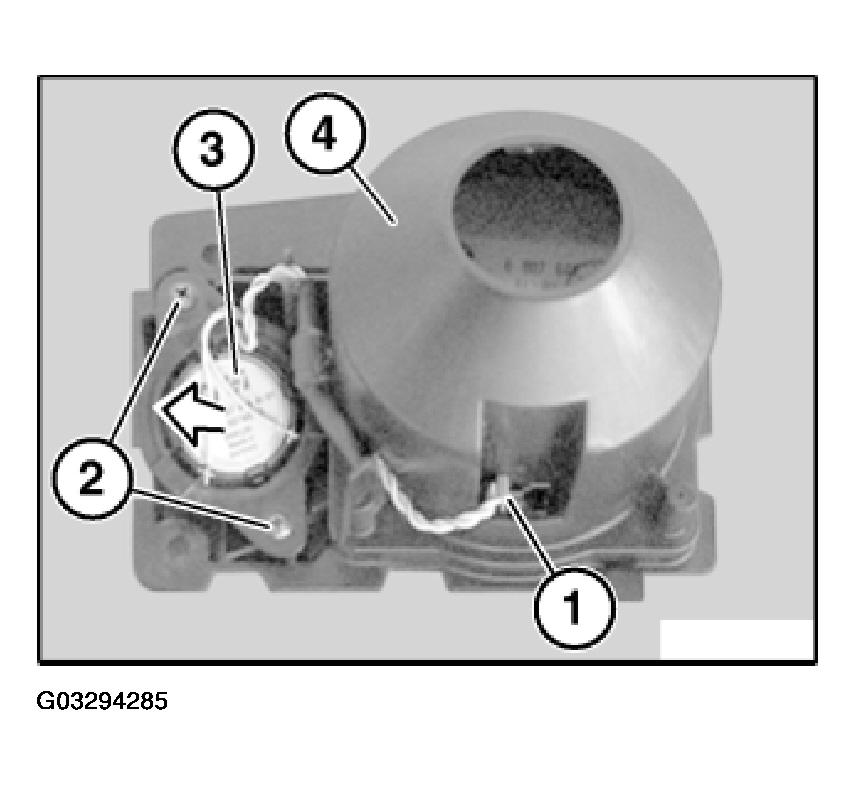

Disconnect plug connection (1).
Loosen screws (2).
Remove treble speaker (3) from speaker box (4).
Installation:
Ensure correct cable routing.
