65 13 188 Removing And Installing/Replacing Rear Mid-Range Speaker (In Rear Shelf)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear speaker box. Refer to 65 13 180 REMOVING AND INSTALLING/REPLACING REAR SPEAKER BOX (IN REAR SHELF) .

Release screws (1).

Disconnect plug connection underneath.

Remove mid-range speaker (2) upwards from speaker box (3).

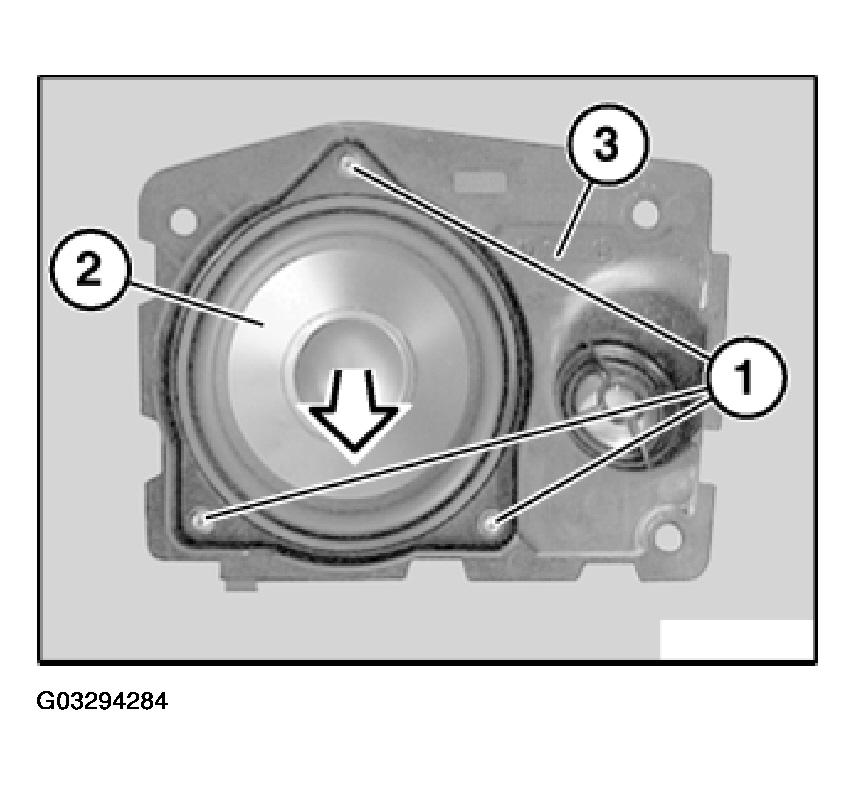

Fig 1: Mid-Range Speaker, Speaker Box, Retaining Screws And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
