65 12 070 Removing And Installing/Replacing Amplifier
WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY .
- Remove luggage compartment wheel arch trim on left. Refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

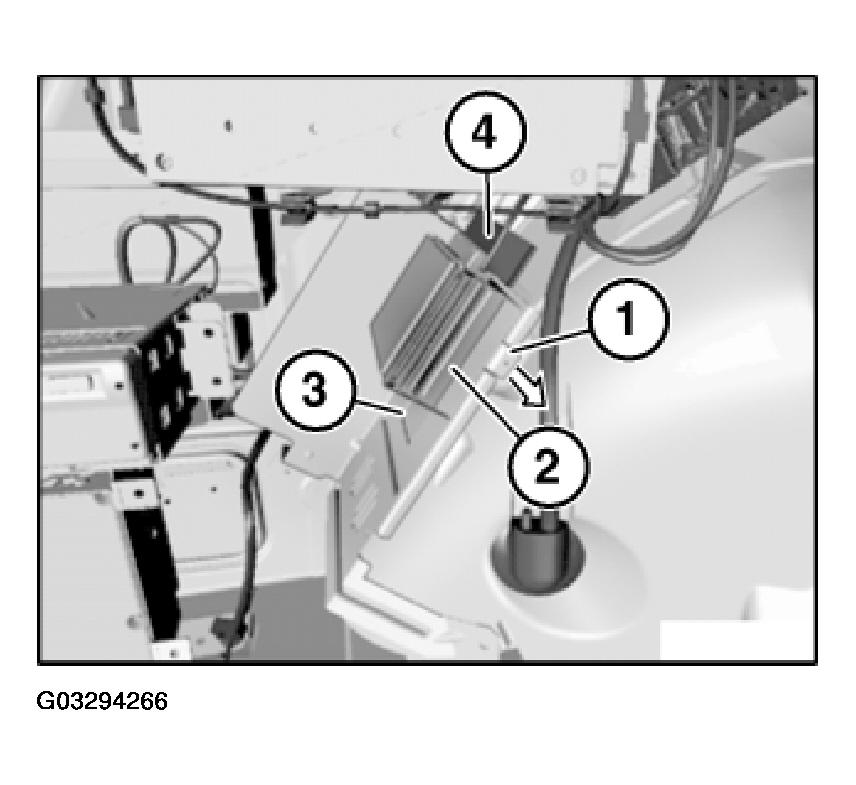

Pull out retaining plate (1) in direction of arrow.
Installation:
Make retaining plate (1) is correctly seated.
Remove amplifier (2) from holder (3).
Unfasten plug connection (4) and disconnect.
