64 22 191 Removing And Installing/Replacing Rear Compartment Fresh-Air Grille (Automatic A/C High)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL .

Special Tools Required:

00 9 341

IMPORTANT: Proceed with care so as to avoid damaging the center armrest and the fresh-air grille.

Build Date Up To 03/2005:

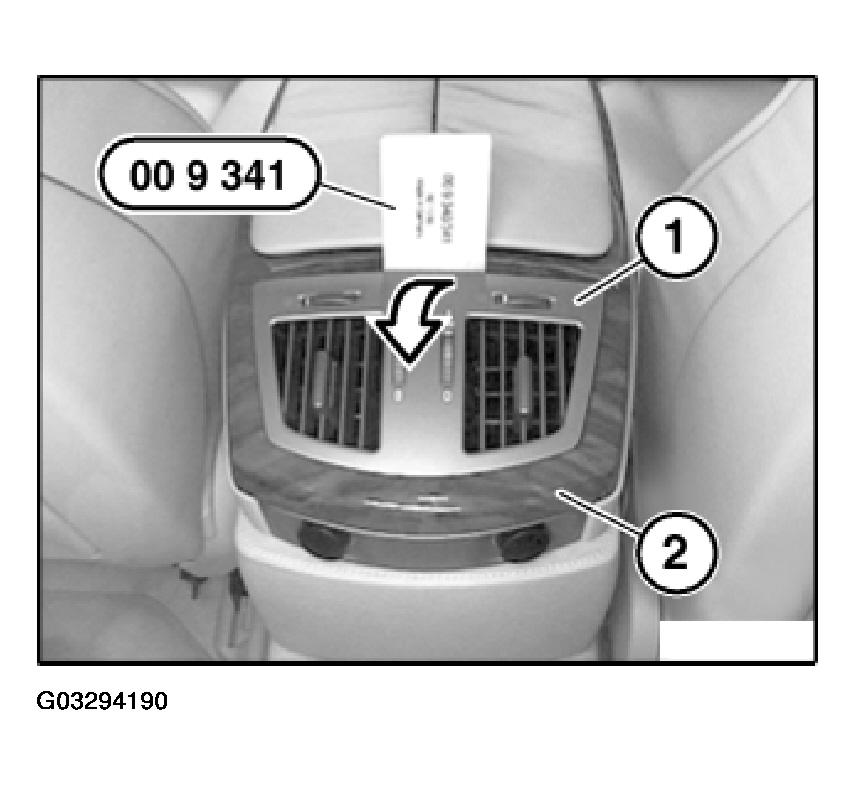

Lever out rear compartment fresh-air grille (1) with special tool 00 9 341 in direction of arrow and pull out of center armrest (2).

Disconnect plug connection.

Fig 1: Removing Rear Compartment Fresh-Air Grille (Up To 03/2005)

Courtesy of BMW OF NORTH AMERICA, INC.

Build Date From 03/2005:

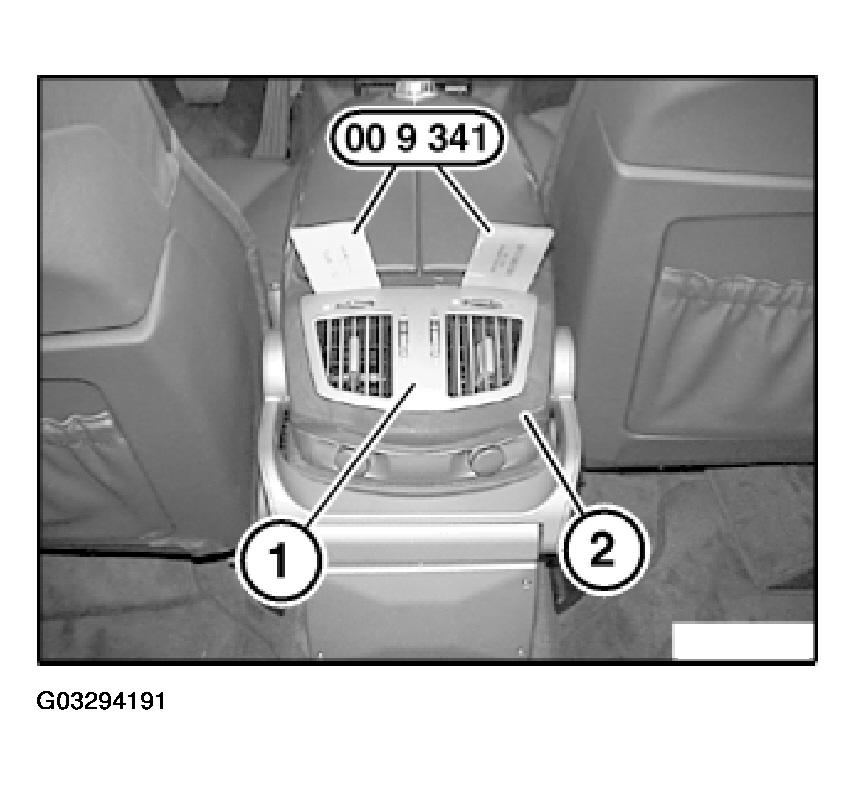

Lever rear compartment fresh-air grille (1) with special tool 00 9 341 out of center armrest wooden trim (2) and pull out.

Fig 2: Removing Rear Compartment Fresh-Air Grille (From 03/2005)

Courtesy of BMW OF NORTH AMERICA, INC.

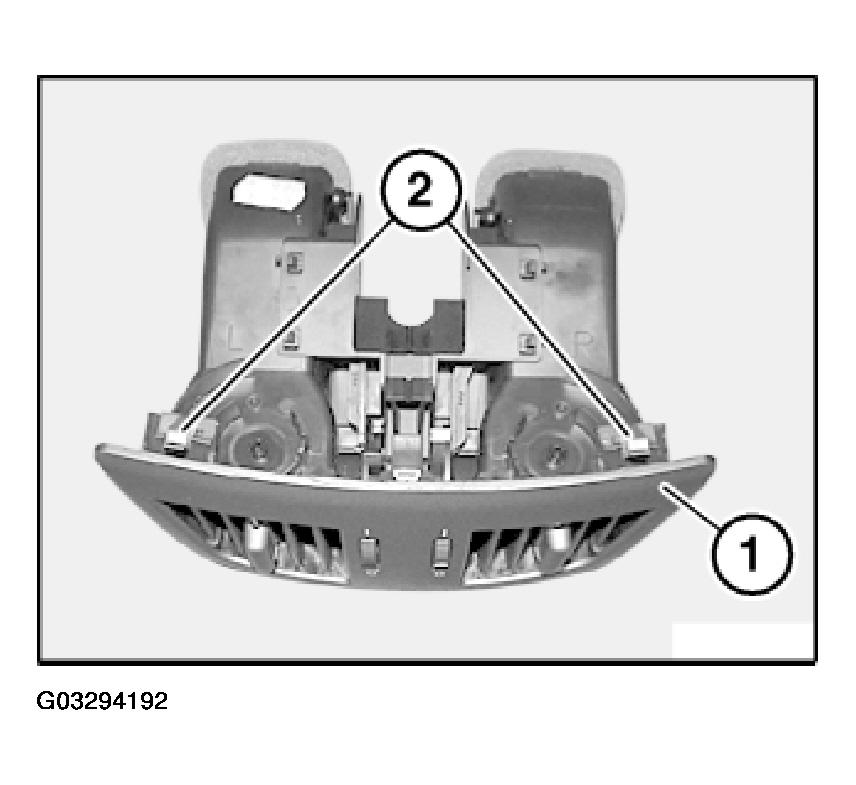

NOTE: For purposes of clarity, graphic shows rear compartment fresh-air grille (1) removed.

Retaining clips (2) must be pressed in to facilitate removal of rear compartment fresh-air grille (1).

Fig 3: Locating Fresh-Air Grille Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
