64 22 162 Removing And Installing/Replacing Center Fresh Air Grille (Automatic A/C High)
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove control display trim. Refer to 51 45... REMOVING AND INSTALLING/REPLACING CONTROL DISPLAY TRIM .
CAUTION:
Proceed with care so as to avoid damaging the fresh air grill.

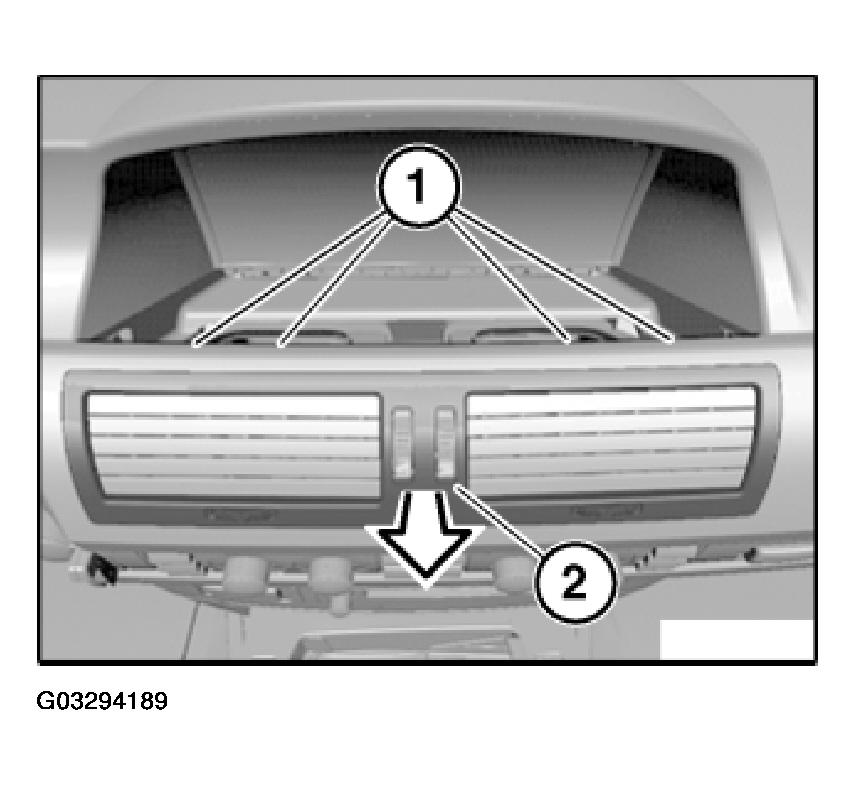

Release screws (1).
Press out center fresh air grill (2) from inside in direction of arrow.
Unlock associated plug connections and disconnect.
Remove center fresh air grill (2).
Installation:
Make sure electric leads are correctly routed.
