64 11 918 Removing And Installing/Replacing Temperature Sensor For Rear A/C System (Left Or Right)
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove operating unit for rear A/C system. Refer to 64 11 386 REMOVING AND INSTALLING LEFT OPERATING UNIT FOR REAR A/C SYSTEM .

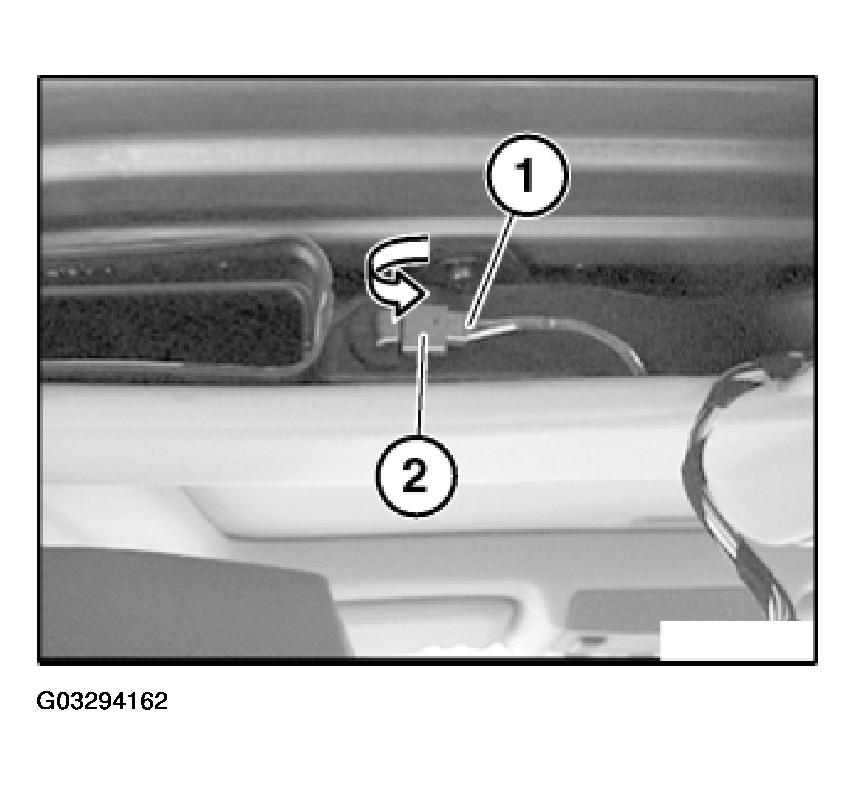

Disconnect plug connection (1).
Turn temperature sensor for rear A/C system (2) through approx. 90° in direction of arrow and pull out.
