64 11 913 Removing And Installing/Replacing Temperature Sensor For Heating Unit (Automatic A/C High)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for instrument panel, bottom right. Refer to 51 45 181 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM AT BOTTOM RIGHT .

Remove center console trim at front right. Refer to 51 16 195 REMOVING AND INSTALLING CENTER ARMREST (FRONT) .

Remove sound insulation for A/C unit at rear right.

Disconnect plug connection (1).

Pull out temperature sensor (2) in direction of arrow.

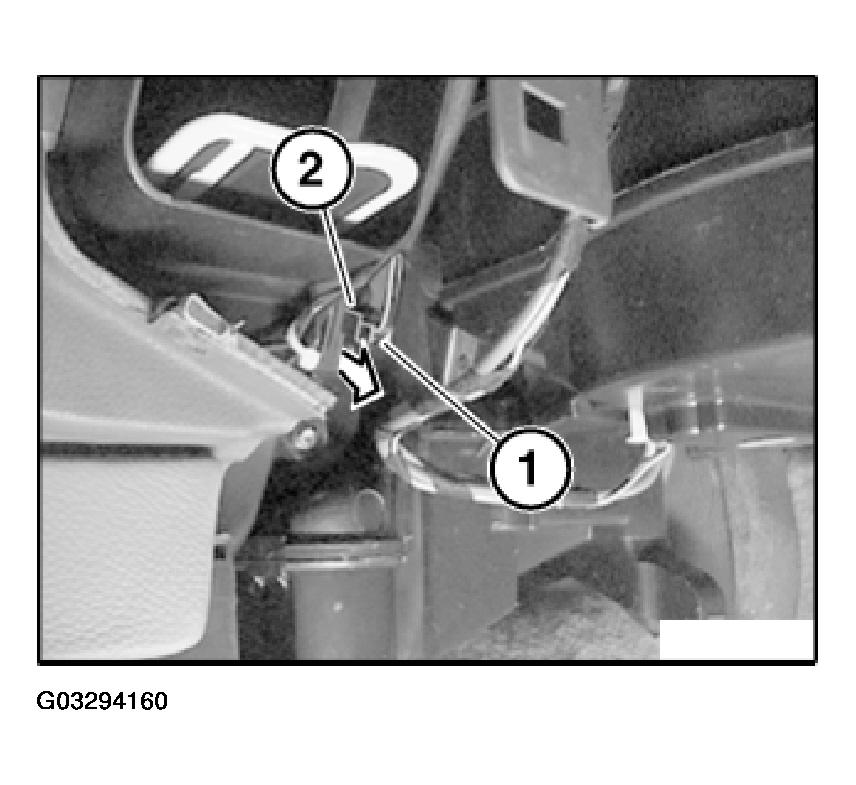

Fig 1: View Of Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When installing temperature sensor, pay attention to guide (1) in mount (2).

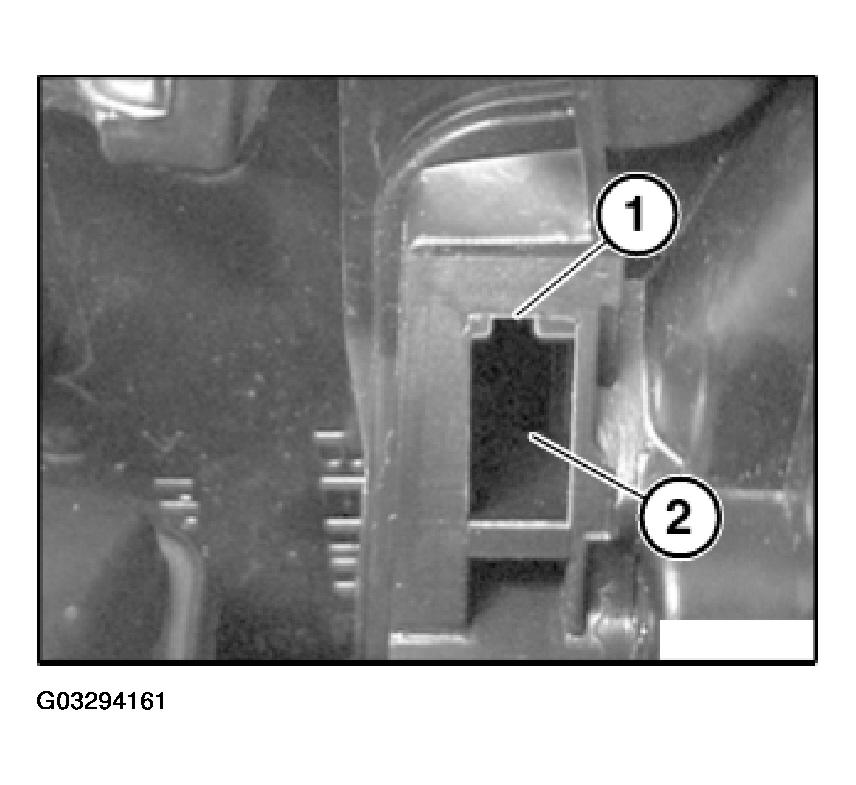

Fig 2: Locating Guide In Temperature Sensor Mount

Courtesy of BMW OF NORTH AMERICA, INC.
