64 11 842 Replacing Servodrive For Right Footwell Flap (Automatic A/C High)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove function carrier on trim for instrument panel. Refer to 51 16 170 REMOVING AND INSTALLING FUNCTION CARRIER ON PANEL FOR INSTRUMENT PANEL .

Unclip cover (1) at both retaining hooks (2) and remove in direction of arrow.

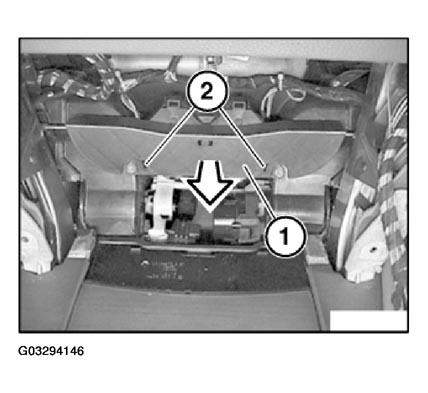

Fig 1: Identifying Retaining Hooks On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip both linkages (2) in direction of arrow.

Release screws (1).

Pull back holder (3) in direction of arrow and invert.

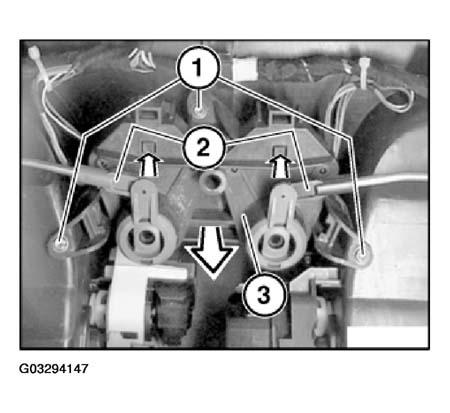

Fig 2: View Of Linkages

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Press lock (2) and unclip servodrive (3) in direction of arrow.

NOTE: If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.

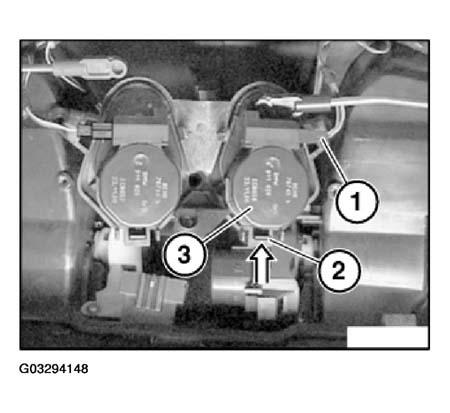

Fig 3: Removing Servodrive For Right Footwell Flap

Courtesy of BMW OF NORTH AMERICA, INC.
