64 11 816 Replacing Servodrive For Left Cold Air Duct (Automatic A/C High)
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove function carrier on trim for instrument carrier. Refer to 51 16 170 REMOVING AND INSTALLING FUNCTION CARRIER ON PANEL FOR INSTRUMENT PANEL .

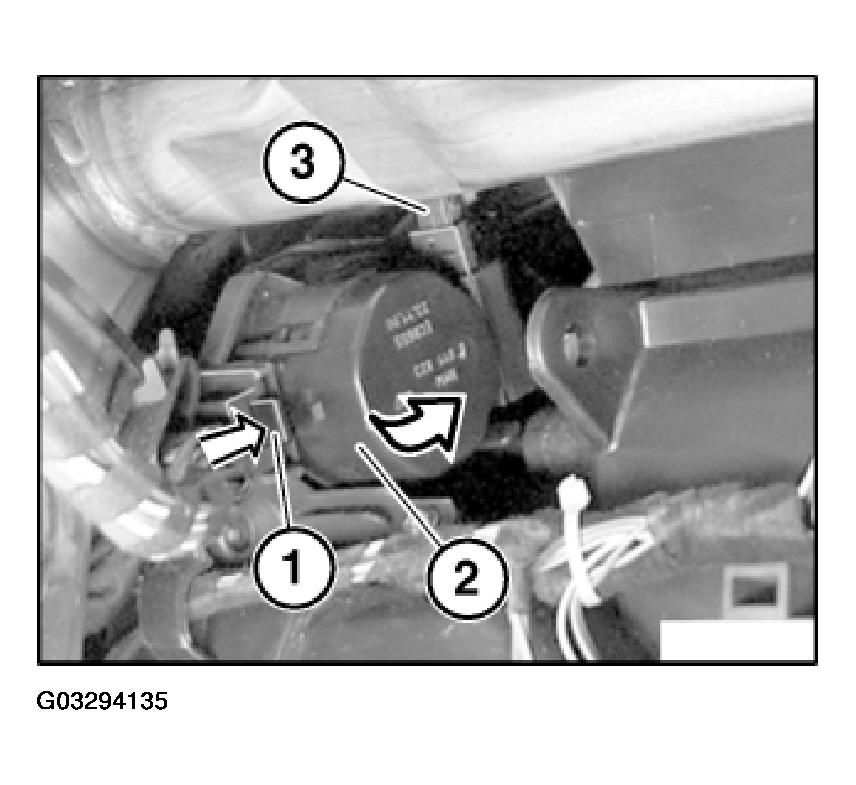

Press lock (1) and unclip servodrive (2) in direction of arrow.
Disconnect plug connection (3) and remove servodrive (2).
Installation:
If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
