64 11 213 Removing And Installing/Replacing Fan For Heater/Air Conditioner (Automatic A/C High)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove fan cover. Refer to 64 11 225 REPLACING CONTROLLER FOR HEATER - A/C SYSTEM FAN (AUTOMATIC A/C HIGH) .

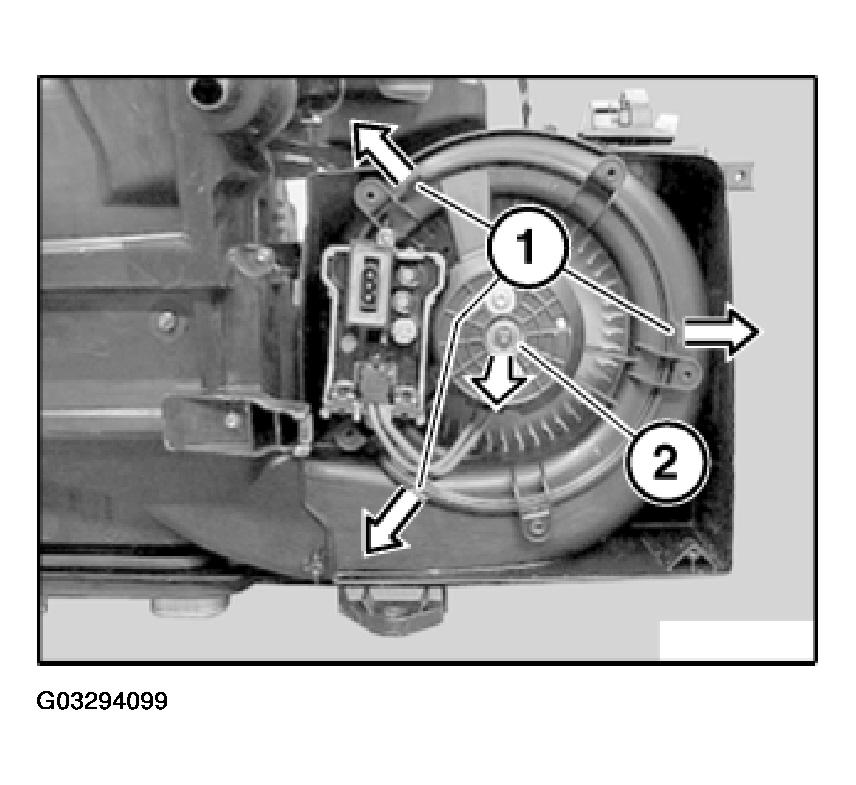

Unlock catches (1) and remove fan for heater/air conditioner (2) in direction of arrow.

NOTE: Controller for heater - A/C system fan fitted.

Replacement:

Remove controller for heater - A/C system. Refer to 64 11 225 REPLACING CONTROLLER FOR HEATER - A/C SYSTEM FAN (AUTOMATIC A/C HIGH) .

Fig 1: Unlocking Fan Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

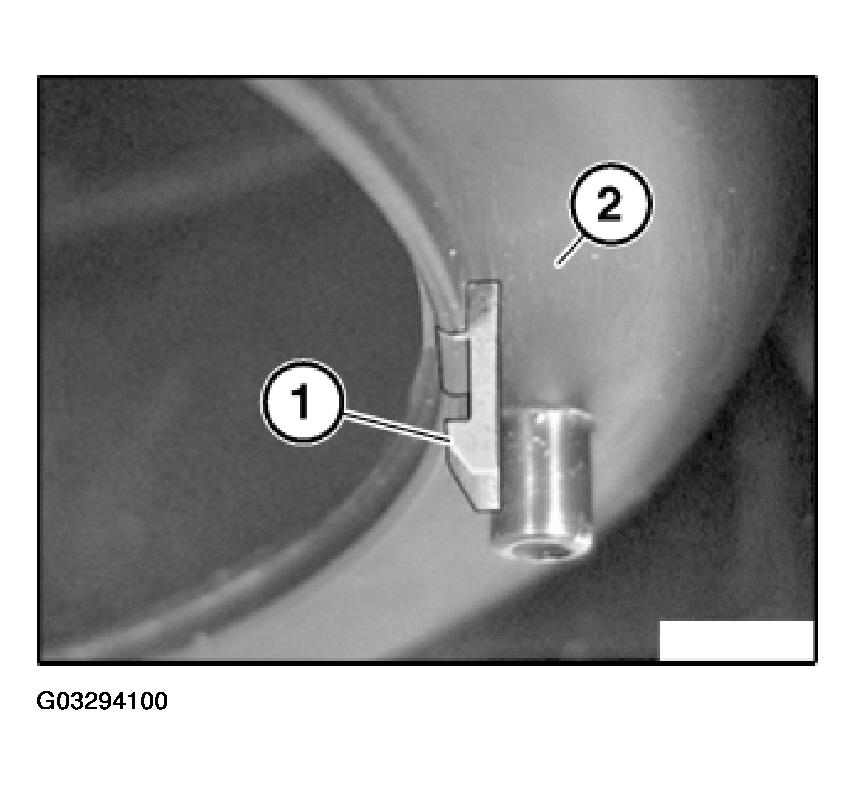

Retaining hooks (1) of fan housing (2) must not be damaged and must be fully engaged.

Fig 2: Identifying Retaining Hooks Of Fan Housing

Courtesy of BMW OF NORTH AMERICA, INC.
