64 53 518 Replacing Desiccant Insert For A/C System (Condenser Removed)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with warnings relating to working on A/C systems. Refer to 64 52... NOTES/INSTRUCTIONS ON WORKING ON AIR-CONDITIONING SYSTEMS .

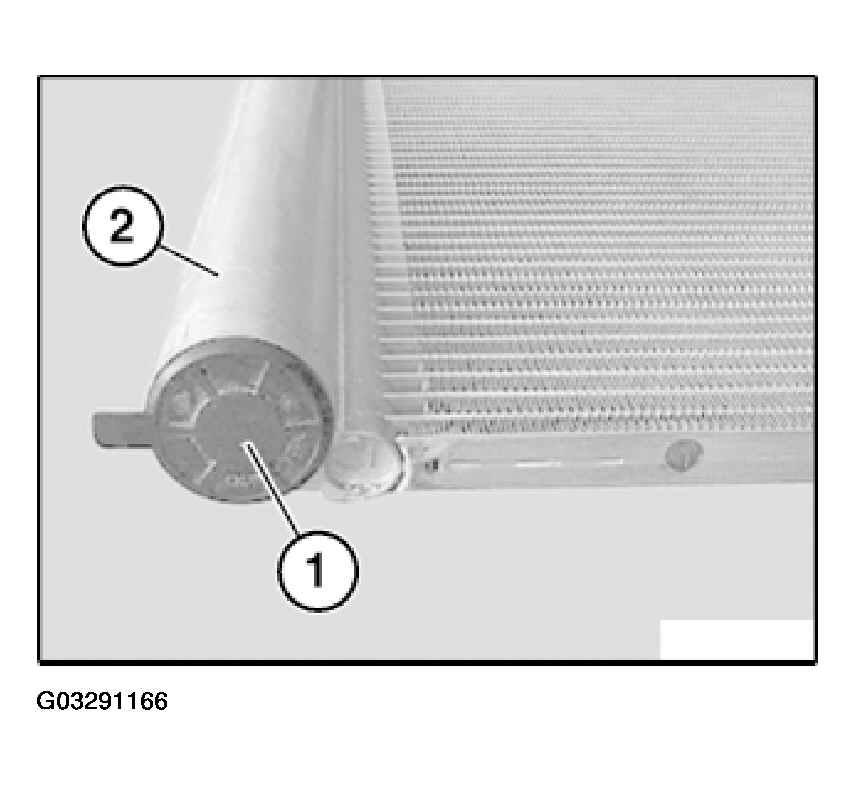

Remove protective cap (1) from condenser for A/C system (2).

Fig 1: Removing Protective Cap From Condenser

G03291166

Courtesy of BMW OF NORTH AMERICA, INC.

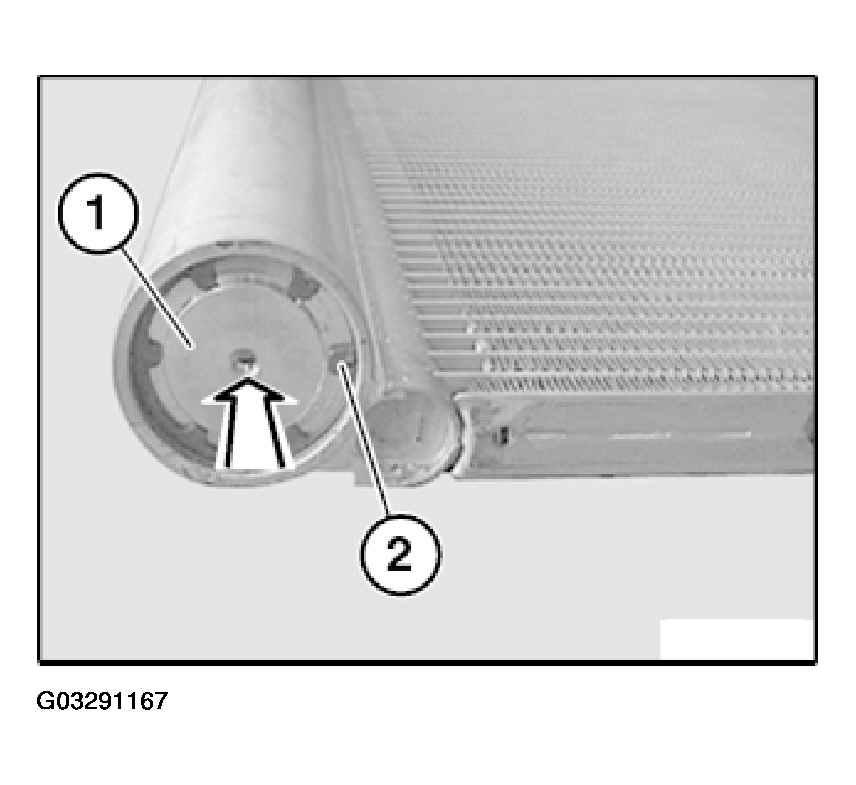

Press sealing cap (1) inwards and remove circlip (2).

Fig 2: Removing Circlip

G03291167

Courtesy of BMW OF NORTH AMERICA, INC.

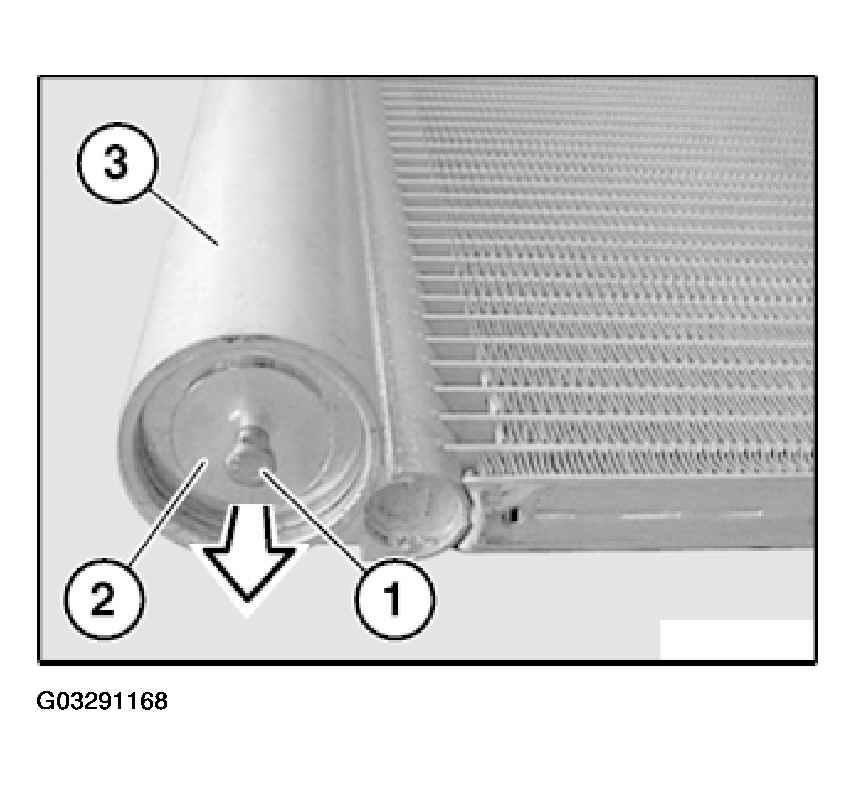

Remove protective cap (2) from condenser for A/C system (3) with aid of an inserted screw (1).

Fig 3: Removing Protective Cap From Condenser

G03291168

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

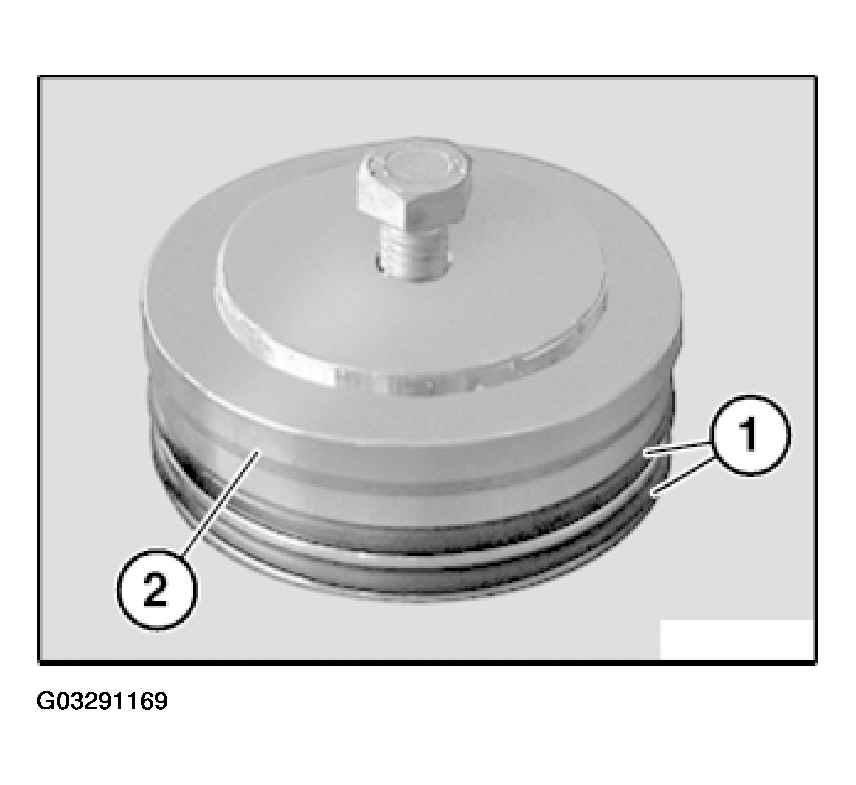

Replace sealing rings (1) of sealing cap (2) and coat with suitable refrigerant oil.

Fig 4: Replacing Sealing Rings Of Sealing Cap

G03291169

Courtesy of BMW OF NORTH AMERICA, INC.

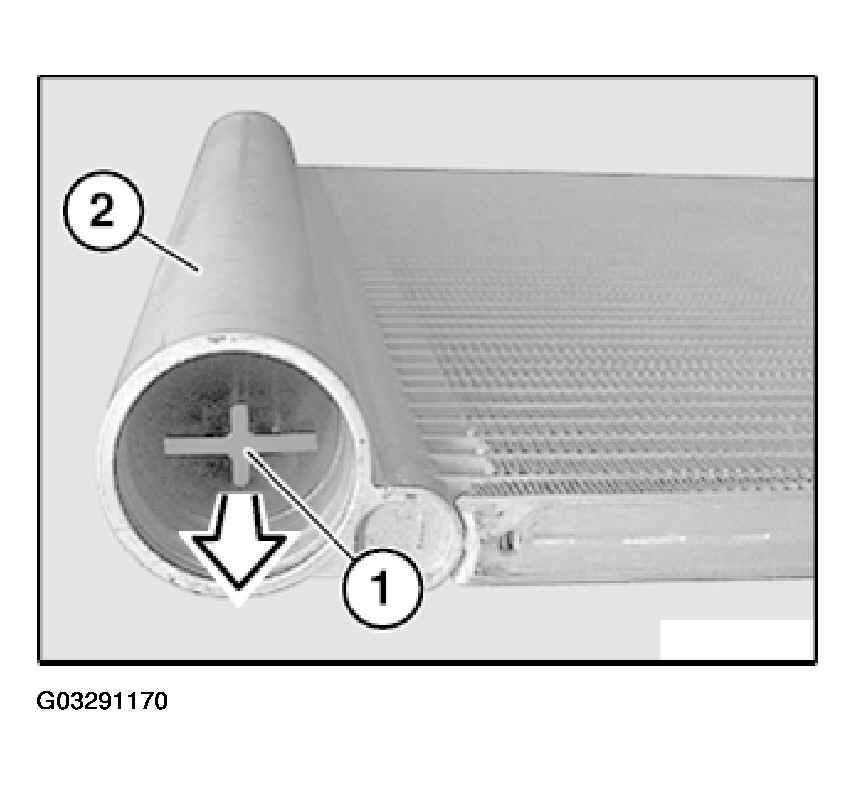

Remove desiccant insert for A/C system (1) in direction of arrow from condenser for A/C system (2).

Fig 5: Removing Desiccant Insert

G03291170

Courtesy of BMW OF NORTH AMERICA, INC.
