64 53 517 Replacing Desiccant Insert For A/C System (Automatic A/C High)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Avoid contact with refrigerant and refrigerant oil. Follow safety instructions for handling refrigerant R 134a. Refer to 64 50... SAFETY INSTRUCTIONS FOR HANDLING REFRIGERANT R 134A . Follow safety instructions for handling refrigerant oil. Refer to 64 50... SAFETY PRECAUTIONS WHEN HANDLING REFRIGERANT OIL (FOR REFRIGERANT R 134A) .

NOTE: The time value given for this work operation does not include drawing off, evacuating and filling the A/C system!

Drain off air conditioner. Refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .

IMPORTANT: Risk of damage! Restart engine only when A/C system has been correctly filled.

Necessary Preliminary Tasks:

Remove condenser for A/C system. Refer to 64 53 551 REMOVING AND INSTALLING/REPLACING CONDENSER FOR A/C SYSTEM (AUTOMATIC A/C HIGH) .

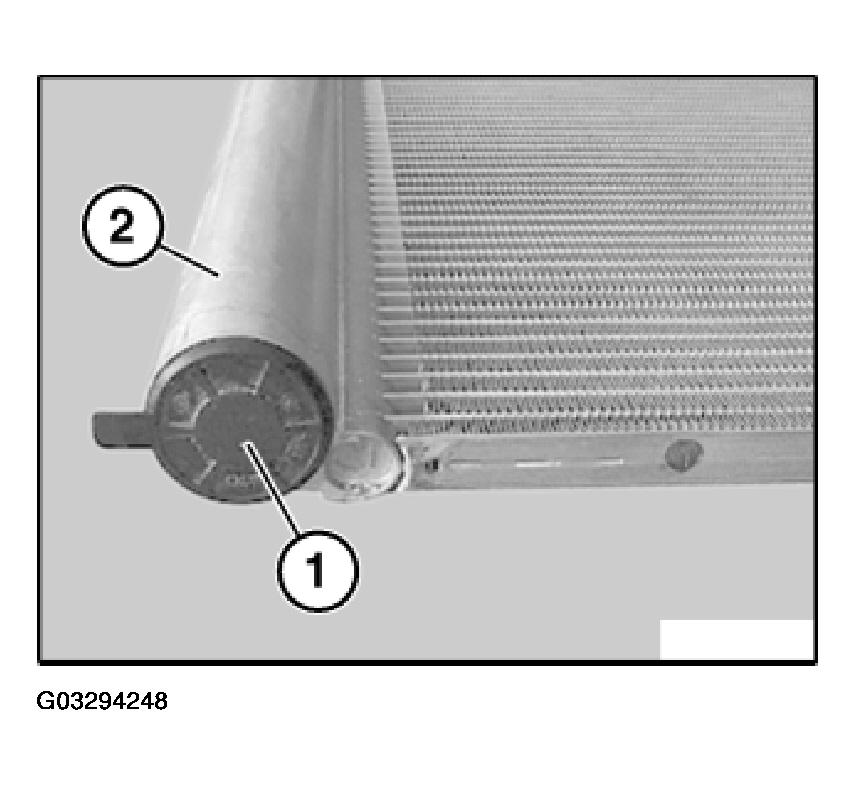

Remove cover cap (1) from condenser (2).

Fig 1: Removing Condenser Cover Cap

G03294248

Courtesy of BMW OF NORTH AMERICA, INC.

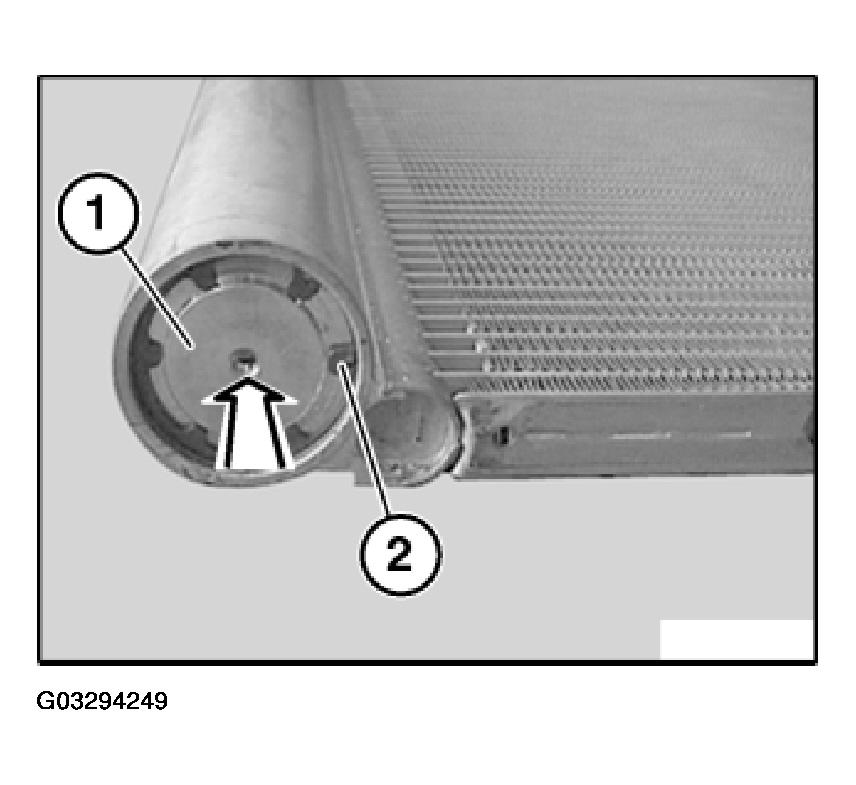

Press sealing cap (1) inwards and remove circlip (2).

Fig 2: View Of Sealing Cap

G03294249

Courtesy of BMW OF NORTH AMERICA, INC.

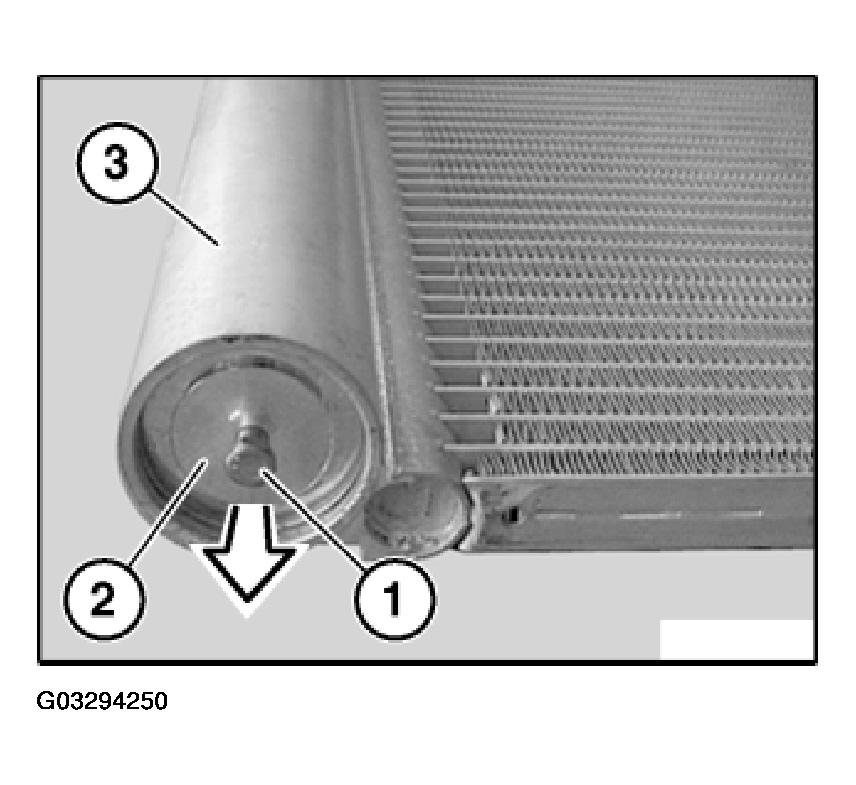

With assistance of a screwed-in screw (1), remove sealing cap (2) from condenser (3).

Fig 3: Removing Sealing Cap From Condenser

G03294250

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

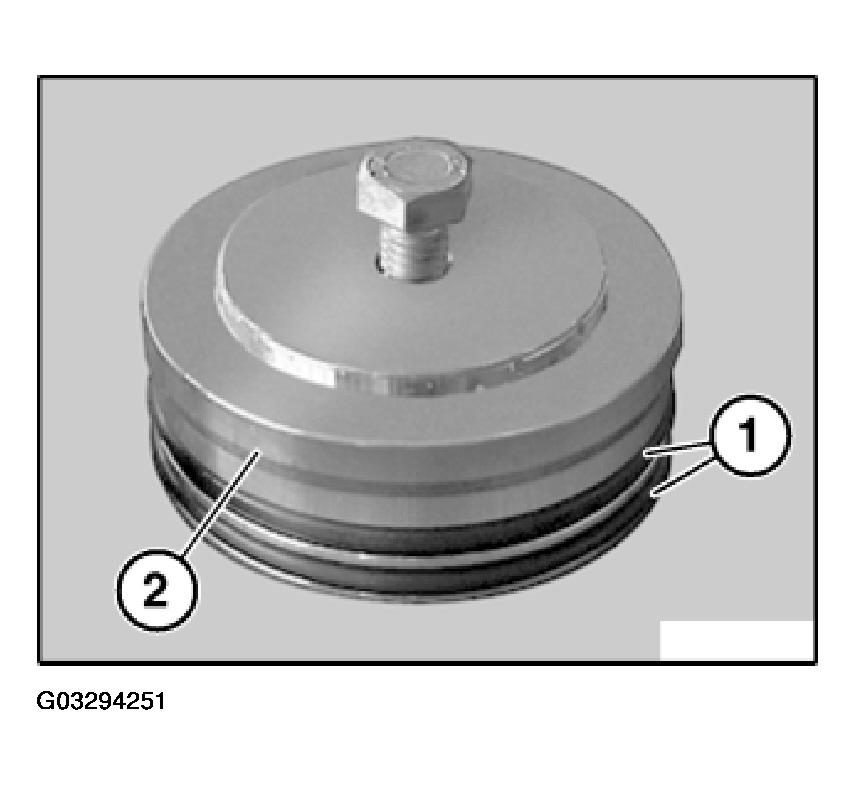

Replace sealing rings (1) of sealing cap (2) and coat with refrigerant oil.

Fig 4: Identifying Sealing Rings

G03294251

Courtesy of BMW OF NORTH AMERICA, INC.

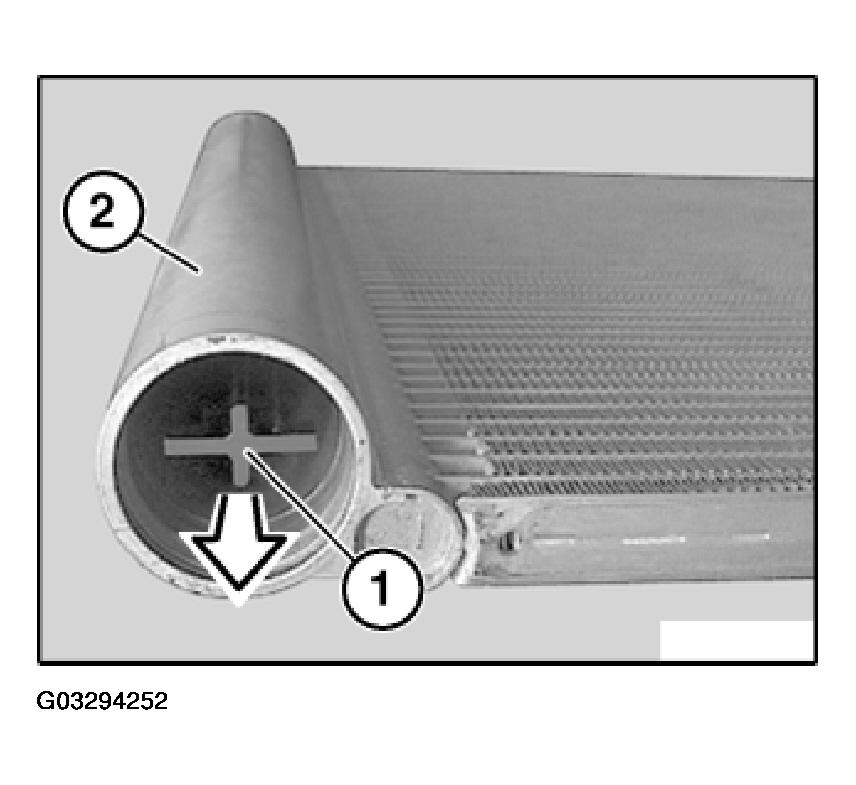

Withdraw desiccant insert (1) in direction of arrow from capacitor (2).

Fig 5: Removing Desiccant Insert From Capacitor

G03294252

Courtesy of BMW OF NORTH AMERICA, INC.
