63 31 080 Removing And Installing/Replacing Luggage Compartment Light

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Open luggage compartment lid.

Lever out luggage compartment lamp (1) in direction of arrow.

Disconnect plug connection underneath and remove luggage compartment lamp (1).

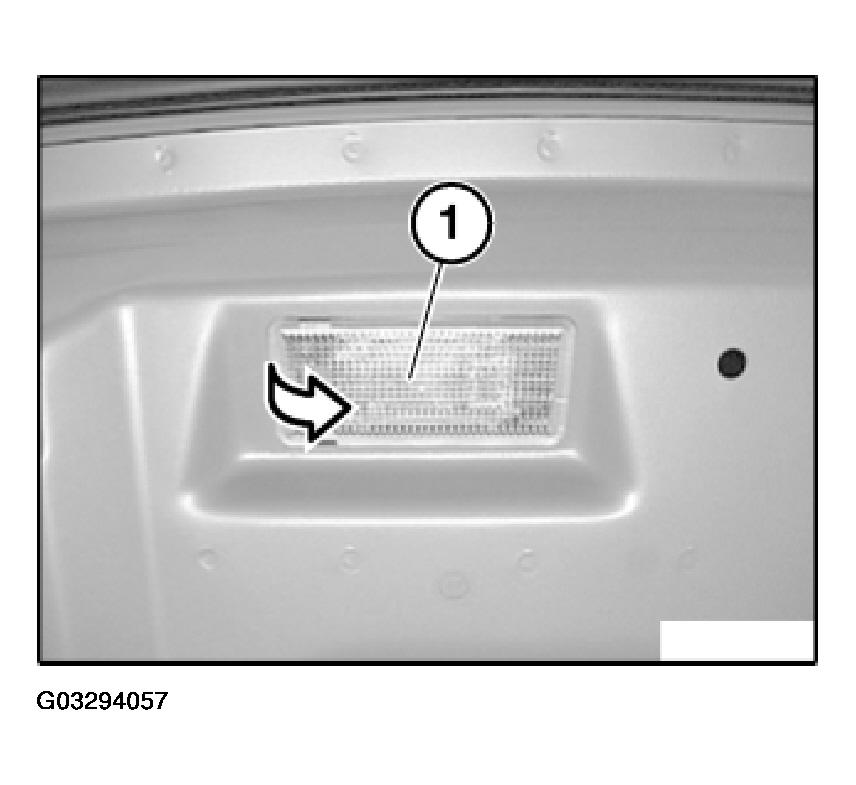

Fig 1: Luggage Compartment Lamp And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Replacement:

If necessary, remove bulb.
