63 31 023 Removing And Installing/Replacing Footwell Light (On Floor Trim Panel, Rear)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see HEATING AND AIR CONDITIONING - SPECIAL TOOLS .

Special Tools Required:

64 1 020

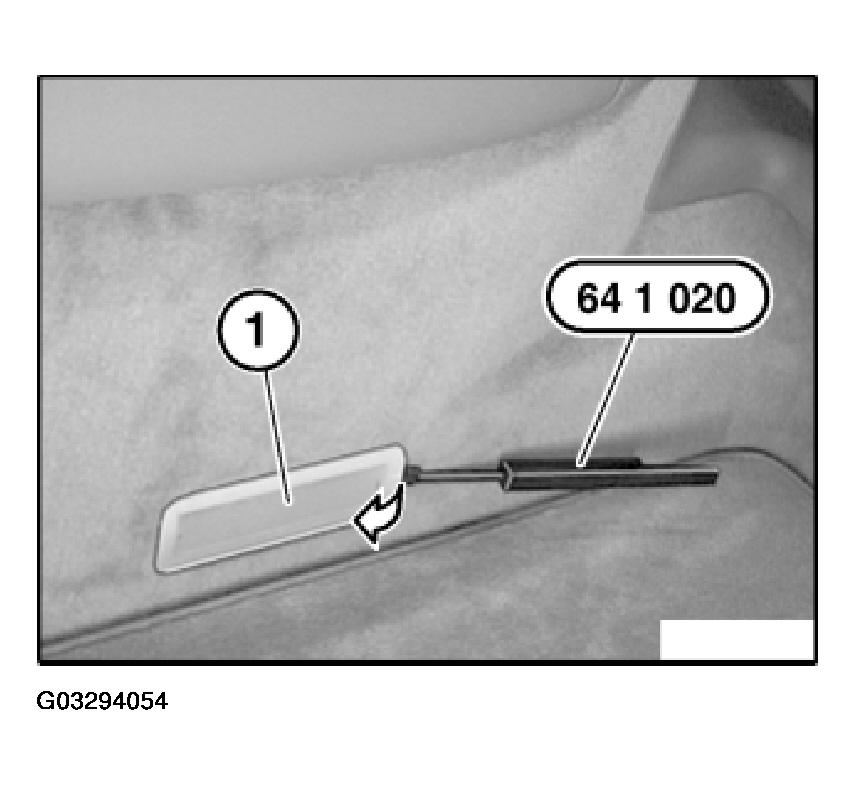

Using special tool 64 1 020, lever out lens cover (1) in direction of arrow and remove.

Fig 1: Lens Cover And Special Tool (64 1 020)

Courtesy of BMW OF NORTH AMERICA, INC.

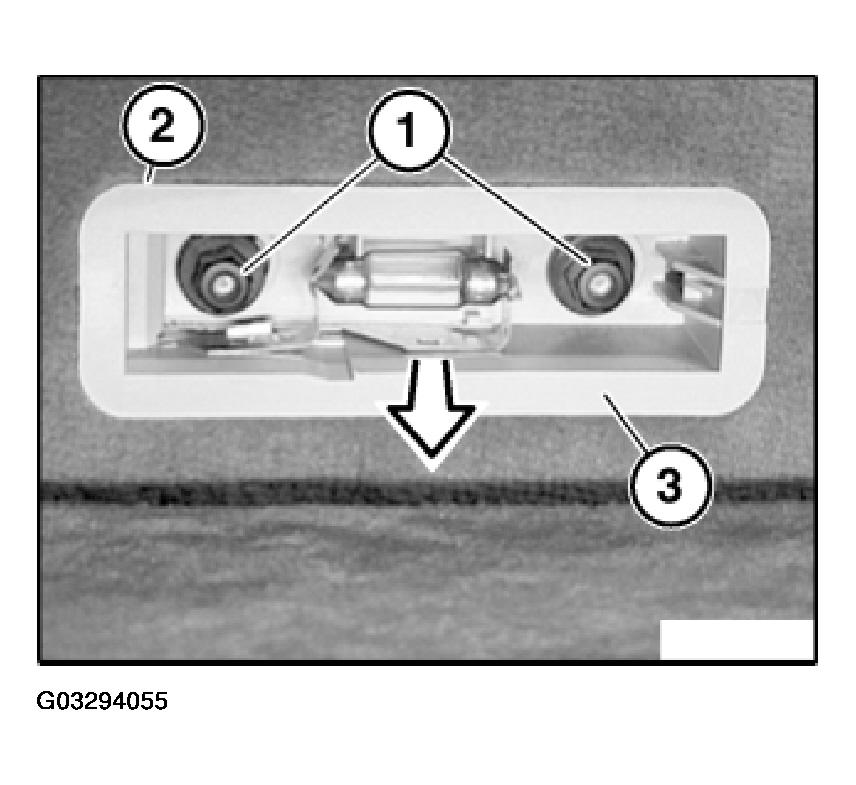

Unscrew nuts (1).

Pull out footwell light (3) in direction of arrow.

Disconnect plug connection (2) behind and remove footwell light (3).

Fig 2: Plug Connection, Nuts, Footwell Light And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Replacement:

If necessary, remove bulb.
