63 31 000 Removing And Installing/Replacing Complete Ceiling Light (Front)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Lever out complete ceiling light (1) at rear in direction of arrow.

Disconnect plug connection underneath and remove complete ceiling light (1).

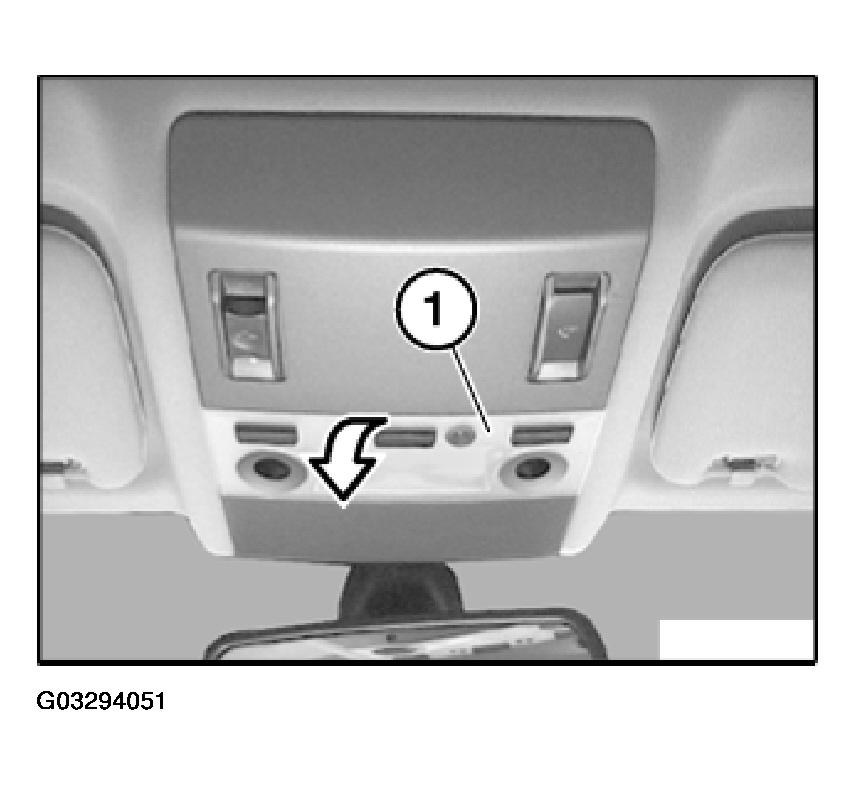

Fig 1: Complete Ceiling Light And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Replacement:

If necessary, remove bulbs.
