63 13 200 Removing And Installing/Replacing Front Left Or Right Auxiliary Turn Signal Lamp

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Slide front auxiliary turn signal lamp (1) towards rear and fold out in direction of arrow.

Pull out additional front turn signal lamp (1) up to bulb holder, turn through approx. 90° and feed out.

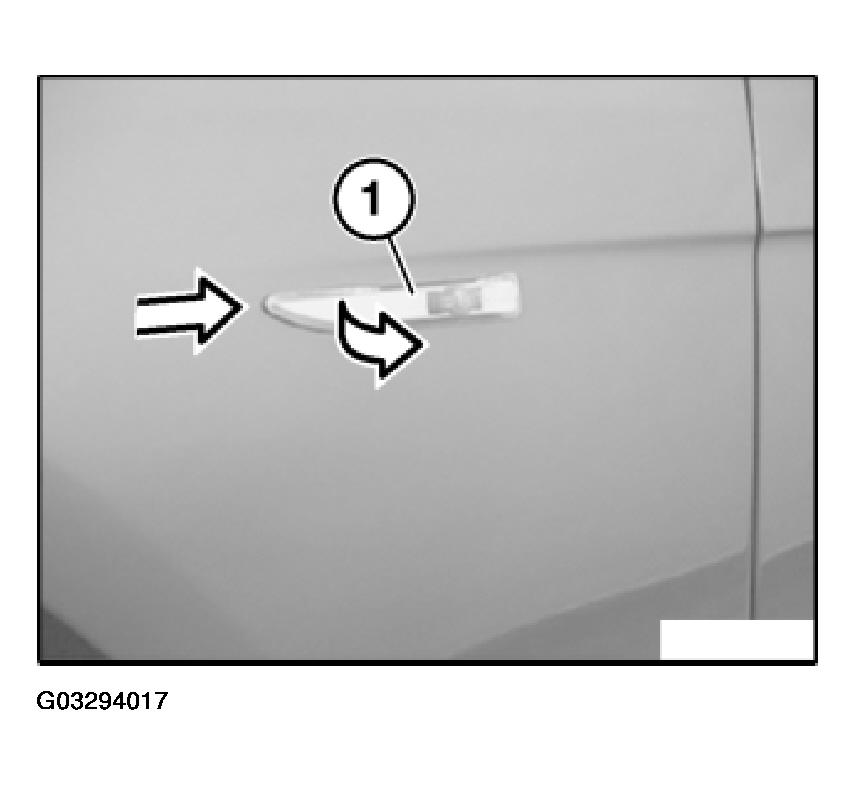

Fig 1: Front Turn Auxiliary Signal Lamp And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove additional front turn signal lamp (2).

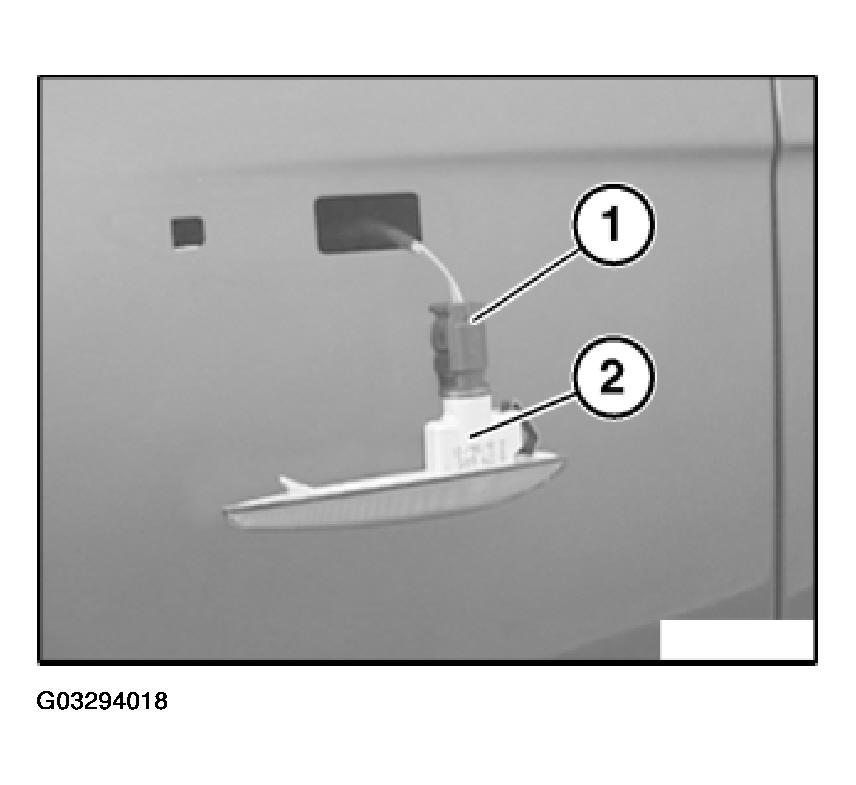

Fig 2: Plug Connection And Front Turn Signal Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, remove bulbs.
