Removal & Installation
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.
- Procedures are identical with those of replacing spring strut shock absorber. See COIL SPRING & SHOCK ABSORBER .

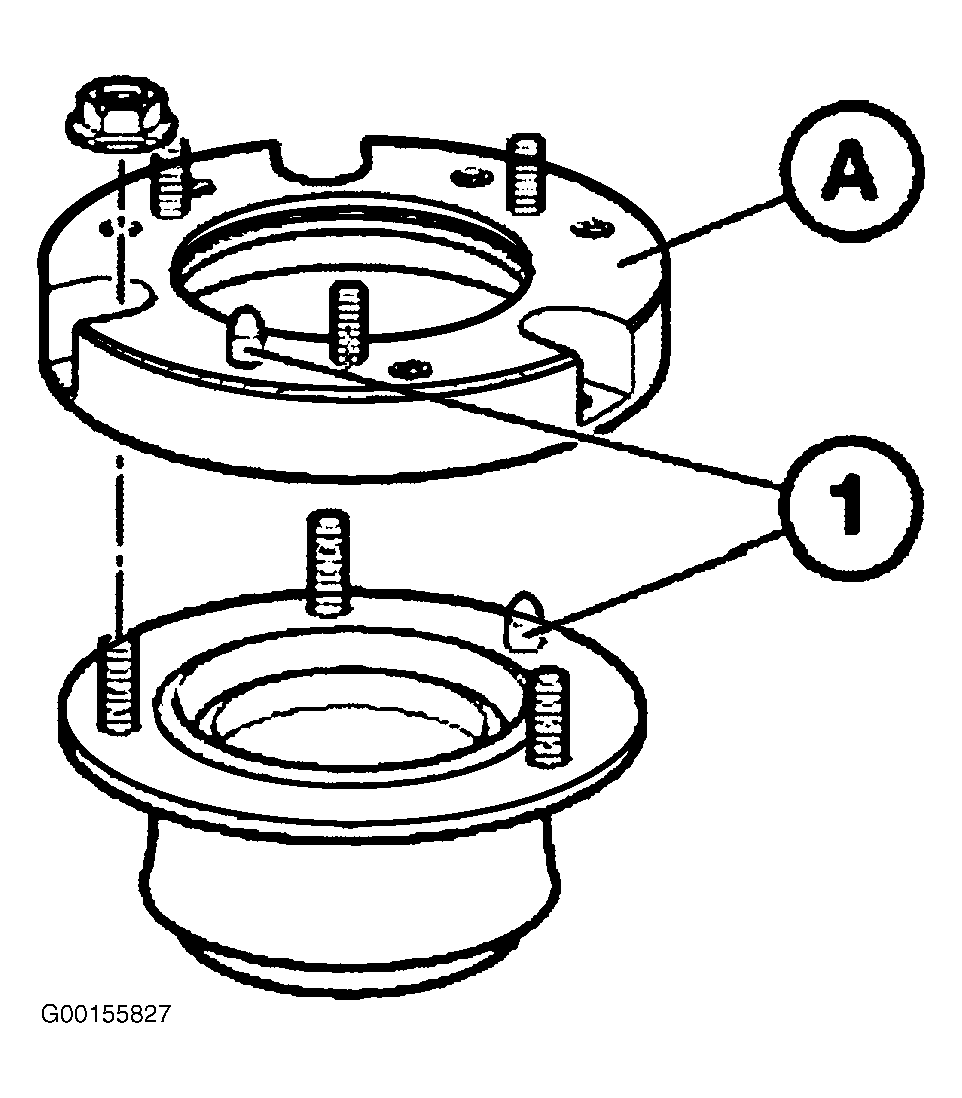

- Spacer ring (A) is fitted in vehicles with "rough road package" version. Centering pin (1) of support bearing must rest on bore of adapter (A). See Fig 1.
NOTE:
If a spring strut support bearing without centering pin was fitted, the centering pin of the new spring strut support bearing must be driven out.
