61 33 060 Removing And Installing/Replacing Left Fanfare Horn

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Fig 1: Horn Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2) and remove cover (1).

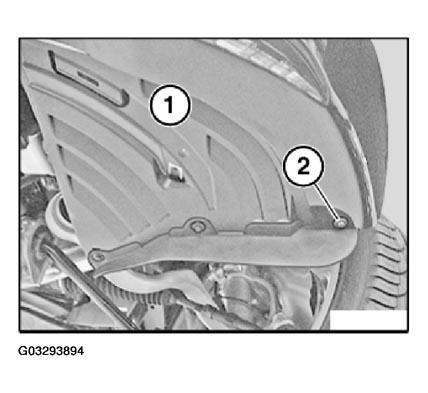

Fig 2: Horn Cover And Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (3) and disconnect.

Release nuts (2) and remove fanfare horn (1).

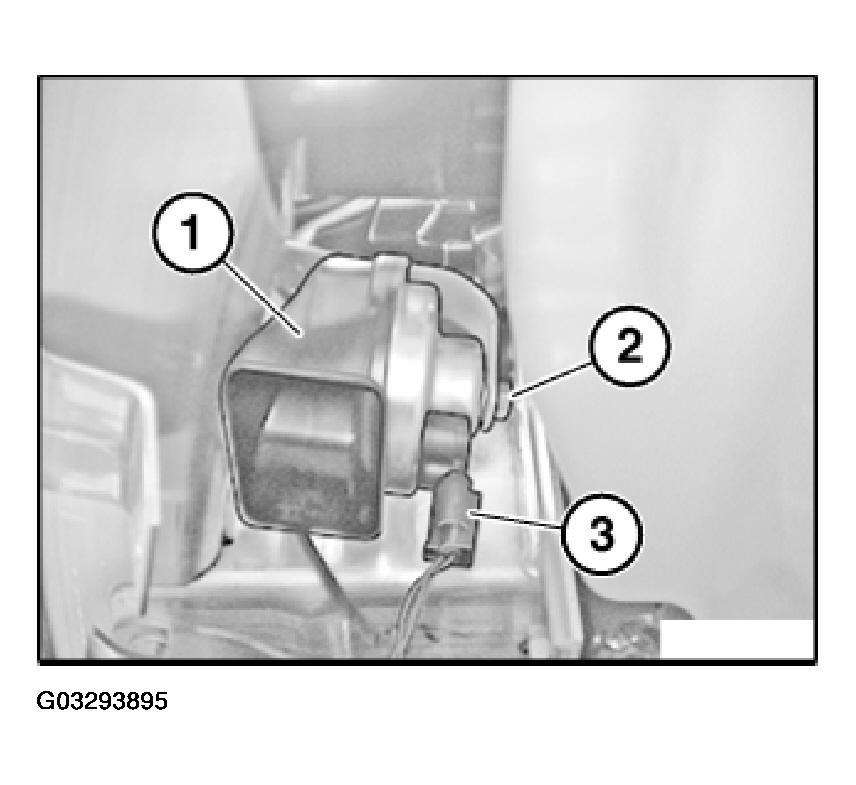

Fig 3: Fanfare Horn, Nuts And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
