61 21 010 Removing And Installing Battery
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe safety instructions for handling vehicle battery. Refer to 61 00... SAFETY INSTRUCTIONS FOR HANDLING VEHICLE BATTERY .
Necessary Preliminary Tasks:
- Remove flap in luggage compartment panel on right. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .
- Remove battery cover. Refer to 61 21... REMOVING AND INSTALLING/REPLACING BATTERY COVER .
- Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
- Remove spare wheel. See 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL

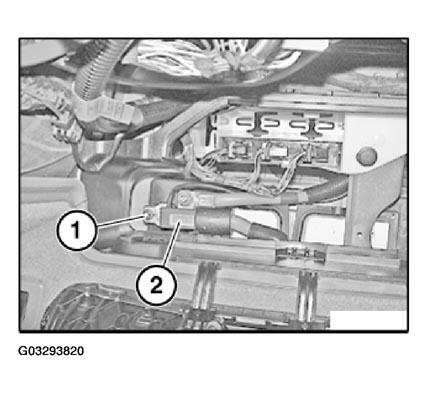

Unscrew nut (1).
Tightening torque, refer to 61 21 1AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .
IMPORTANT:
Do not under any circumstances pull/lever safety battery terminal off by force.
Detach safety battery terminal (2) towards top, lay to one side and secure.

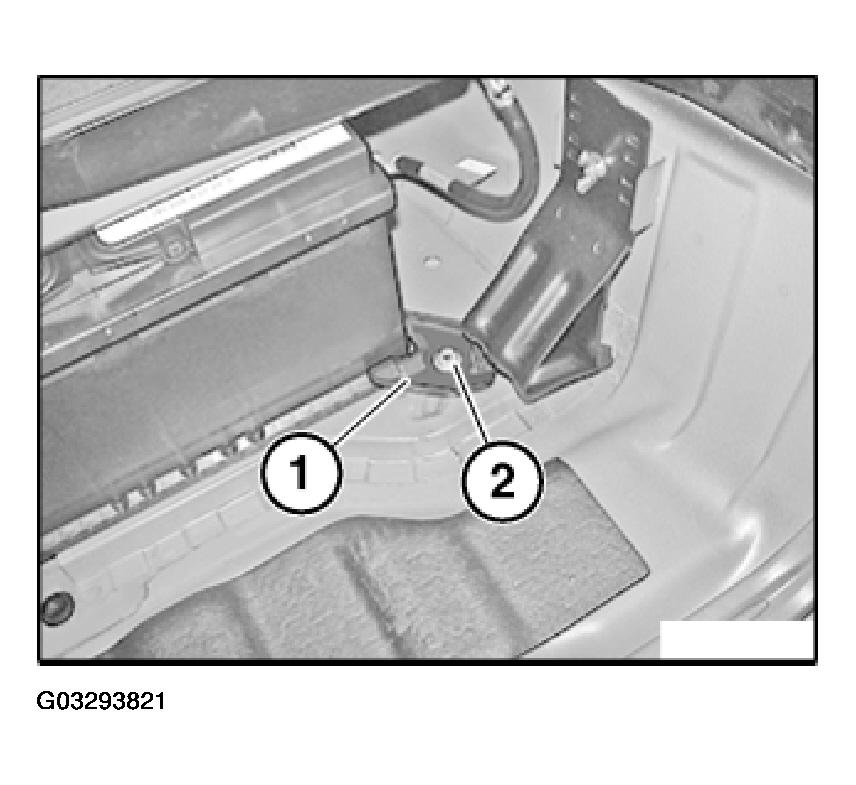

Release screw (2) and remove bracket (1).
Detach vent hose from battery.
Pull out battery.
Installation:
Make sure battery is correctly seated in mounting.
