54 12 497 Removing And Installing/Replacing Draft Deflector For Glass Slide/Tilt Sunroof

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Open glass sunroof lid.

Lever out springs (1) on left/right.

Pull draft deflector (2) towards rear out of mounting (3).

Installation:

Carry out function check.

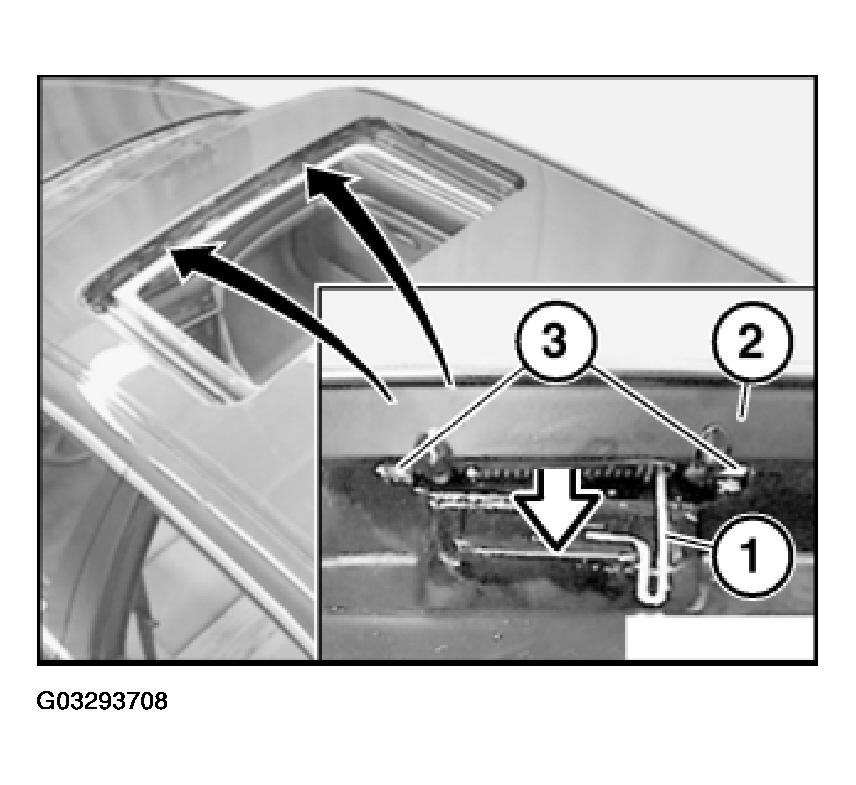

Fig 1: Draft Deflector, Springs, Mounting And Removal Direction

G03293708

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert retaining pins (1) of draft deflector (2) into mountings (4).

Spring (3) must snap into place correctly.

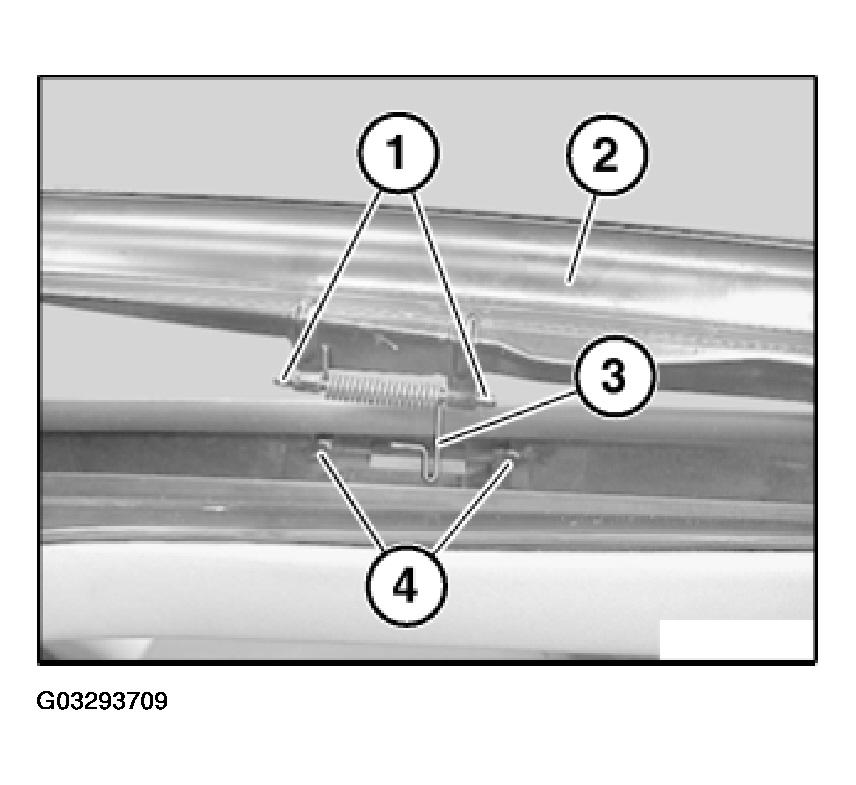

Fig 2: Draft Deflector, Retaining Pins, Mountings And Springs

G03293709

Courtesy of BMW OF NORTH AMERICA, INC.

Position draft deflector (1) vertically and pull together with levers (2) on left/right upwards out of mounts (3).

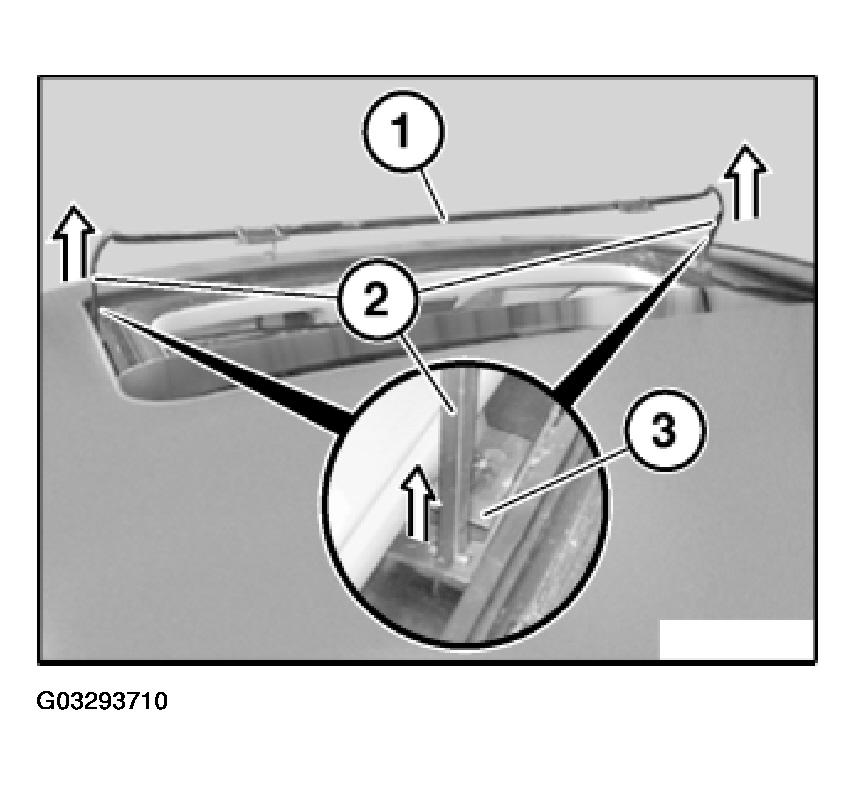

Fig 3: Draft Deflector, Levers, Mounts And Removal Direction

G03293710

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Turn lever (1) until lock (3) is flush with opening (2) and feed lever (1) out of draft deflector (4).

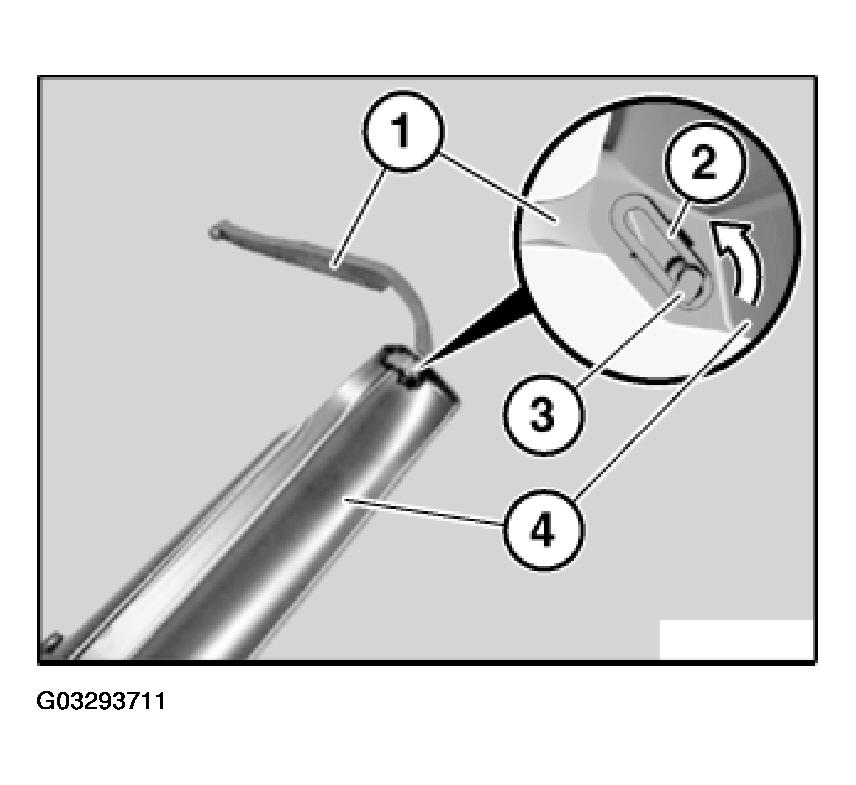

Fig 4: Draft Deflector, Lever, Lock, Opening And Installation Direction

G03293711

Courtesy of BMW OF NORTH AMERICA, INC.
