54 12 117 Replacing Seal For Glass Slide/Tilt Sunroof Lid
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Follow repair instructions for bonded seals on slide/tilt sunroof. Refer to 54 0 ... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .
- Open glass lid completely.

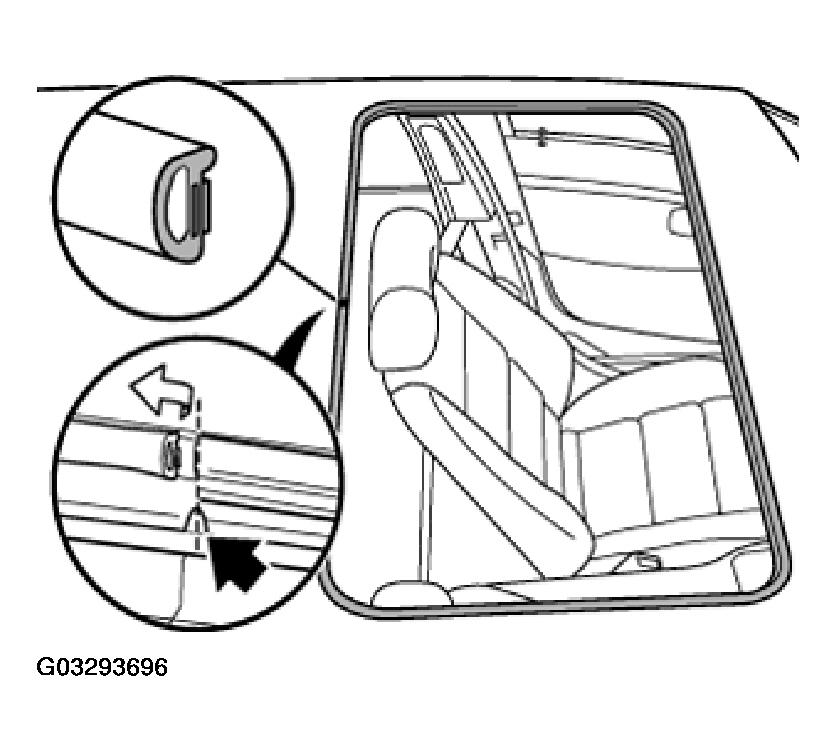

Begin removal at contact edge (rear center):
- Peel off rubber seal.
- Clean bonded area.
Installation:
Also begin at specified point of contact edge for installation:
- Stick on rubber seal in sections.
- Establish seal joint.
- Press on seal.
