52 25 450 Replacing Padding For Rear Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SEATS - SPECIAL TOOLS .

Special Tools Required:

52 0 050

Necessary Preliminary Tasks:

Remove padding for rear seat. Refer to 52 25 002 REMOVING AND INSTALLING PADDING FOR LEFT OR RIGHT REAR SEAT .

Detach retainers in areas (1).

Installation:

Bend new retainers closed with pliers 52 0 050.

Unclip wiring harness (2).

Seat With Air Conditioning:

Detach retainers on panel (3) and disconnect plug connections for fan.

Remove seat cover with padding.

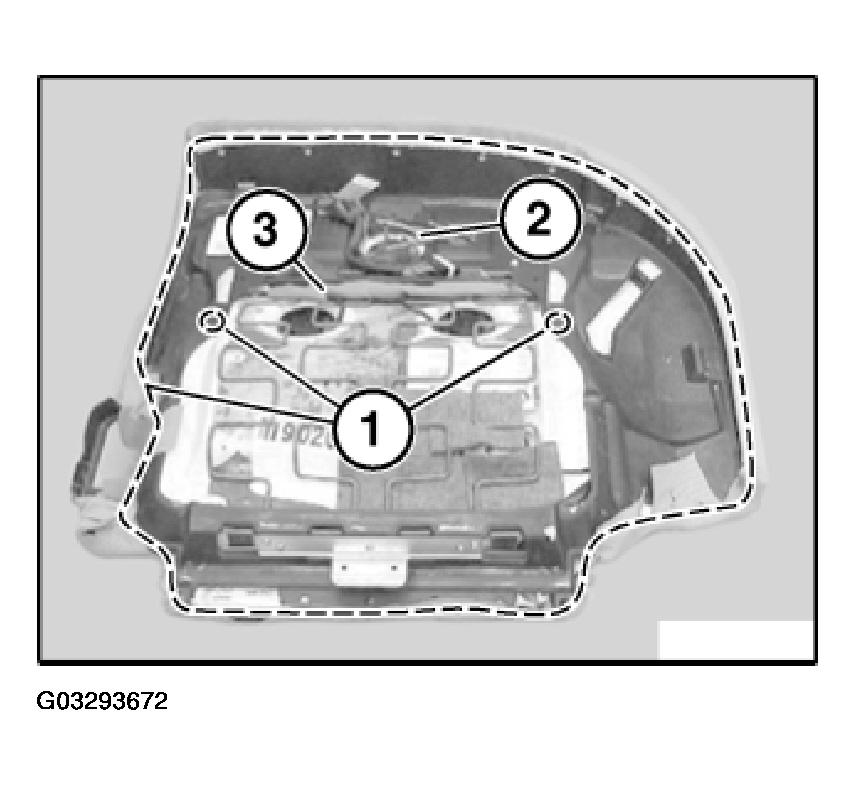

Fig 1: Panel Retainers, Wiring Harness And Retainer Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Release retainers in area (1).

Remove cushion cover.

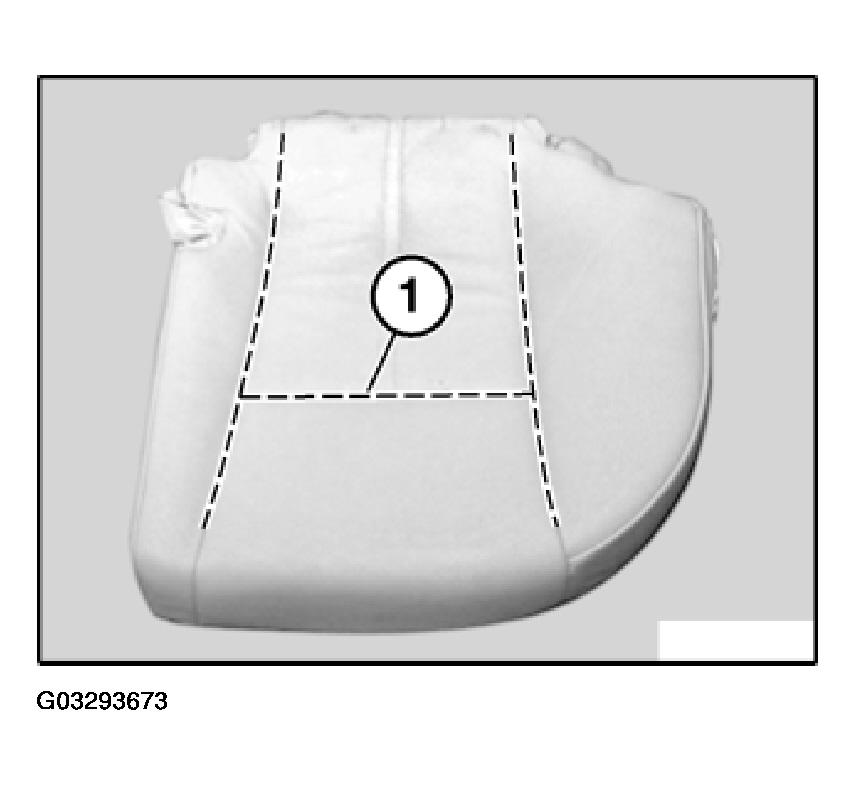

Fig 2: Cushion Cover Retainer Area

Courtesy of BMW OF NORTH AMERICA, INC.

Remove seat occupancy mat (1).

Remove dividing net (2).

Seat with air conditioning:

Remove fan (3).

Installation:

Make sure cables are correctly laid.

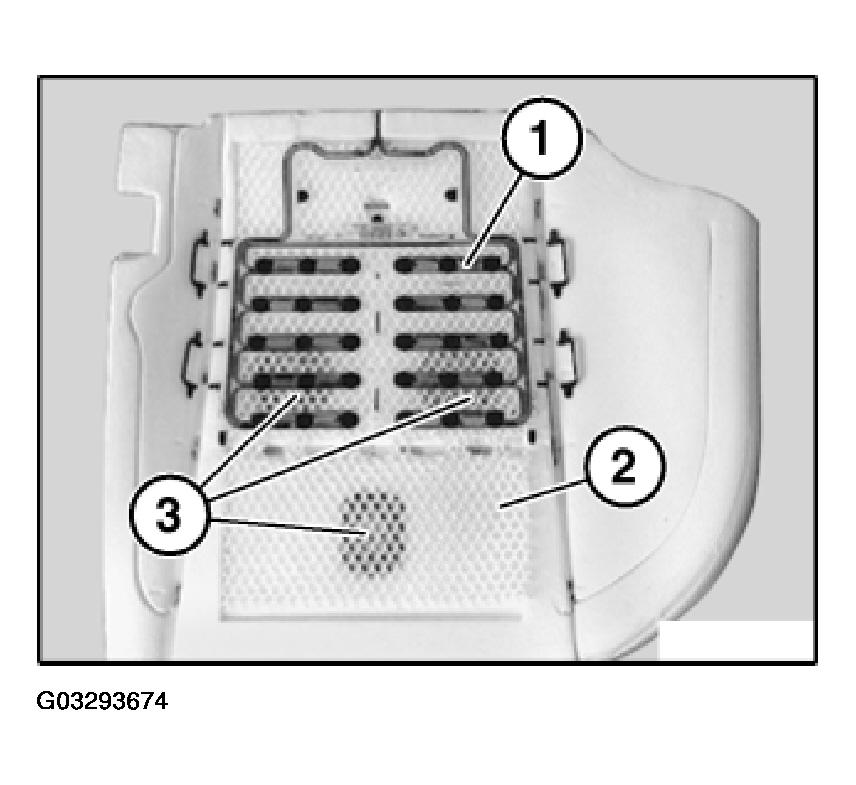

Fig 3: Seat Occupancy Mat, Dividing Net And Fan

Courtesy of BMW OF NORTH AMERICA, INC.
