52 25 059 Removing And Installing/Replacing Valve Housing For Lumbar Cushion

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .

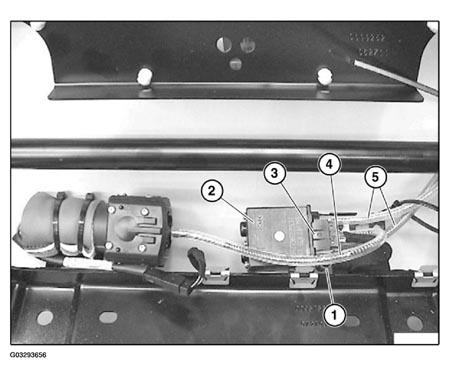

Fig 1: Rear Seat Valve housing, Air Hoses, Screw, And Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Installation:

Install valve housing (2):

Left seat - outer retaining point.
Right seat - inner retaining point.

Disconnect plug connection (3).

Disconnect air hoses (4) and (5) from valve housing.

NOTE: Heat air hoses gently if they are firmly seated on valve housing. Housing of valve block must not be unclipped (leakage). If necessary, release mounting and clip housing together.

Installation:

Make sure air hoses (5) are correctly connected to valve block (color coding).

Air hoses must be laid without kinks.

Install valve housing (2).
