52 25 038 Removing And Installing/Replacing Seat Frame On Left Or Right Rear Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SEATS - SPECIAL TOOLS .

Special Tools Required:

52 0 050

Necessary Preliminary Tasks:

Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .

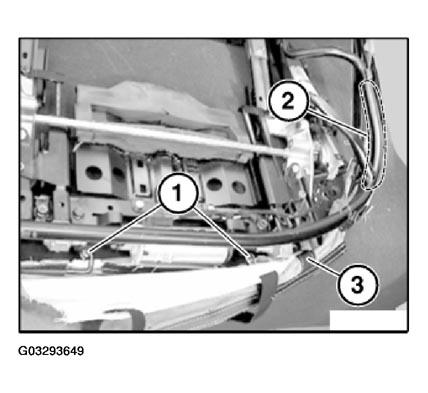

Release screws (1).

Release retainers in area (2).

Installation:

Bend new retainers closed with pliers 52 0 050.

Remove cover (3).

Fig 1: Rear Seat Mounting Screws, Retainers And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

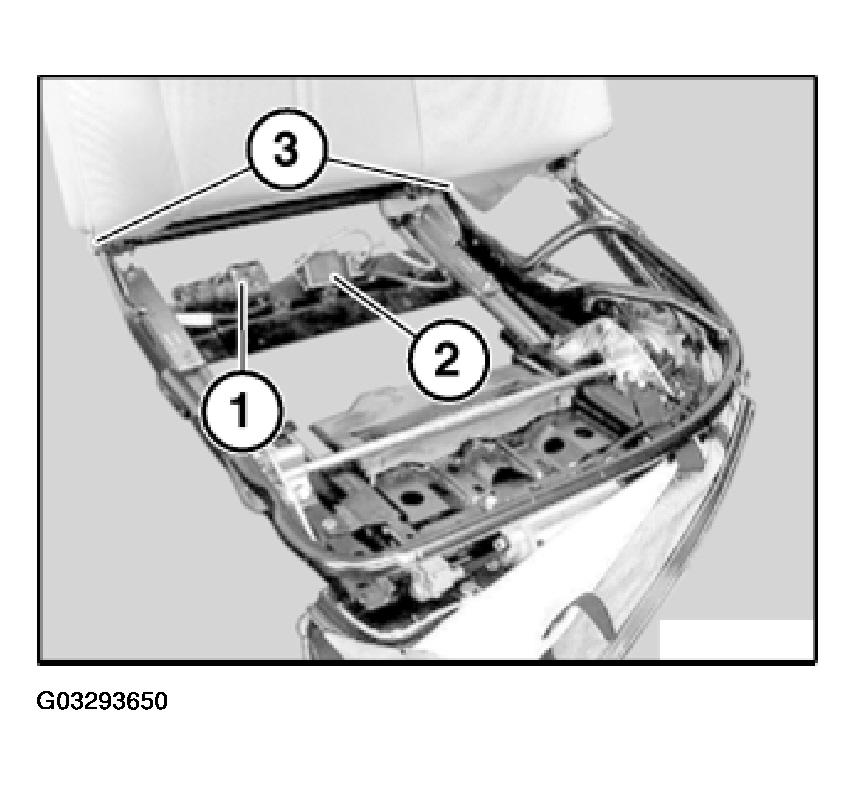

Remove drive (1) and valve block (2).

Release screws (3) and remove backrest.

Installation:

Tightening torque, refer to 52 25 3AZ in SEATS - TIGHTENING TORQUES .

Fig 2: Drive Valve Block And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The new seat frame part contains all the drives.
