52 24 400 Replacing Seat Cover (Normal) For Rear Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SEATS - SPECIAL TOOLS .

Special Tools Required:

52 0 050

Necessary Preliminary Tasks:

Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .
Remove cup holder.

Detach retainers in areas (1).

Installation:

Bend new retainers closed with pliers 52 0 050.

Unhook seat cover in areas (2).

Fig 1: Retainer Areas And Seat Cover Areas

G03293618

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Disconnect plug connections (2) on left and right.

Remove seat cover (3) complete with padding.

Fig 2: Seat Plug Connections And Seat Cover

G03293619

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips in designated areas.

Remove seat cover (1) from padding.

Remove all remnants of retainers from seat cover and/or padding.

Fig 3: Seat Cover And Clip Designation Areas

G03293620

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seat cover (1) is secured by Velcro-type tape (2) in padding (3).

Fig 4: Seat Cover, Velcro-Type Tape And Padding

G03293621

Courtesy of BMW OF NORTH AMERICA, INC.

Pull all designated trim threads out of seat cover.

Installation:

Slide trim threads into new seat cover. If necessary, cut mounting for trim threads.

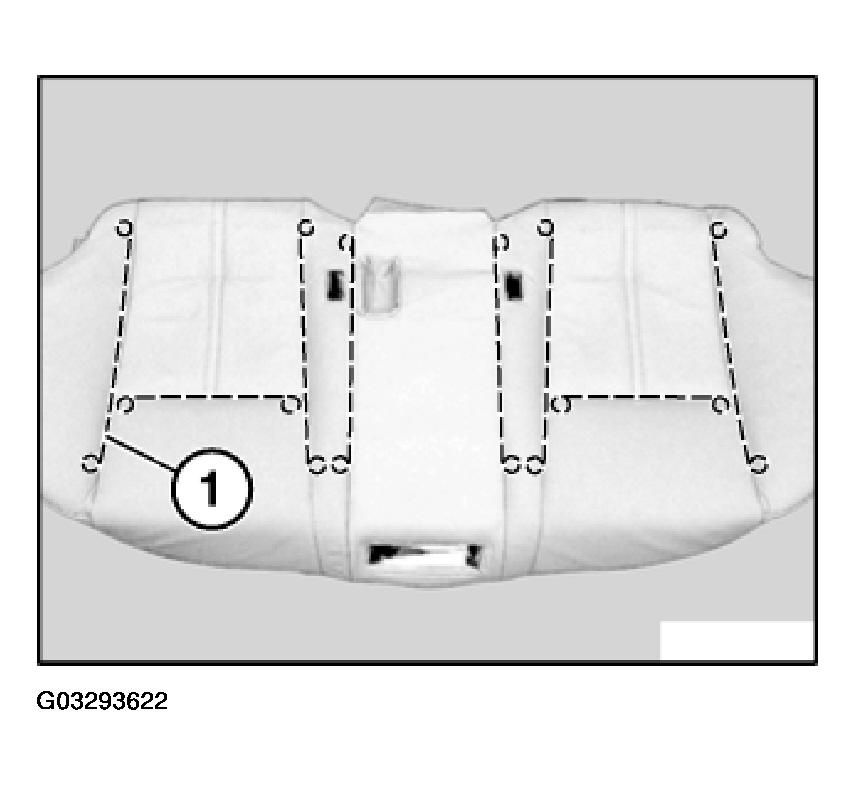

Fig 5: Seat Cover Trim Threads

G03293622

Courtesy of BMW OF NORTH AMERICA, INC.
