52 17 415 Replacing Support For Left Or Right Front Seat (Comfort)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: US/CND front passenger seat (with OC3 mat) only:

The support can only be removed in conjunction with the OC3 mat.

If support is defective, both parts may only be replaced together.

After fitting new support, enable OC3 mat with BMW diagnosis system.

The operation for removing the support with/without OC3 mat is described in: 52 17 400 REMOVING AND INSTALLING/REPLACING SEAT COVER FOR LEFT OR RIGHT FRONT SEAT (COMFORT) .

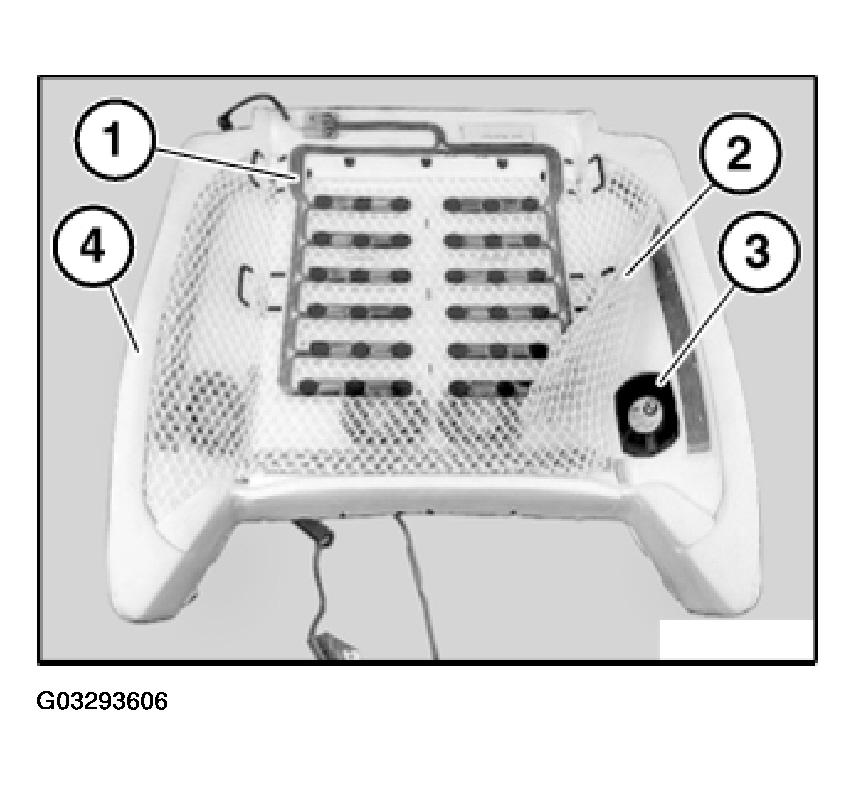

Remove sensor mat (1). Refer to 65 77 598 REPLACING SENSOR MAT FOR DRIVER'S SEAT OCCUPANCY DETECTOR and 65 77 600 REPLACING SENSOR MAT FOR PASSENGER SEAT OCCUPANCY DETECTOR .

Enabling Seat Occupancy Detector (OC3 Mat):
