52 17 035 Removing And Installing/Replacing Gearing For Head Restraint Adjustment
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove shaft for head restraint adjustment. Refer to 52 17 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (COMFORT) .

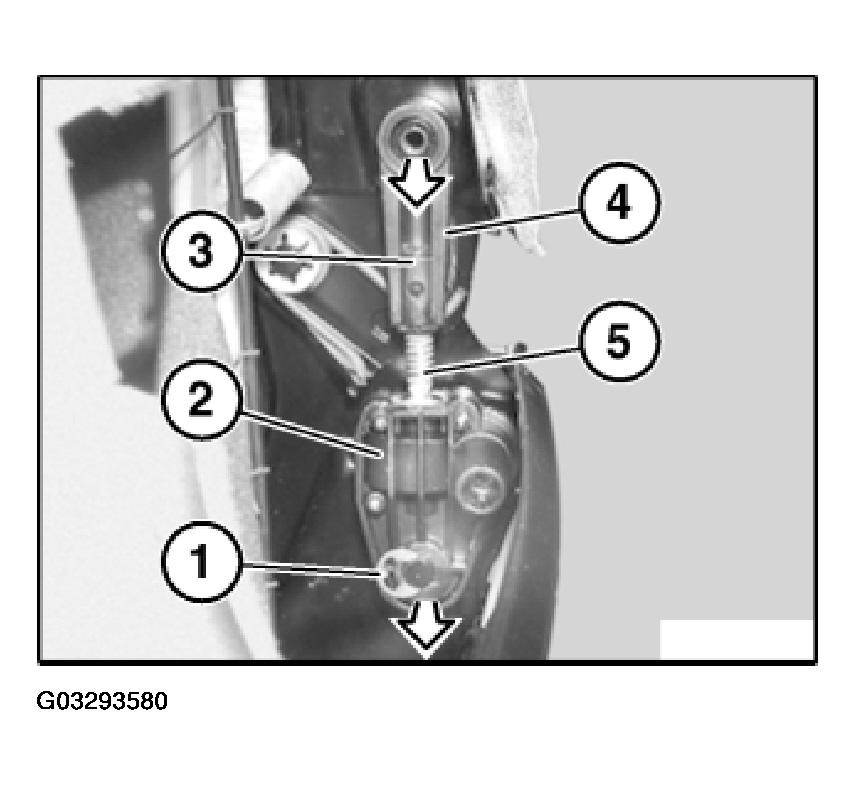

Remove retainer (1) on left and right.
Remove gearing (2) on left and right straight towards front.
Installation:
To ensure identical adjustment of gearings (2), carry out following work step on both gearings:
- Unscrew component (4) until threaded rod (5) is flush with edge (3).
