52 17 023 Removing And Installing/Replacing Adjusting Unit For Thigh Support On Left Or Right Front Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .
Remove thigh support. Refer to 52 17 ... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT THIGH SUPPORT .

Move front thigh support forwards as far as possible.

Release screws (1).

Detach compressor (2) complete with holder (3) in direction of arrow.

Installation:

Attach holder (3) in area (5).

Disconnect plug connection (4) on drive.

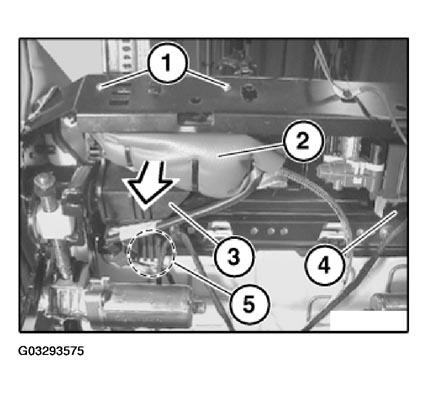

Fig 1: Drive Plug Connection, Screws, Compressor, Holder And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws in areas (1).

Feed out adjusting unit (2) complete with drive in direction of arrow and remove.

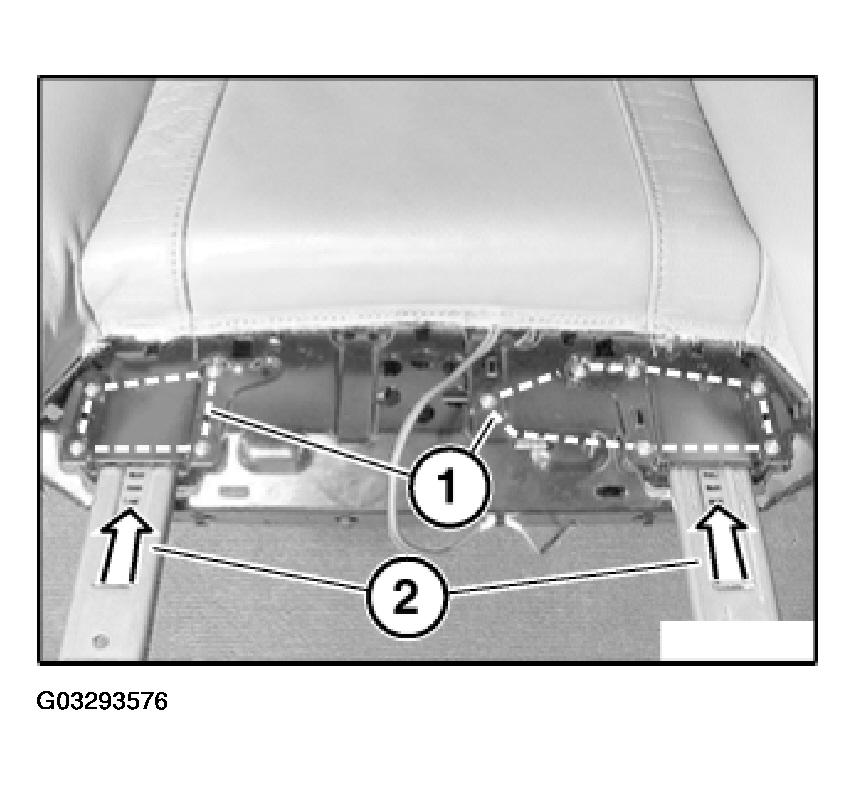

Fig 2: Adjusting Unit, Screw Areas And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
