52 17 ... Replacing Padding For Front Seat Thigh Support

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

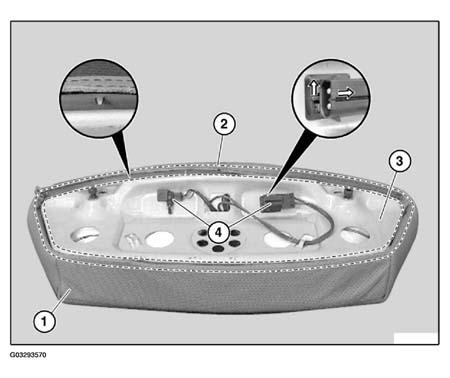

Fig 1: Front Seat Cover, Area, Trim, Plug Connections And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

The work operations here are shown on the version with air conditioning and seat heating.

Feed out seat cover (1) in area (2).

Installation:

Seat cover (1) is fastened by hooks in trim (3).

Remove plug connections (4) and feed out through trim (3).

Remove trim (3); if necessary, remove padding or cover.

Version With Seat Heating Or Air Conditioning:

Feed out cable (1) and remove padding (2).

Installation:

Ensure correct cable routing (1).

Fig 2: Cables And Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Air Conditioning:

Remove separating net (1).
Lift out fan (2).

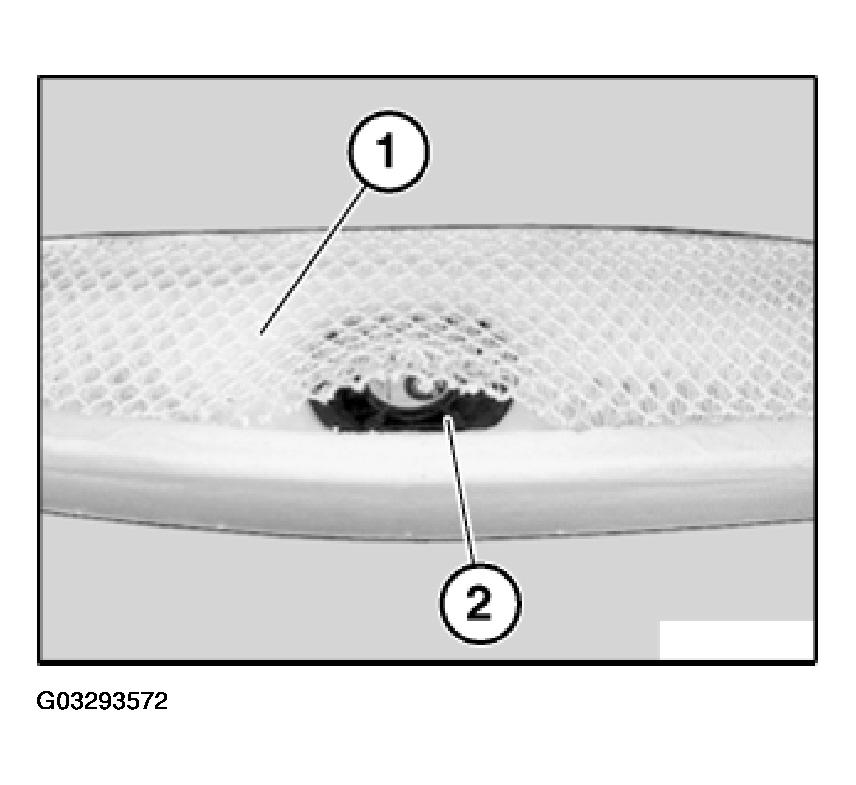

Fig 3: Separating Net And Fan
Courtesy of BMW OF NORTH AMERICA, INC.
