52 14 ... Replacing Left Flex Shaft For Longitudinal Seat Adjustment Drive

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect electrical plug connection.

Lift drive (1) and flex shaft (3) out of guide (2) in direction of arrow.

Detach flex shaft (3) (plug connection).

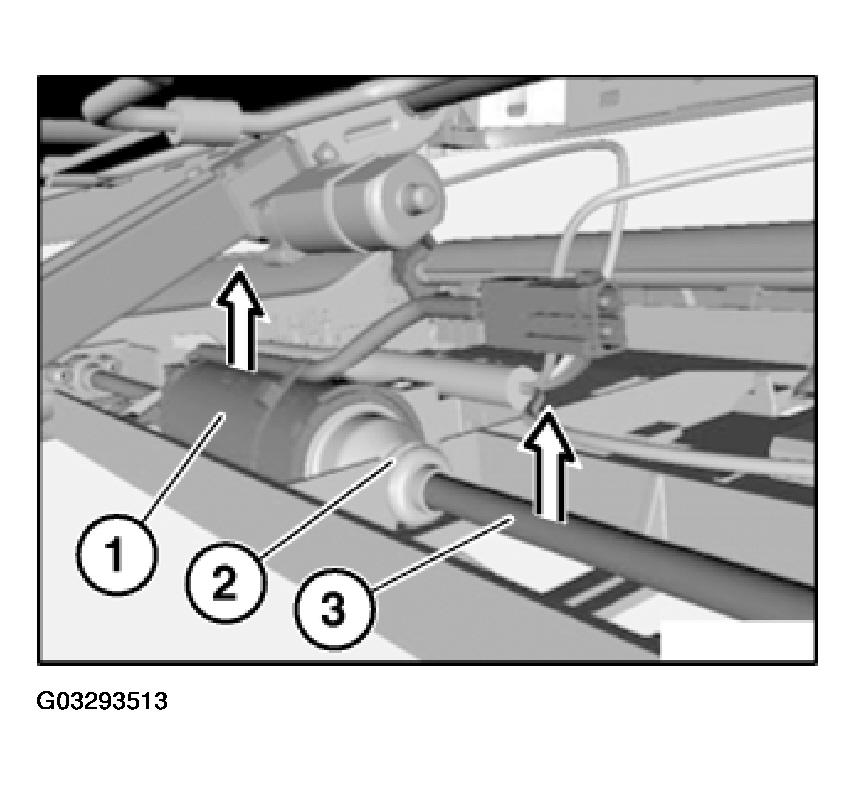

Fig 1: Drive, Flex Shaft, Guide And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove drive (4).

Detach flex shaft (3) with holder (2).

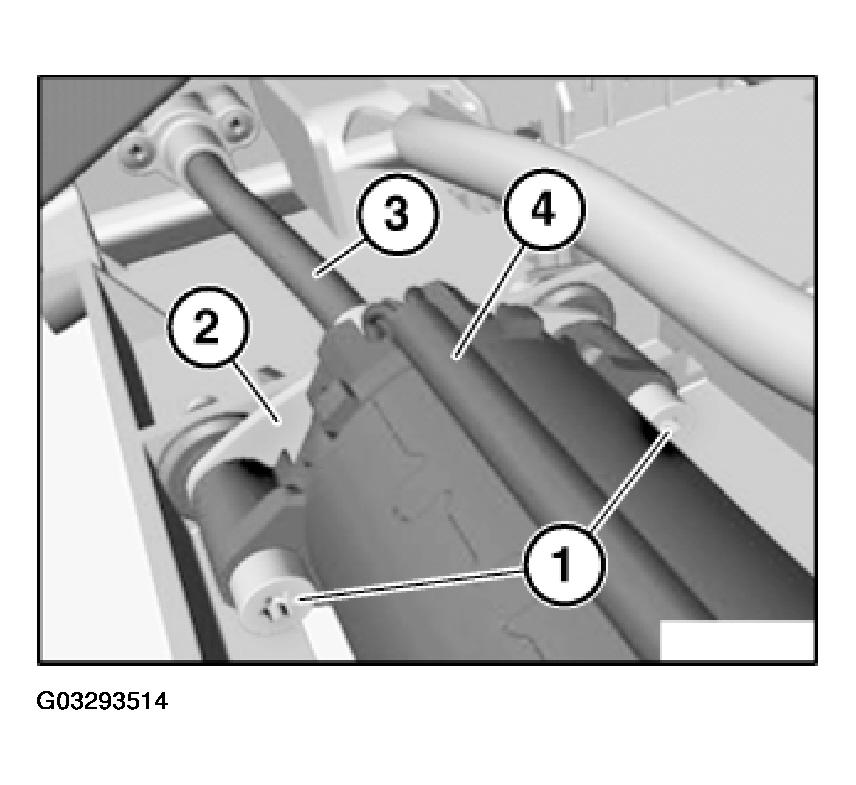

Fig 2: Screws, Drive, Flex Shaft And Holder

Courtesy of BMW OF NORTH AMERICA, INC.
