51 24 660 Correcting Fluid Level In Hydraulic Unit For Rear Lid Actuation (Electrohydraulic-Fully Automatic)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not under any circumstance remove fluid tank from hydraulic unit.

Use fluid from "Small parts for hydraulic unit" set.

NOTE: Hydraulic unit removed.

Ideal Filling:

Set hydraulic unit (1) down on a horizontal surface (4).

Damper (3) and valve (5) must not rest on surface.

Check distance (B) from middle of marking (2) to lower edge of hydraulic unit (1).

B = 45+/-1 mm.

After correction, fluid level (2) must be in upper area (A) of marking (2).

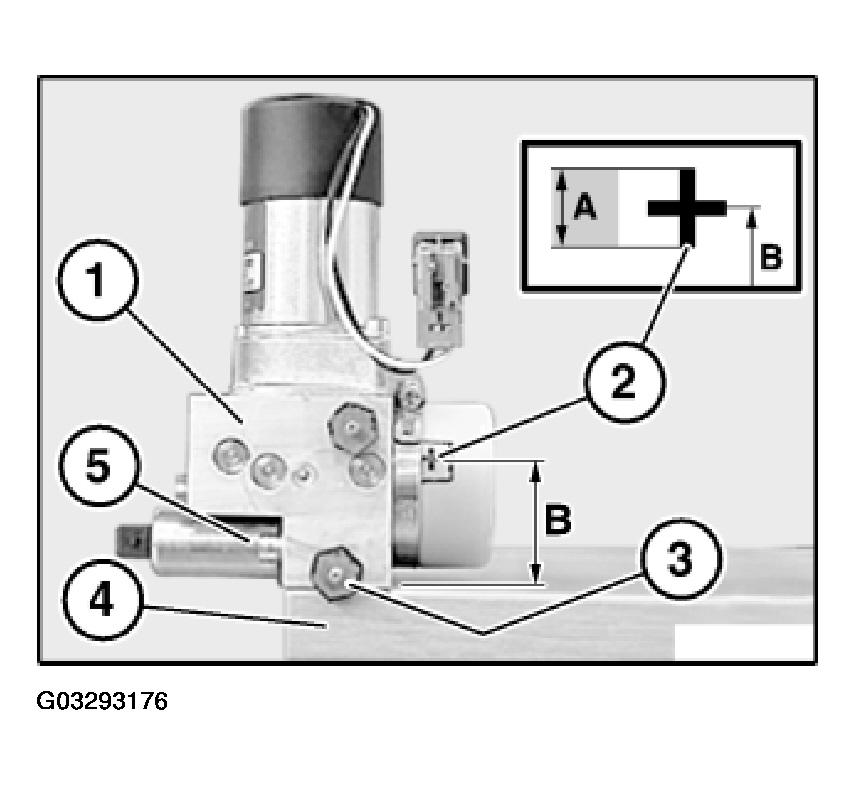

Fig 1: Identifying Fluid Level On Hydraulic Unit
G03293176Courtesy of BMW OF NORTH AMERICA, INC.

Correcting Fluid Level:

Release screws (1).

Detach electric motor (2) with drive flange (3) from pump carrier (4).

Installation:

Tightening torque, refer to 51 24 3AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

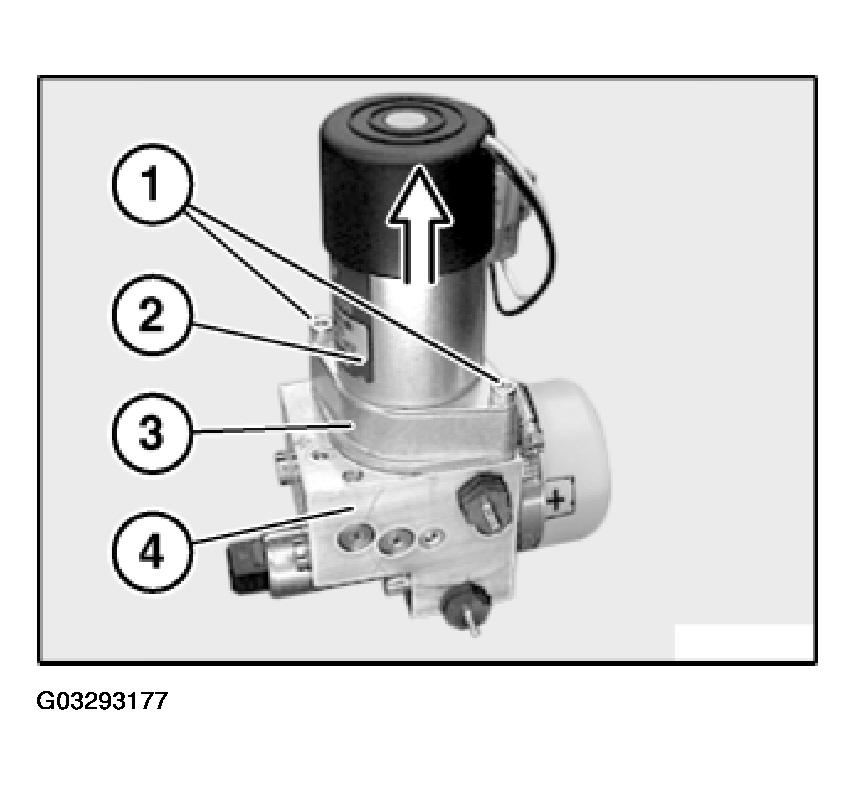

Fig 2: Identifying Electric Motor With Drive Flange
G03293177Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring (1) on drive flange (2).

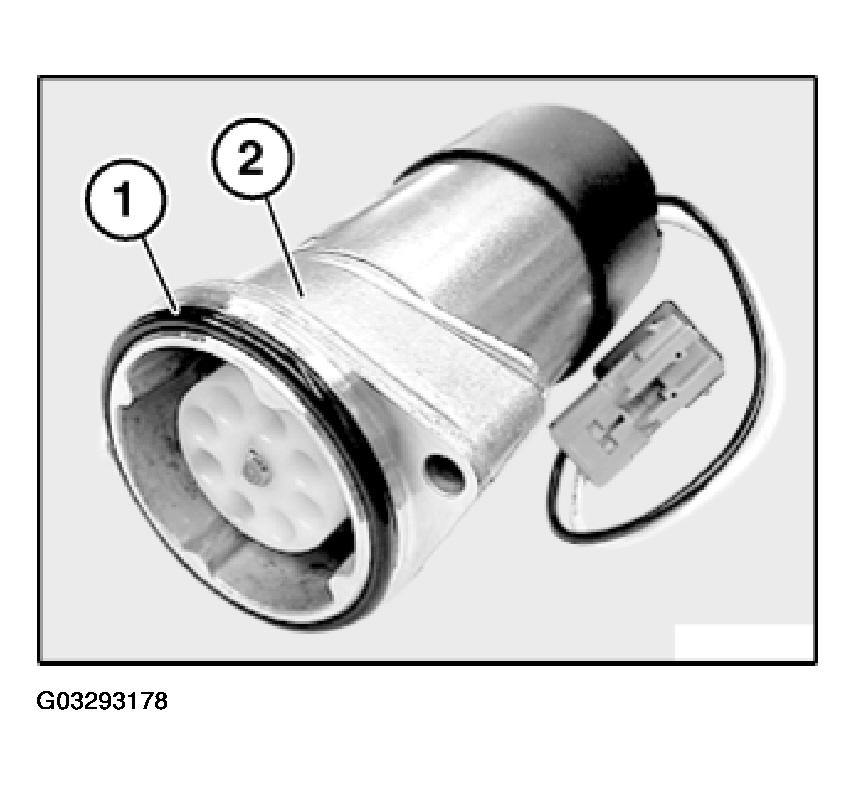

Fig 3: View Of Sealing Ring On Drive Flange
G03293178Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Hydraulic fluid (4) seeps into fluid tank (6) through two bores under deep-groove ball bearing (2).

Fill hydraulic fluid (4) between cylinder star (5) and deep-groove ball bearing (2).

Lift pump carrier (3) several times at valve (1), air escapes from fluid tank (6) more quickly.

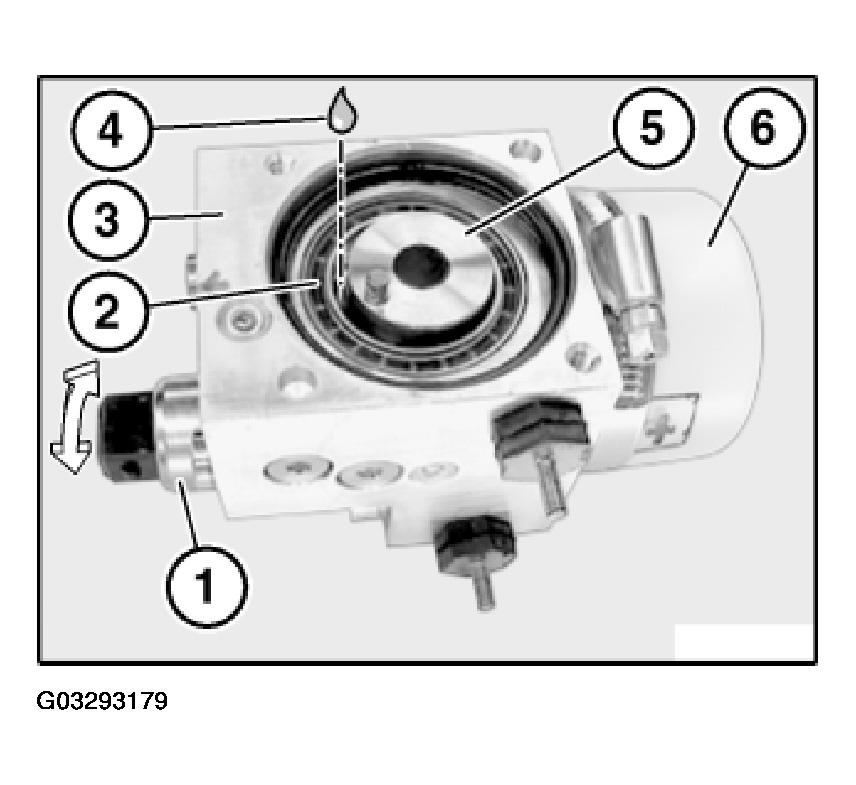

Fig 4: Identifying Cylinder Star And Deep-Groove Ball Bearing
G03293179Courtesy of BMW OF NORTH AMERICA, INC.

Set pump carrier (1) down on a horizontal surface (3).

Damper (4) and valve (2) must not rest on surface.

Fluid level (2) must be in upper area (A) of marking (5), correct if necessary.

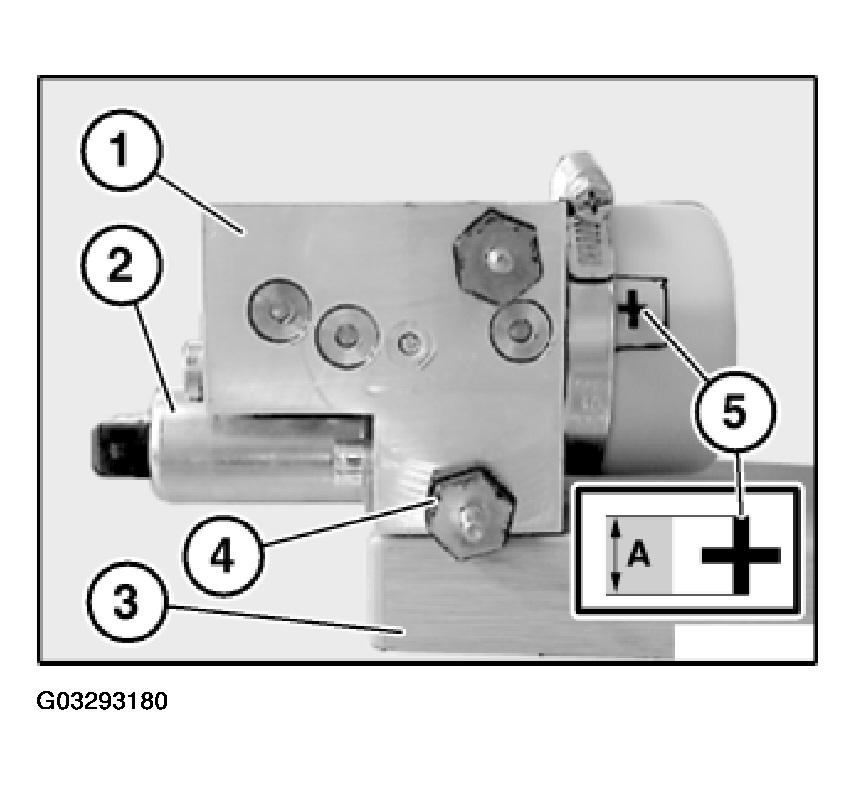

Fig 5: View Of Fluid Level
G03293180Courtesy of BMW OF NORTH AMERICA, INC.

When Ideal Filling Is Achieved:

Connect hydraulic unit in vehicle to hydraulic hoses.

Close rear lid (motor-driven) twice and open again, this bleeds the system.

Hold hydraulic unit with drive (1) all round vertically upwards.

Fluid level (2) must be in area (A) of marking (3) with rear lid fully open (cylinder retracted).

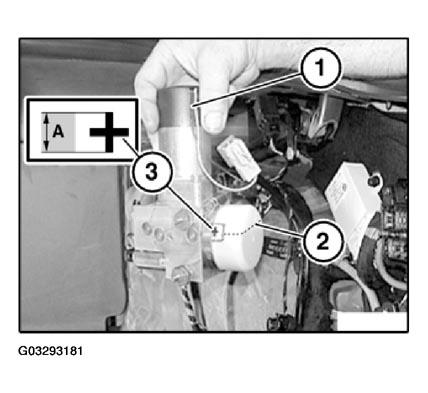

Fig 6: Identifying Hydraulic Unit In Vehicle
