51 24 065 Removing And Installing/Replacing Bowden Cable For Manual Rear Lid Unlocking (From 03/2005)
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove panel for rear lid at bottom. Refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER REAR LID .

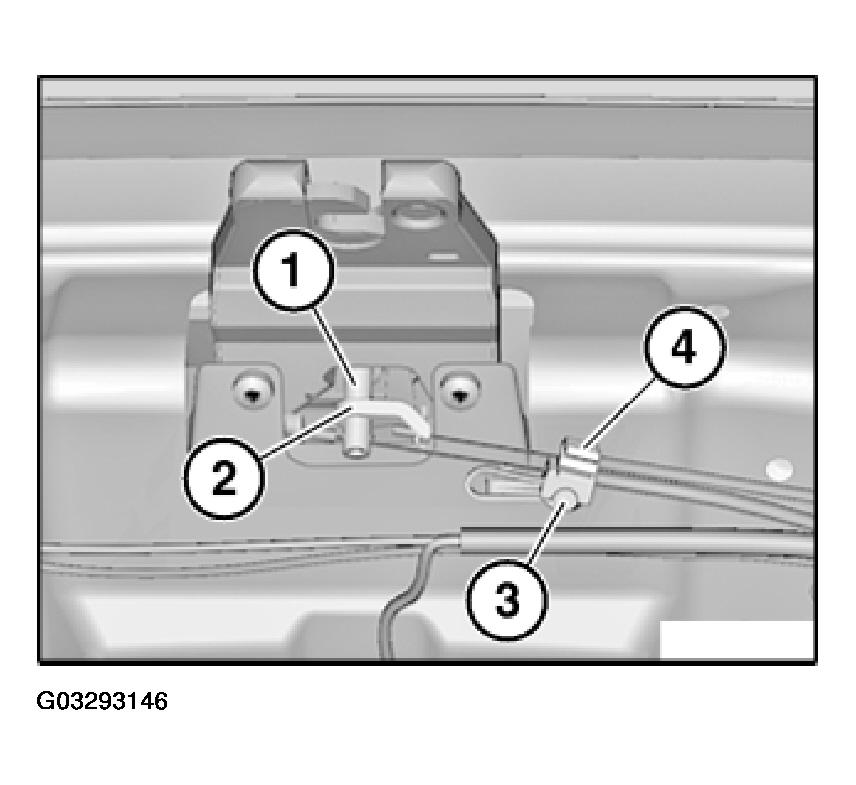

Detach Bowden cables (1 and 2) from rear lid lock.
Lever out expanding wedge (3) and detach guide (4).
Feed Bowden cable (2) out of Bowden cable (1) and guide (4) and remove.
