51 24 050 Removing And Installing/Replacing Lock Element (Lock Cylinder) For Rear Lid (From 03/2005)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove panel for rear lid. Refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER REAR LID .

Detach Bowden cables (1 and 2) from rear lid lock.

Lever out expanding wedge (3) and detach guide (4).

Feed Bowden cable (2) out of Bowden cable (1) and guide (4).

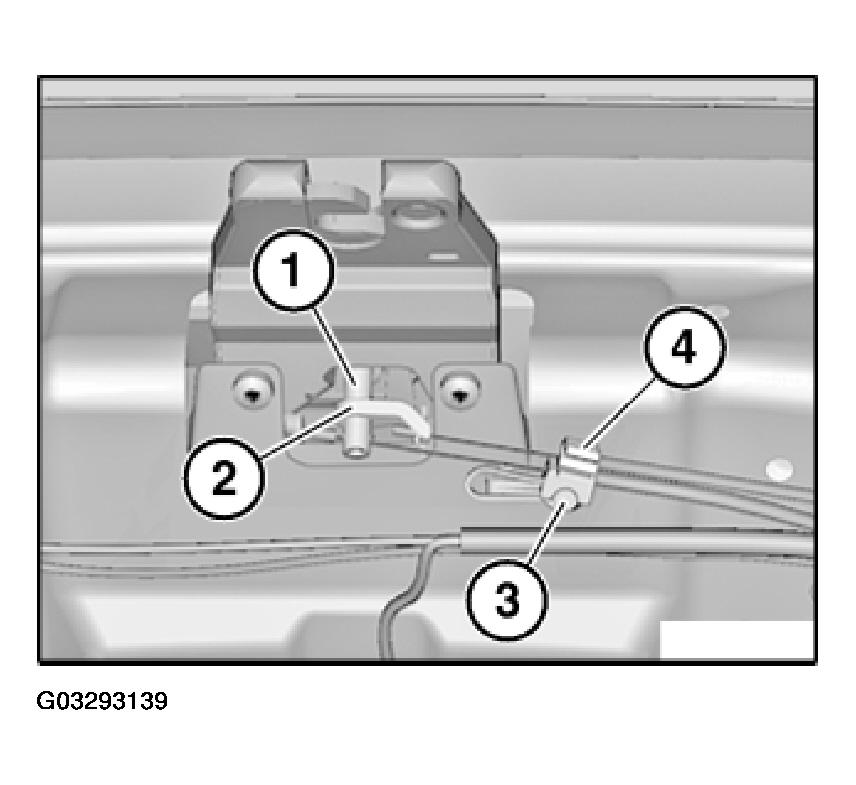

Fig 1: View Of Bowden Cables In Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Remove lock element (2) inwards and feed out with Bowden cable (3).

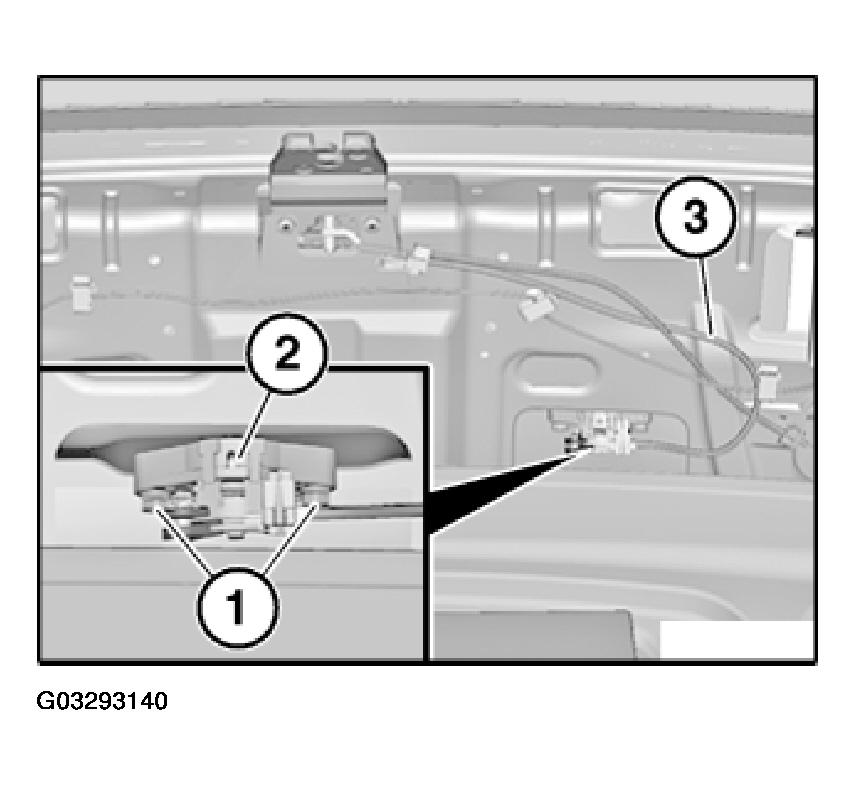

Fig 2: Locating Lock Element Retaining Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unhook Bowden cable (1) from lock element (2).

Release clip (3) and remove Bowden cable (1).

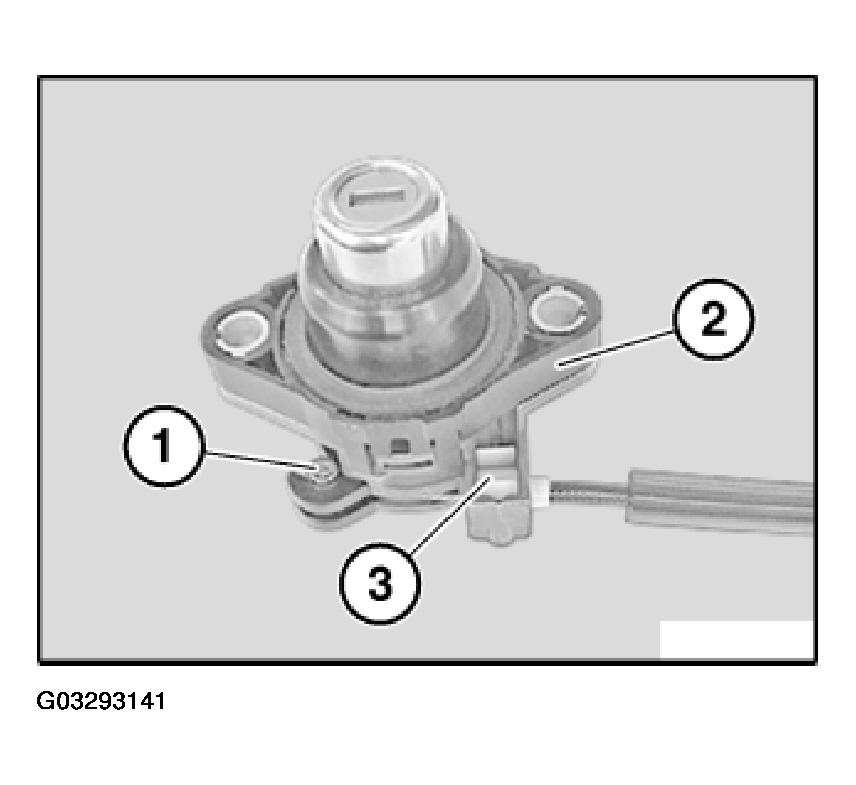

Fig 3: Identifying Bowden Cable In Lock Element

Courtesy of BMW OF NORTH AMERICA, INC.
