51 13 220 Removing And Installing/Replacing Middle Trim Strip On Rear Lid

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 318

NOTE: Minimum object temperature of trim strip and body >/= 18° C.

If this temperature is not achieved, the components must be preheated.

Removing Trim Strip:

Carefully detach trim strip (1) from rear lid (2) with special tool 00 9 318 and hot air blower.

NOTE: Trim strip (1) cannot be reused.

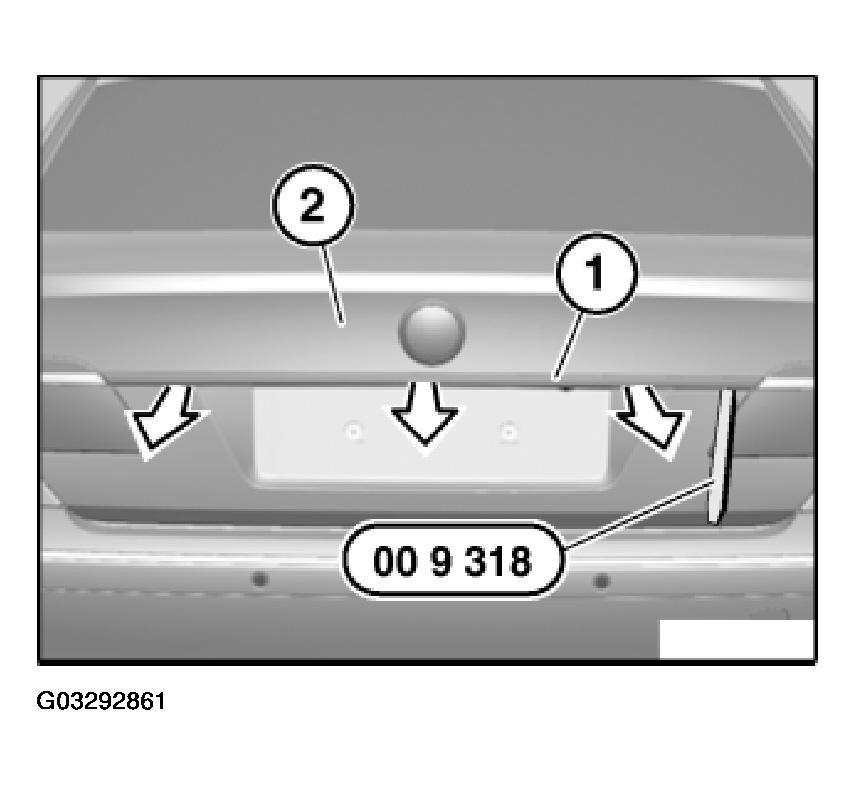

Fig 1: Detaching Trim Strip From Rear Lid With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Cleaning Rear Lid:

For cleaning, use a fluff-free disposable cloth or a clean cleaning cloth.

Clean adhesive area of rear lid with spirit.

Air drying time at least 1 minute.

Do not grip bonding surface.

Fitting Trim Strip:

Place trim strip (1) on rear lid (2) and center.

Observe gap dimension between trim strip (1) at top and rear lid (2).

A = 0 mm.

Detach a liner^* a few centimeters and press on trim strip (1) gently.

Check position and if necessary realign.

Pull off both liners^* in stages and stick on trim strip (1).

Minimum application pressure is achieved by applying firm thumb pressure in stages over the entire joining surface (holding time approx. 1 second).

Firm thumb pressure approx. 35 N/cm² .

^* Liner is the protective film on a new trim strip.

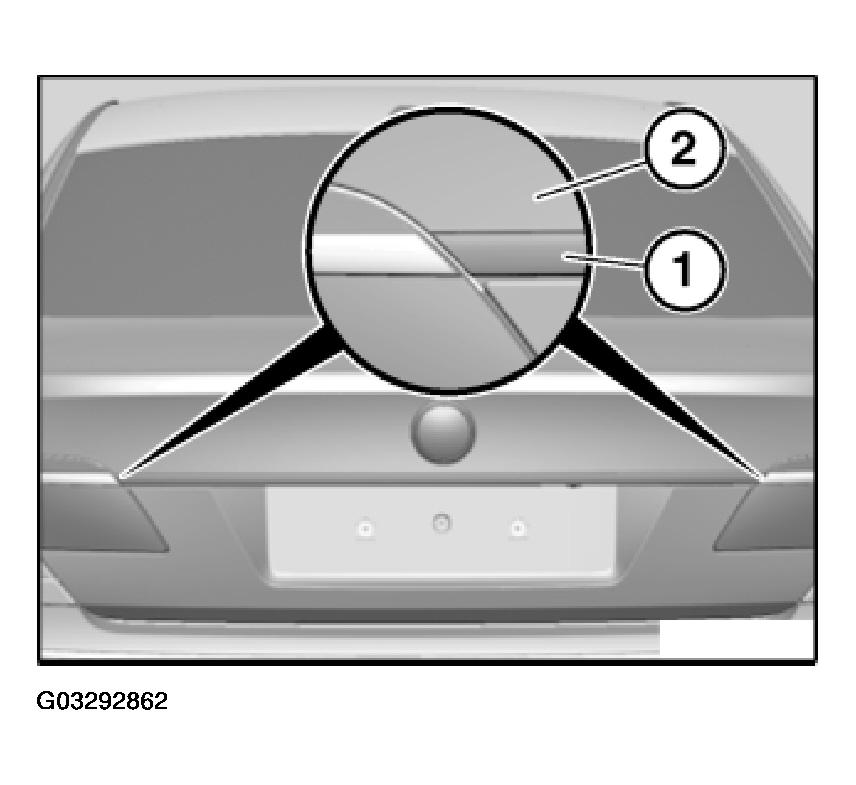

Fig 2: Placing Trim Strip On Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.
