51 43 201 Removing And Installing Or Replacing Trim For Front Left Or Right Roof Pillar
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .
Special Tools Required:
- 00 9 317
WARNING:
Follow safety instructions for working on vehicles with airbag systems. Refer to 51 00... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS .
IMPORTANT:
Do not use any sharp-edged tools to remove trim (risk of damage to head airbag).

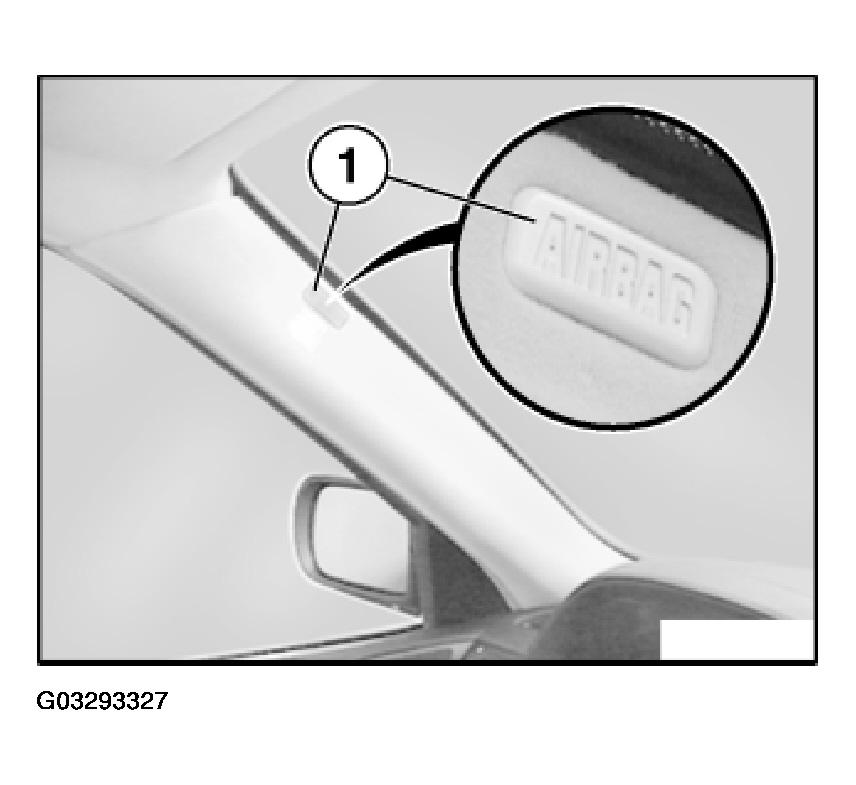

Lever out clip (1) with special tool 00 9 317 (trim panel wedge).
If necessary, detach mucket in area of A-pillar panel.

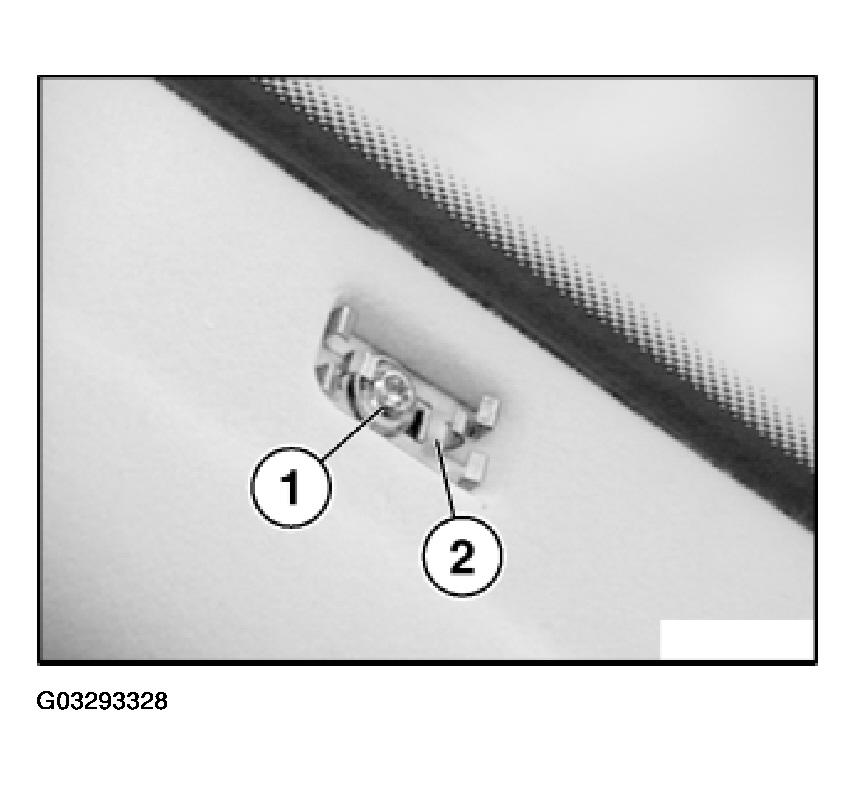

Release screw (1).
Installation:
Tightening torque, refer to 51 43 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .
Make sure clip (2) is correctly seated.

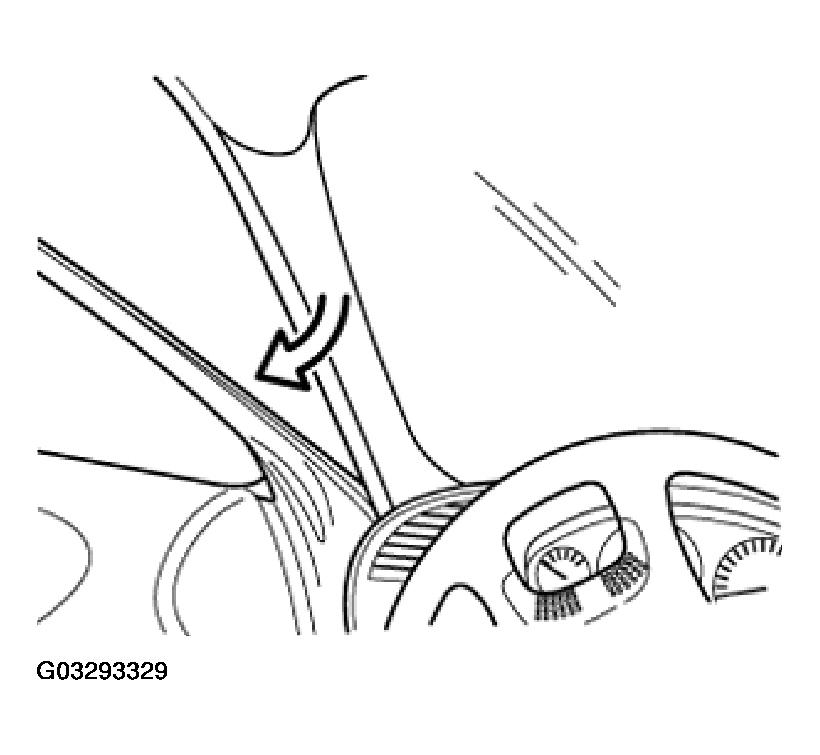

Pull out trim for front roof pillar towards inside/top.
Installation:

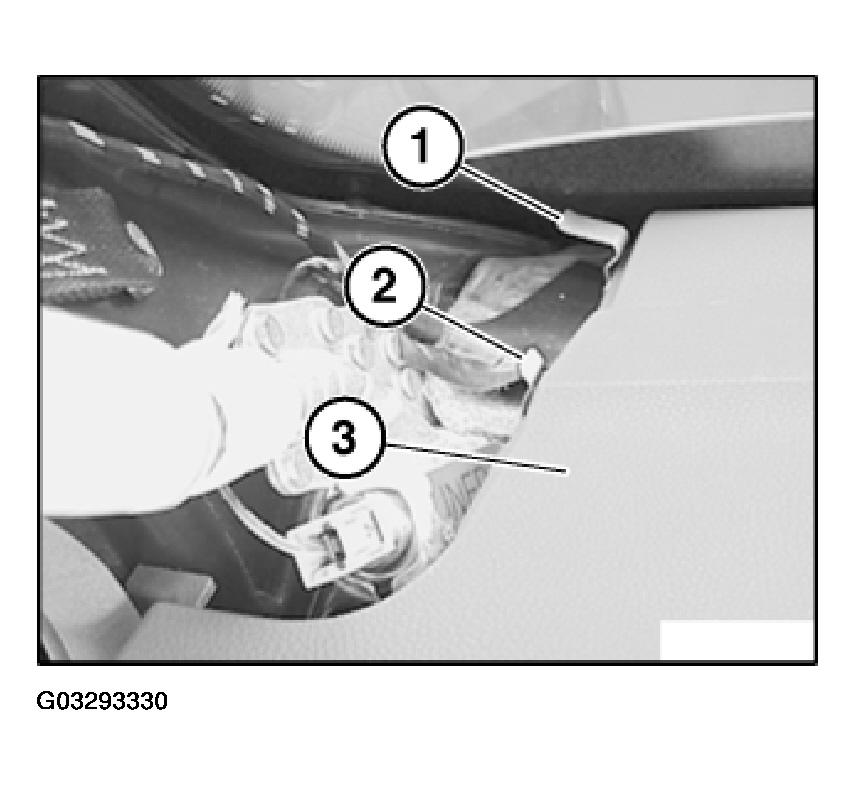

Clips (1 and 2) on instrument panel (3) must not be damaged.
Installation:

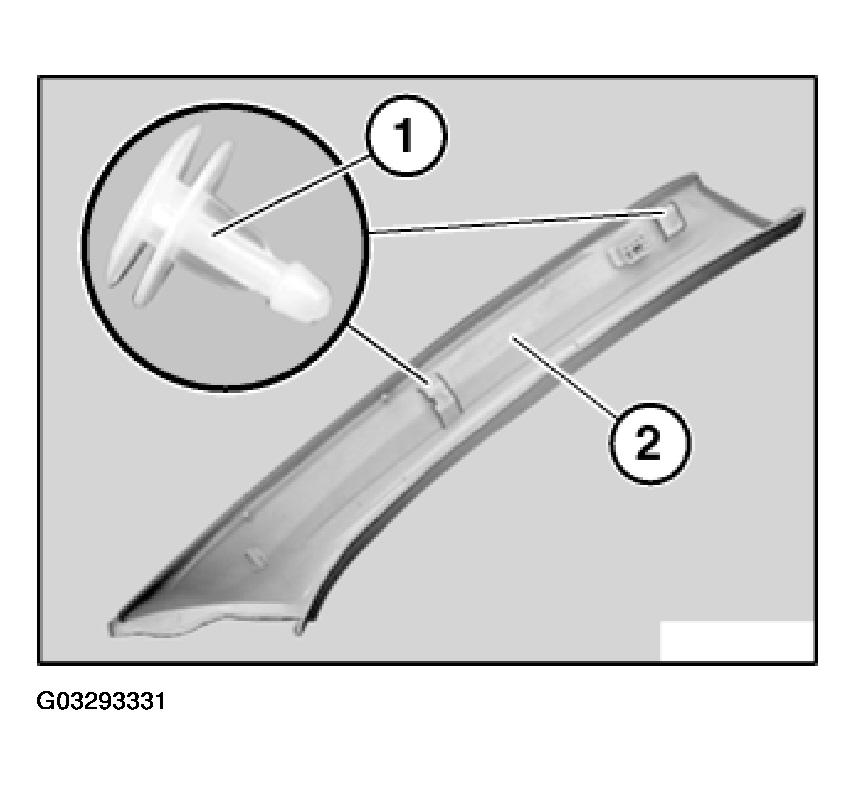

If necessary, replace faulty clips (1) of panel (2).
Installation:

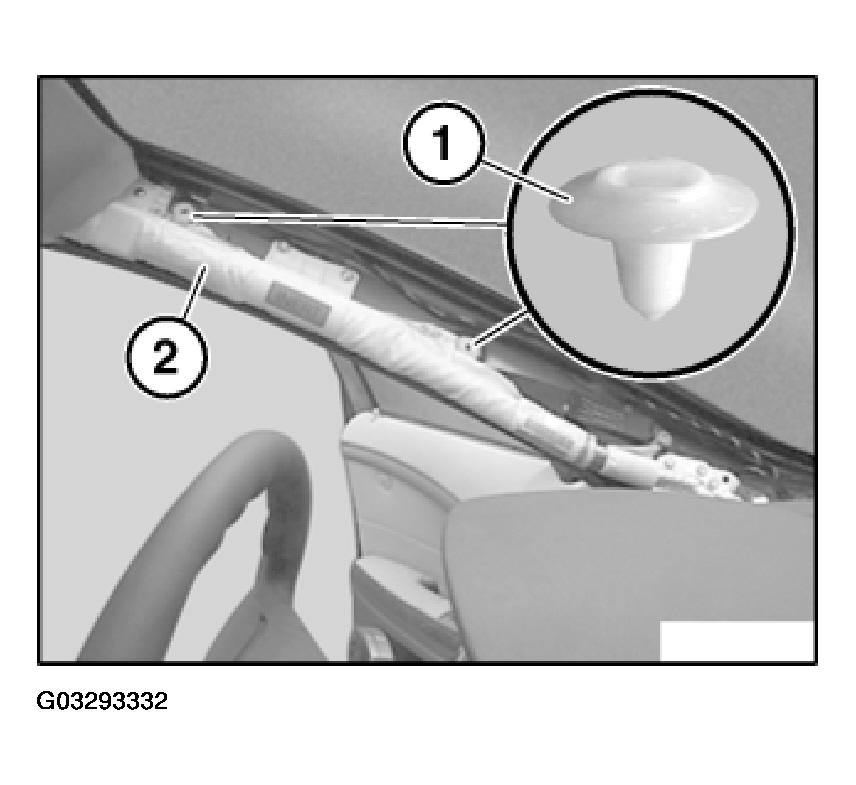

If necessary, replace defective grommets (1).
Do not damage head airbag (2) during installation.
