51 34 420 Removing And Installing/Replacing Trim On Window Frame Of Rear Door (Front), Left Or Right

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear window cavity cover strip. Refer to 51 22 302 REMOVING AND INSTALLING/REPLACING CHROME STRIP FOR WINDOW CAVITY COVER STRIP, REAR LEFT OR RIGHT .

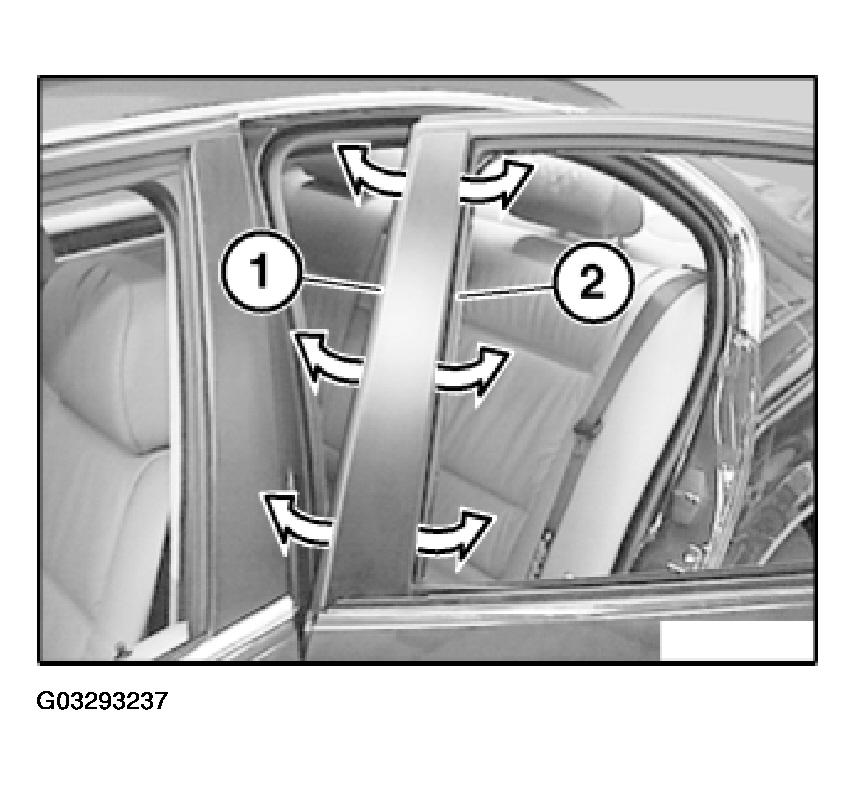

Partially detach rubber seal (1) and rubber guide (2).

Fig 1: Detaching Rubber Seal And Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

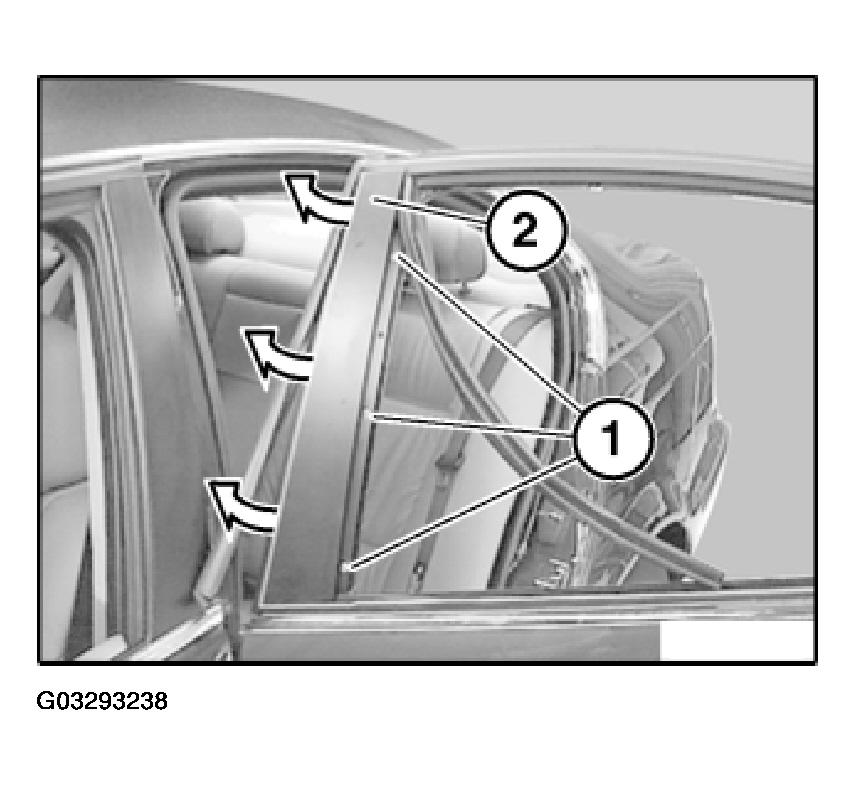

Release screws (1).

Detach trim (2) towards front/top.

Fig 2: Detaching Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

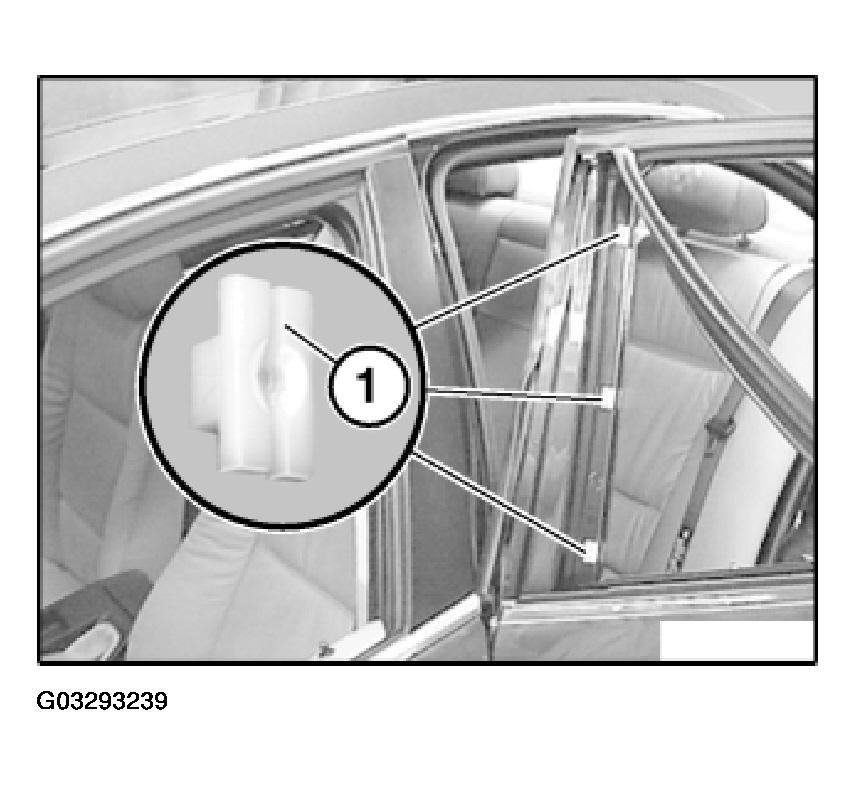

If necessary, replace faulty plastic nuts (1).

Fig 3: Removing Faulty Plastic Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

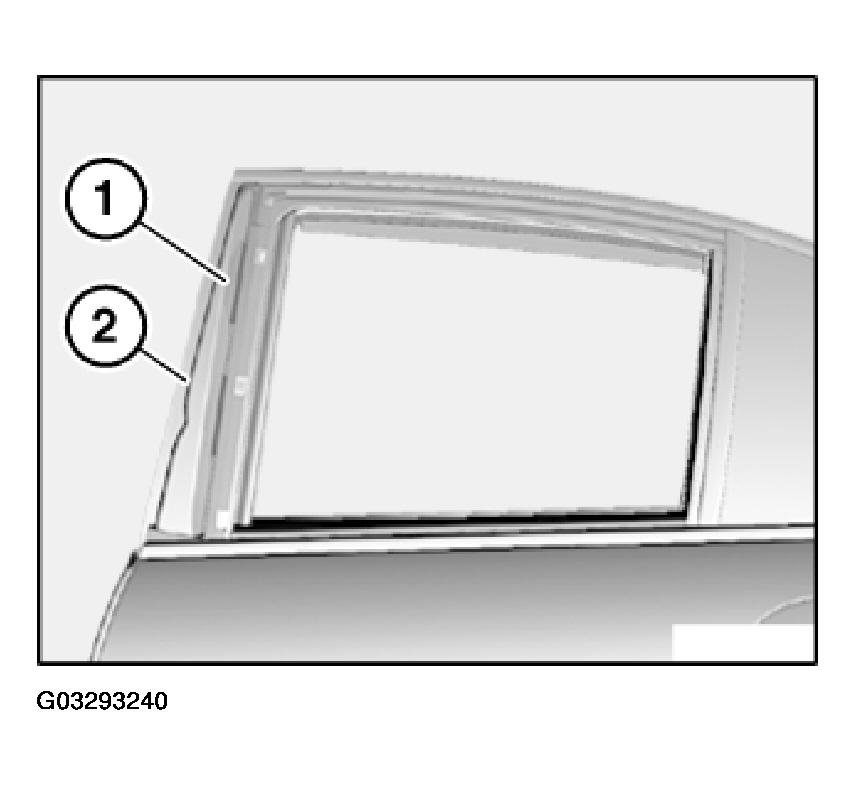

Sound insulation (1) on window frame (2) must be fitted.

Fig 4: Fitting Sound Insulation On Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.
