51 49 006 Removing And Installing/Replacing Trim For Rear Lid At Top

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove trim for rear lid at bottom. Refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER REAR LID .

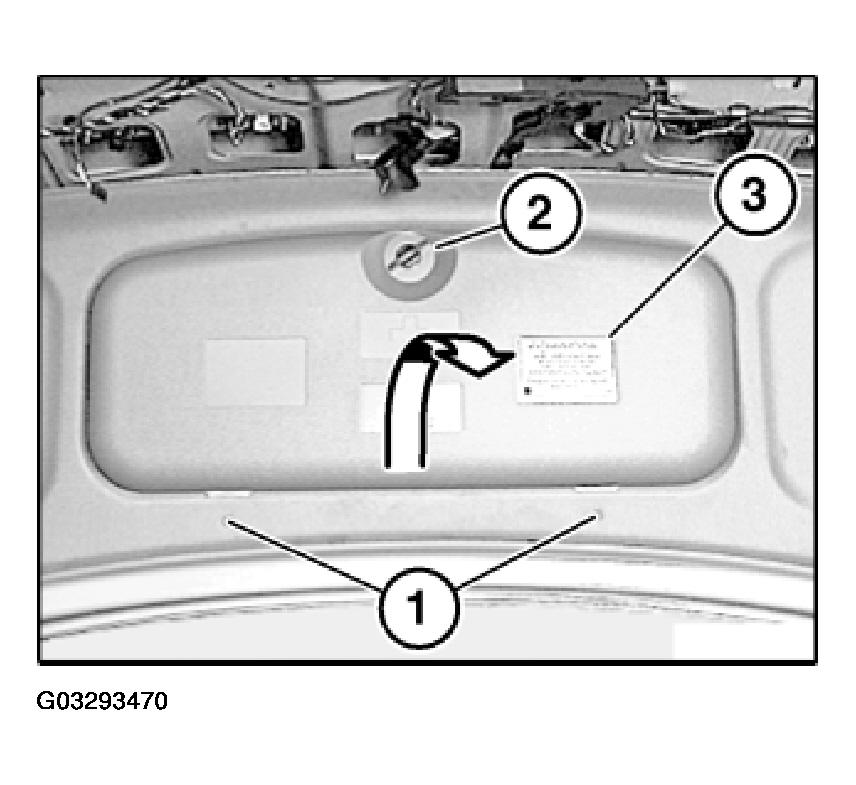

Release screws (1 and 2).

Lever out retaining strap and remove tool box (3) in direction of arrow.

Fig 1: Removing Tool Box

Courtesy of BMW OF NORTH AMERICA, INC.

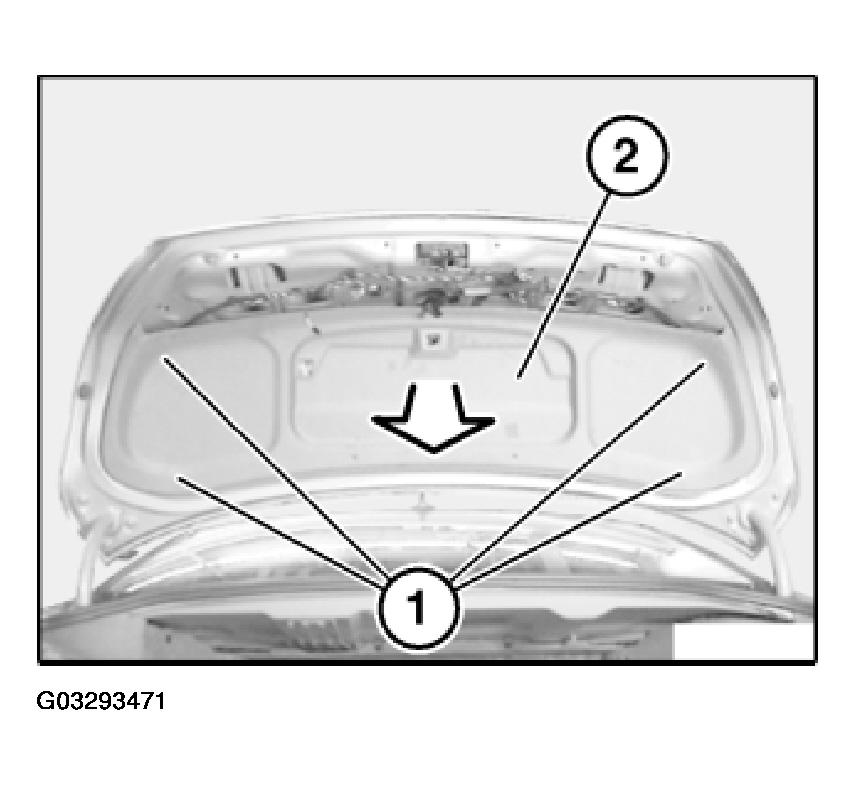

Release clips (1) and remove trim (2).

Fig 2: Removing Rear Lid Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

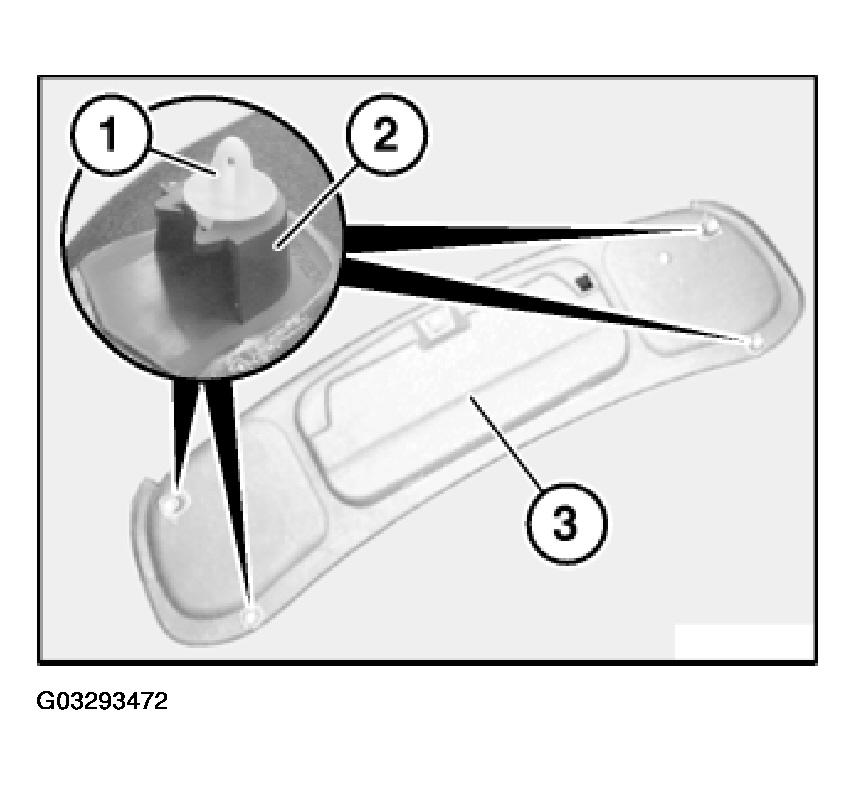

Following parts of trim (3) must not be damaged or missing:

Clips.
Clip mountings.

Fig 3: Identifying Clips And Clip Mountings
Courtesy of BMW OF NORTH AMERICA, INC.
