51 42 070 Removing And Installing/Replacing Upper Section On Armrest (Rear)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rocker switch for window operation (rear). Refer to 61 31 116 REPLACING ROCKER SWITCH FOR SIDE WINDOW OPERATION (REAR) .

NOTE: Place a clean cleaning cloth between screwdriver and bore hole (risk of damage).

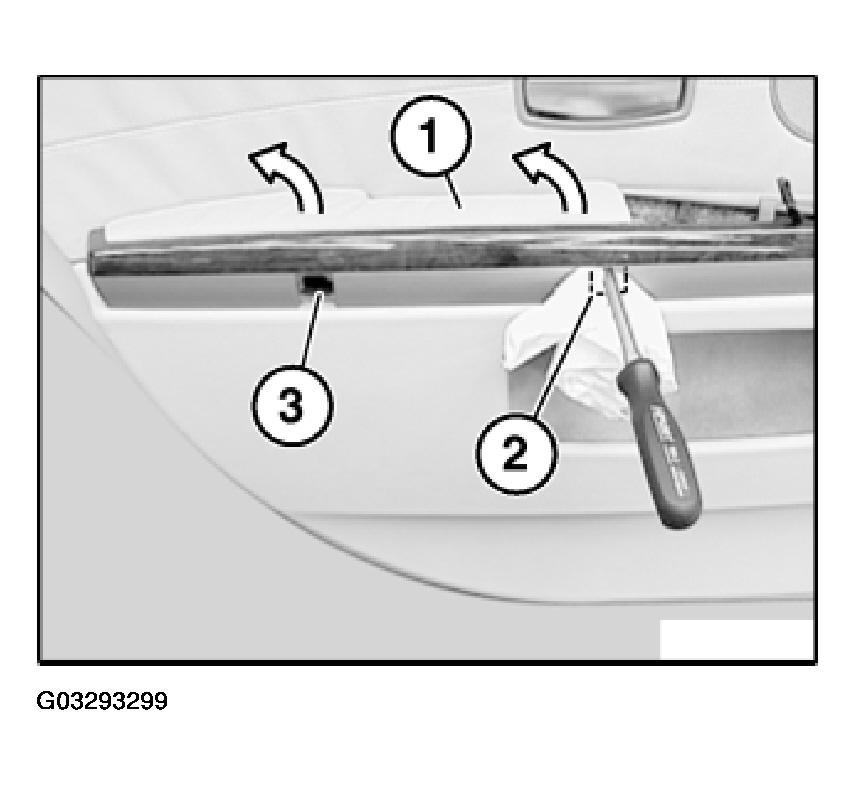

Unlock upper section (1) over bore holes at front (2) and rear (3) in direction of arrow.

Fig 1: View Of Screwdriver And Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

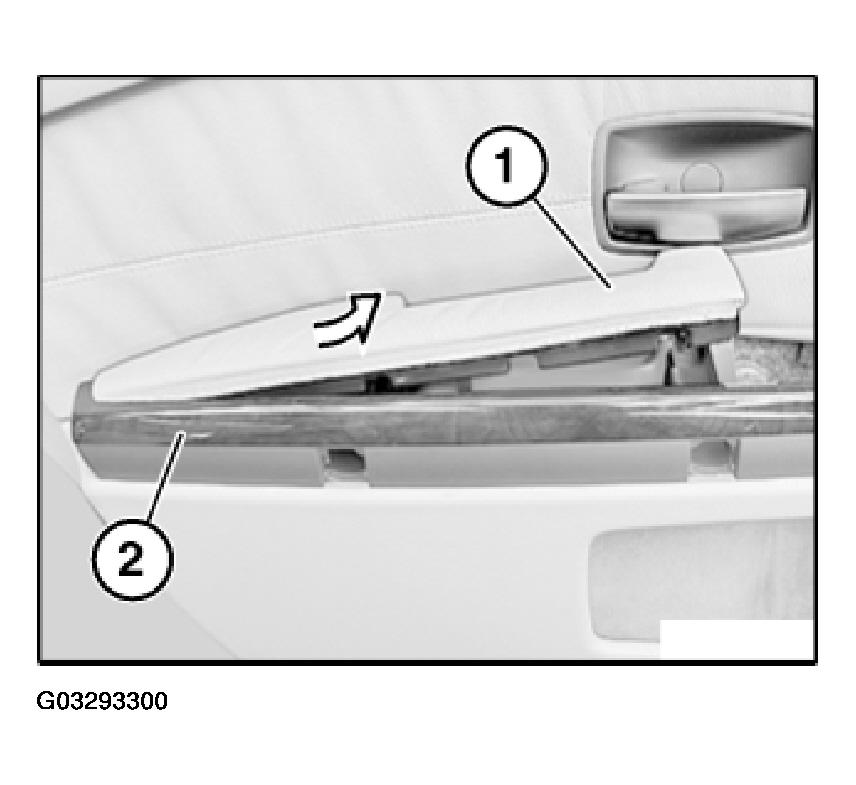

Pull upper section (1) in direction of arrow off armrest (2).

Fig 2: Removing Upper Section Of Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

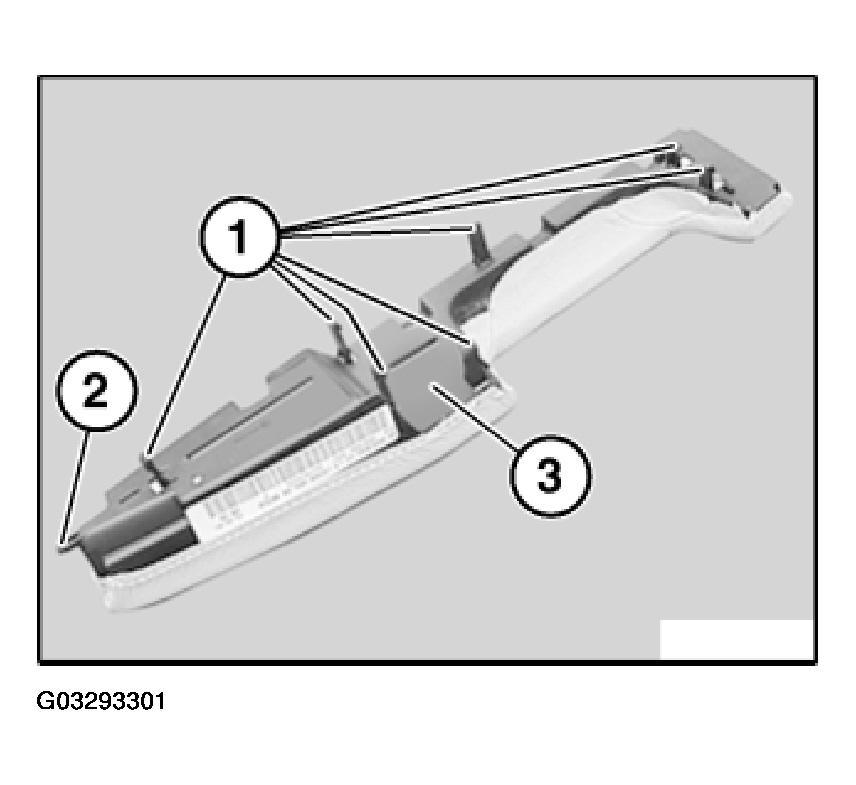

Catches (1) and guide (2) of upper section (3) must not be damaged.

Fig 3: Locating Catches And Guide Of Upper Section

Courtesy of BMW OF NORTH AMERICA, INC.
