51 16... Removing And Installing/Replacing Trim On Roller Sun Blind Of Left Or Right Rear Door

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

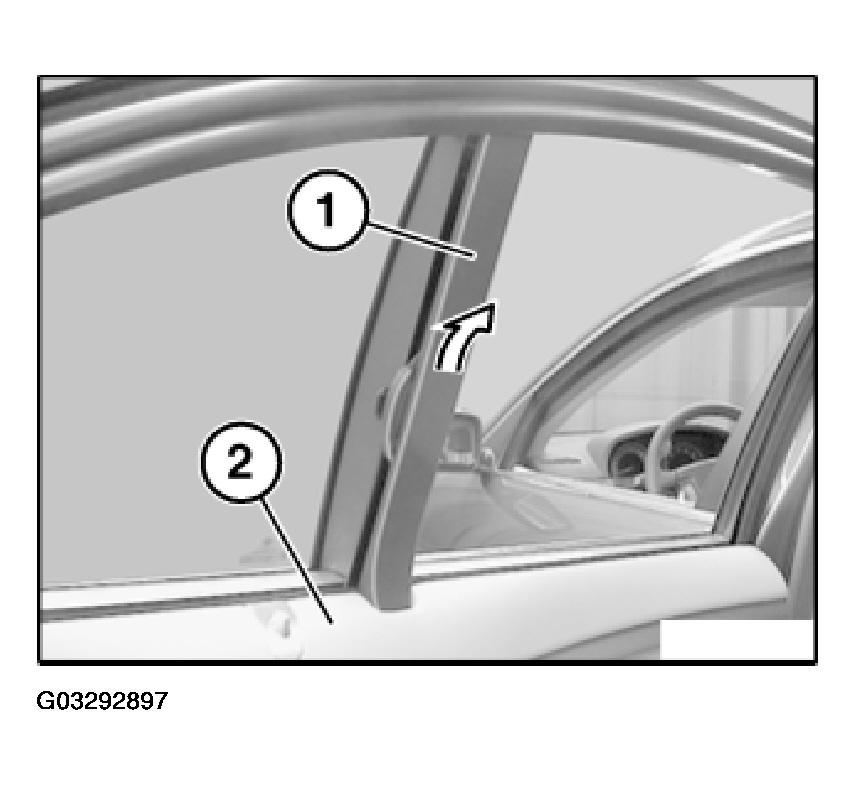

Unclip trim (1) and pull out in direction of arrow from door trim panel (2).

Fig 1: Removing Door Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

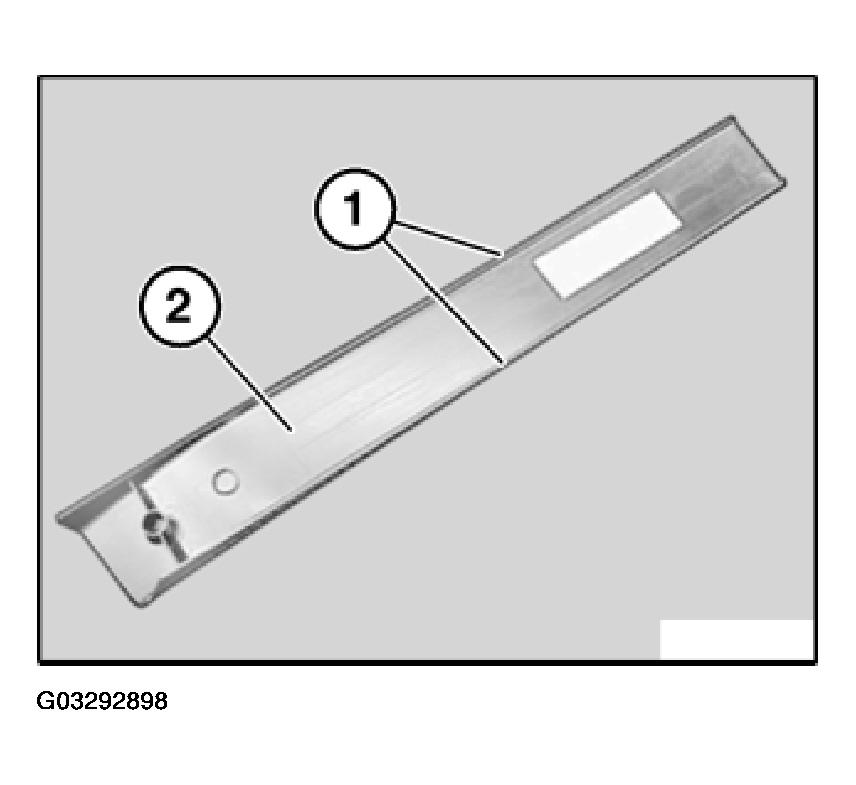

Engagement rails (1) of trim (2) must not be damaged.

Fig 2: Identifying Engagement Rails Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.
