51 16... Removing And Installing/Replacing Inner Trim On Window Frame (Roller Sun Blind) Of Left Or Right Rear Door

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Unclip trim (1) and pull out in direction of arrow from door trim (2).

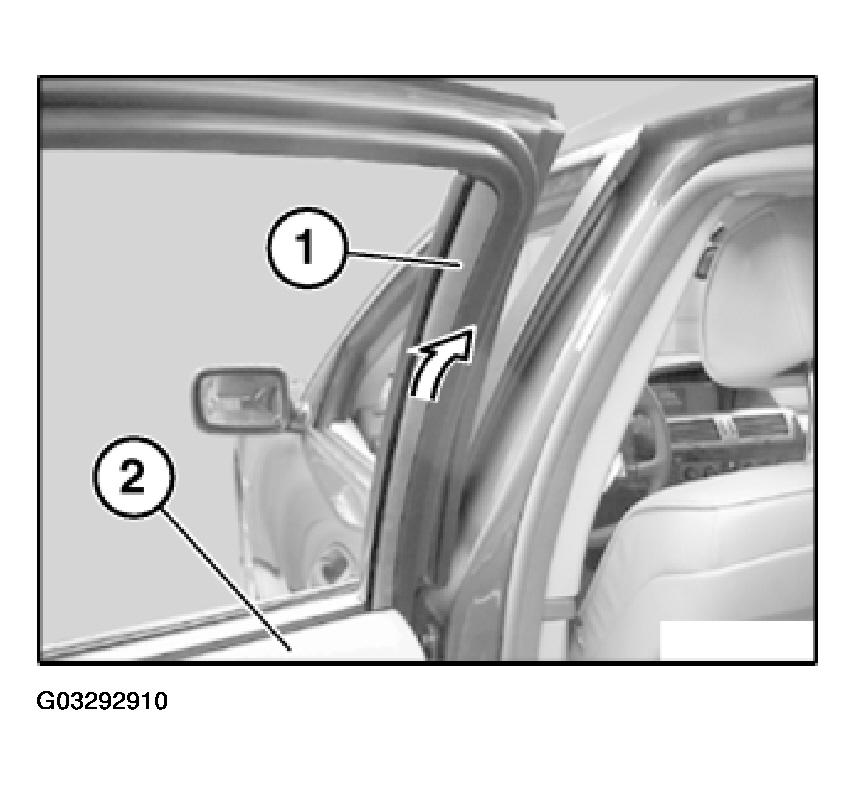

Fig 1: Removing Door Trim
G03292910Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locking rails (1) of trim (2) must not be damaged.

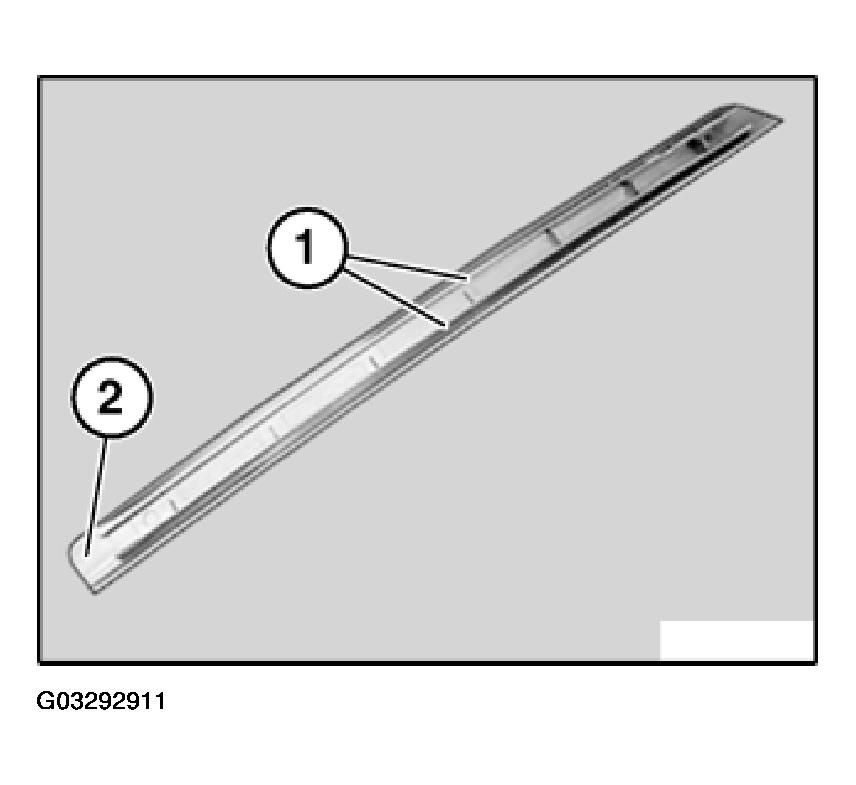

Fig 2: View Of Locking Rails Of Trim
G03292911Courtesy of BMW OF NORTH AMERICA, INC.
