51 16... Removing And Installing/Replacing Guide Rail For Roller Sun Blind Of Left Or Right Rear Door

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front chest strip (chrome strip) on rear door. Refer to 51 42 400 REMOVING AND INSTALLING/REPLACING CHEST STRIP (CHROME STRIP) ON LEFT OR RIGHT REAR DOOR (WITH ROLLER SUN BLIND) .
Disengage roller sun blind. Refer to 51 16... DISENGAGING AND ENGAGING ROLLER SUN BLIND ON LEFT OR RIGHT REAR DOOR .

Release screws (1).

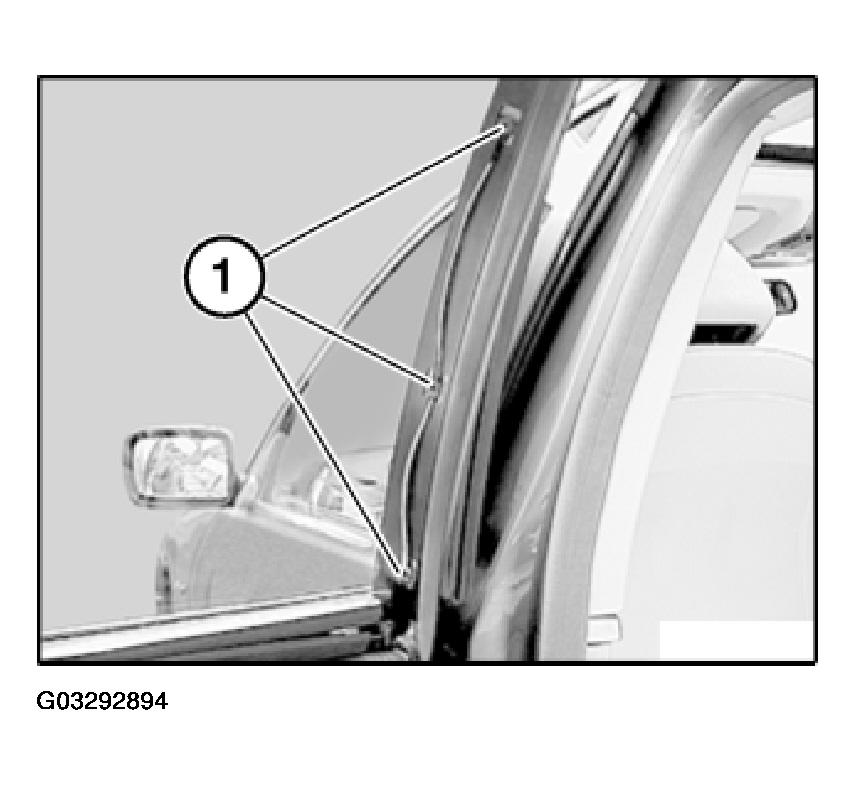

Fig 1: Locating Roller Sun Blind Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully release catch (1).

Lever out guide rail (2) at top (A) and pull out in direction of arrow (B).

Installation:

Make sure guide rail (2) engages correctly in catch (1).

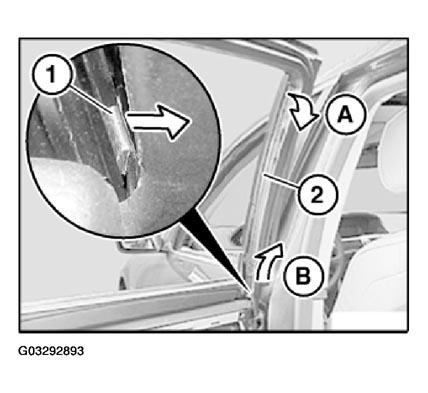

Fig 2: Identifying Release Catch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty spacer (1).

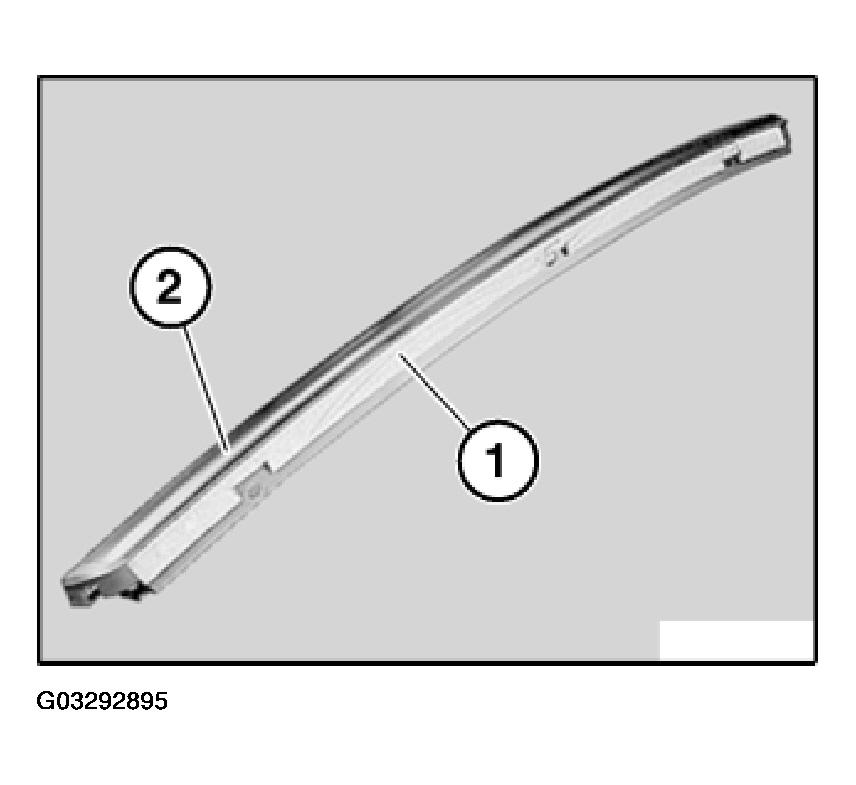

Fig 3: View Of Spacer

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Guide rail (2) must not be damaged at the bottom otherwise the carriage will break.

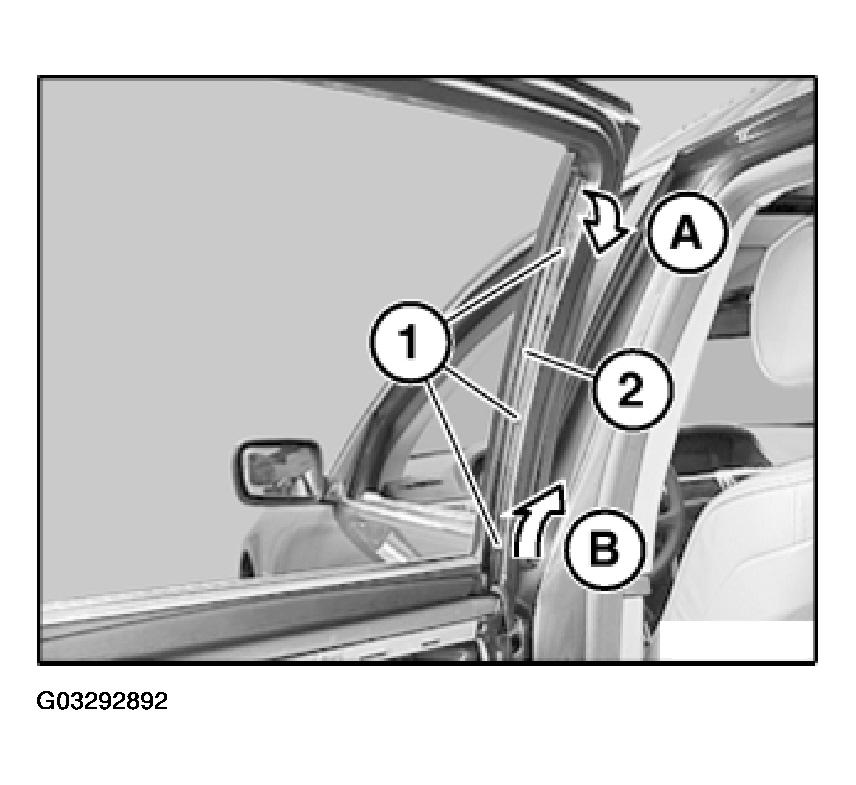

Fig 4: Locating Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert guide rail correctly in brush cable (1) and guide (2).

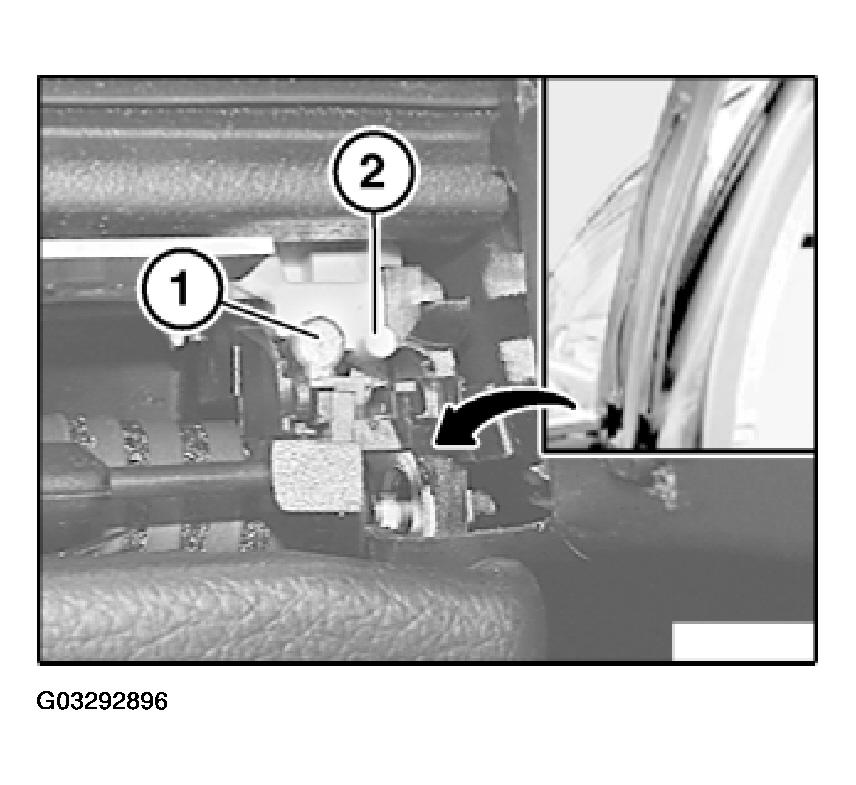

Fig 5: Inserting Guide Rail In Brush Cable And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Sequence:

Install guide rail.
Engage roller sun blind. Refer to 51 16... DISENGAGING AND ENGAGING ROLLER SUN BLIND ON LEFT OR RIGHT REAR DOOR .
Fit front chest strip (chrome strip). Refer to 51 42 400 REMOVING AND INSTALLING/REPLACING CHEST STRIP (CHROME STRIP) ON LEFT OR RIGHT REAR DOOR (WITH ROLLER SUN BLIND) .
