Removing Bottom Storage Tray (Drawer) From Function Carrier:

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

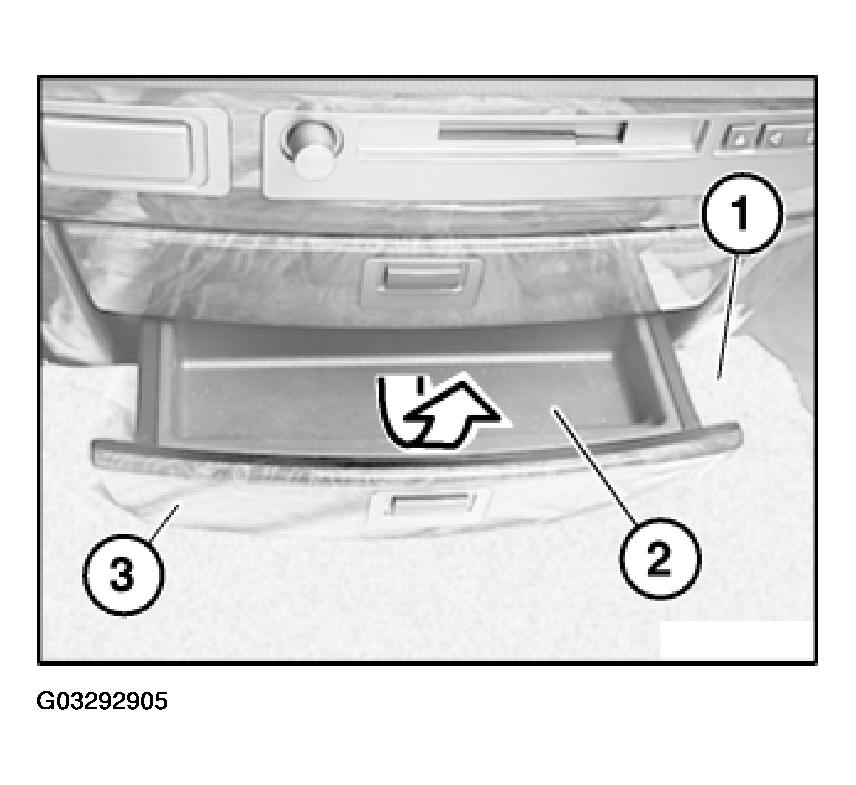

IMPORTANT: Cover decorative strip with a protective cover (1) to prevent scratching.

Lever insert (2) in direction of arrow out of storage tray (3).

Fig 1: Removing Bottom Storage Tray (Drawer) From Function Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

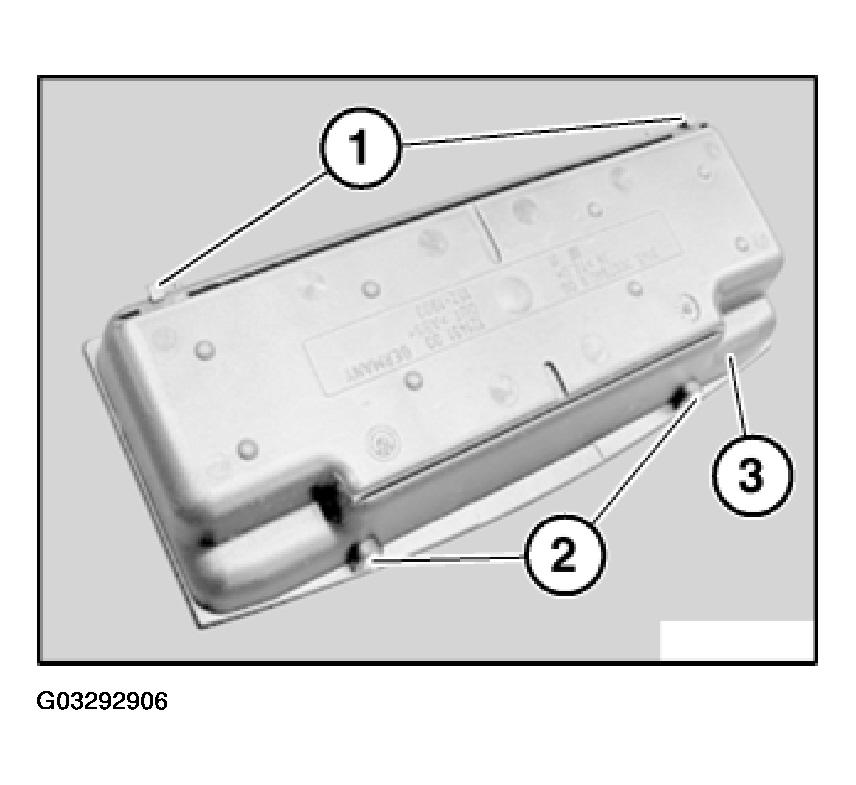

Following parts of insert (3) must not be damaged:

Guides.
Catches.

Fig 2: Identifying Insert Guides And Catches
Courtesy of BMW OF NORTH AMERICA, INC.

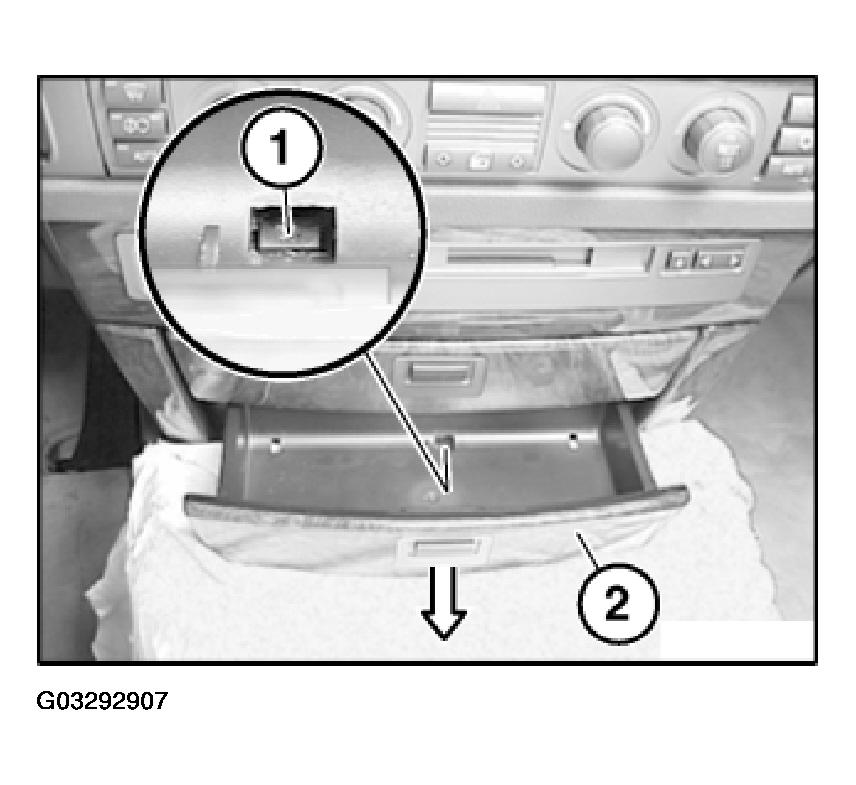

Press lock (1) downwards and pull out storage tray (2) in direction of arrow.

Installation:

Lock (1) must not be damaged.

Fig 3: View Of Storage Tray Lock

Courtesy of BMW OF NORTH AMERICA, INC.

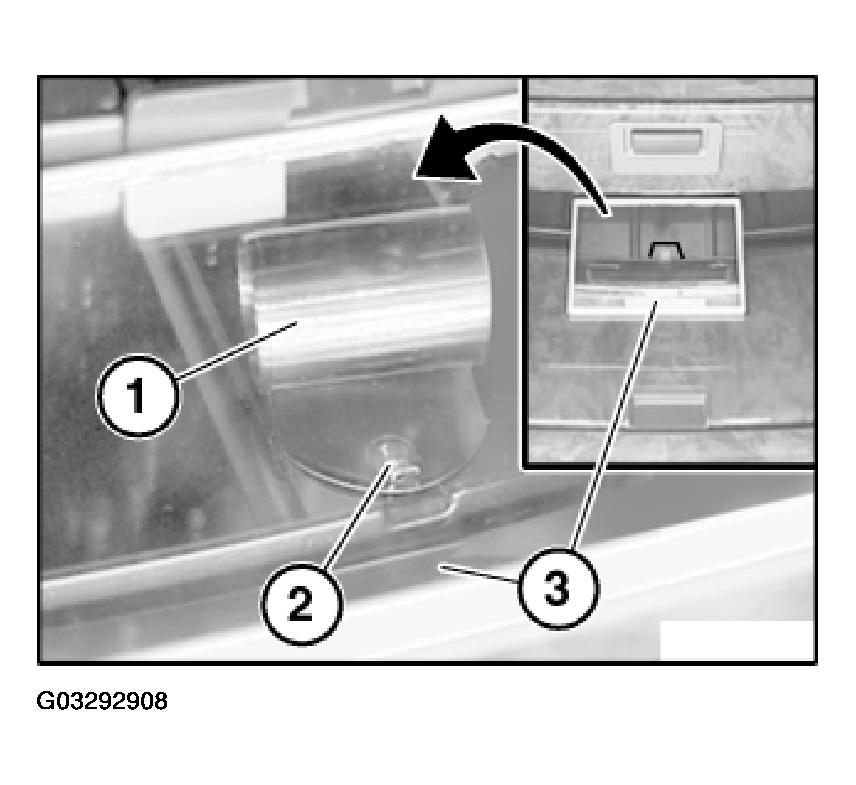

NOTE: A hand mirror (2) will be required for viewing.

Installation:

Spring (1) must be correctly connected in mounting (2).

Fig 4: Connecting Spring In Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

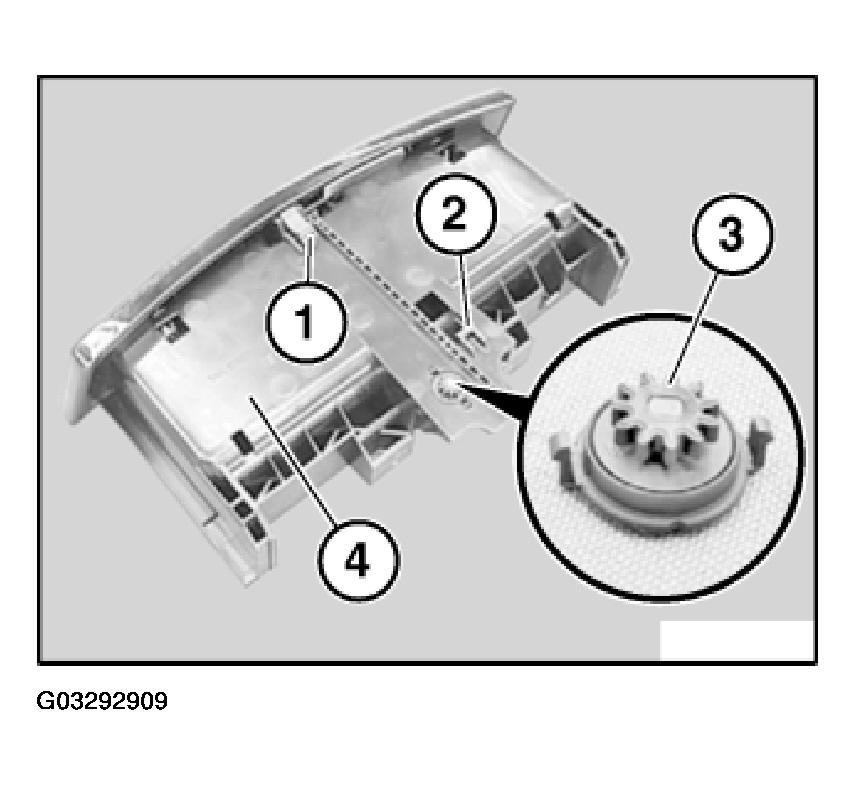

Following parts of storage tray (4) must not be damaged:

Catch.
Stop.
Damper.

Fig 5: Identifying Storage Tray Catch, Stop And Damper
Courtesy of BMW OF NORTH AMERICA, INC.
