Side Panel On Center Console, Front:

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (1) on left/right.

Slide panel (2) on left/right in direction of arrow and remove.

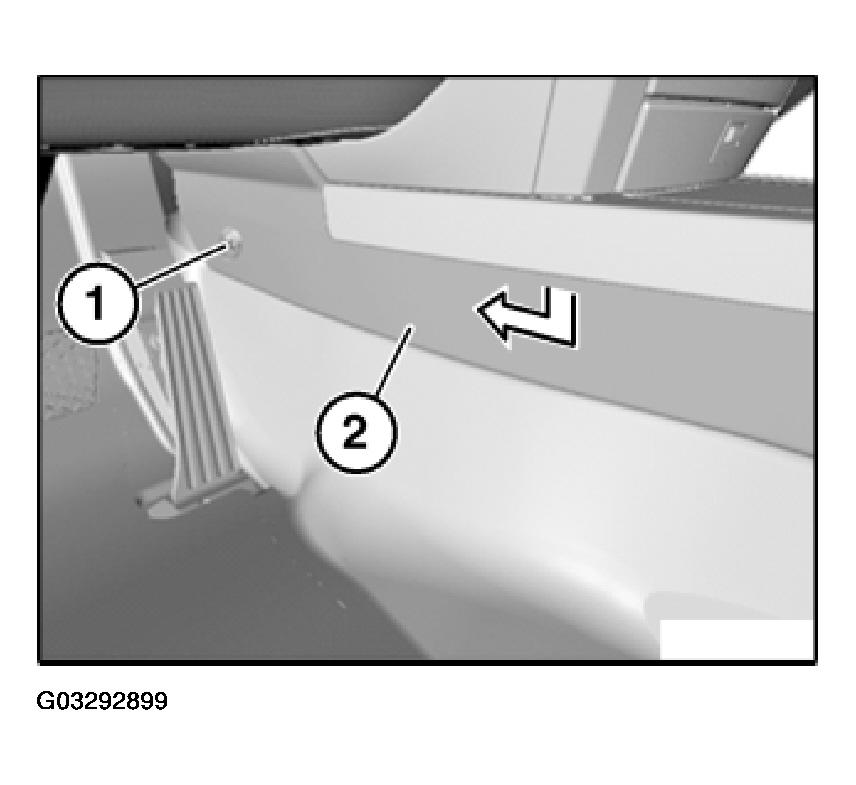

Fig 1: View Of Side Panel On Center Console (Front)
G03292899Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers (1) must be correctly seated in panel guides (2).

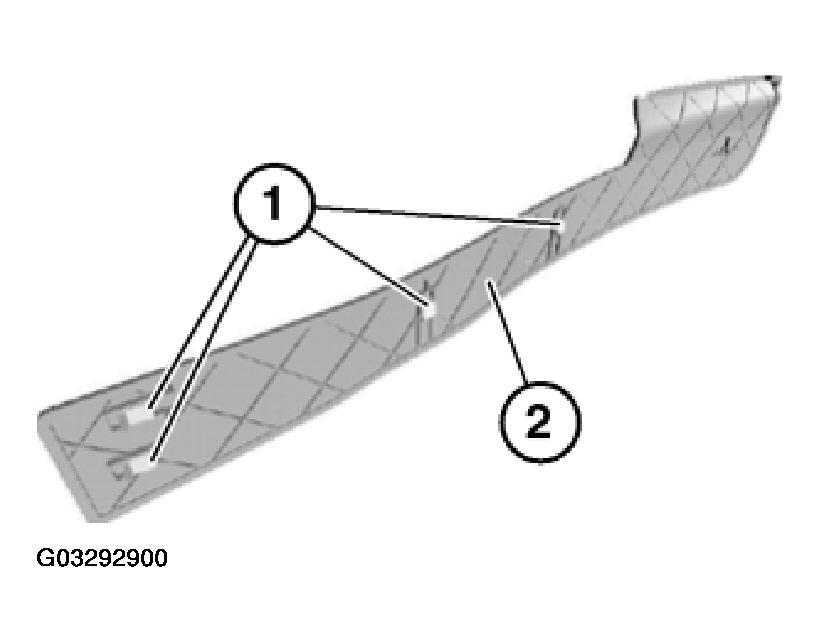

Fig 2: Identifying Retainers In Panel Guides
G03292900Courtesy of BMW OF NORTH AMERICA, INC.
