51 16... Function Test Of Roller Sun Blind Of Left Or Right Rear Door
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .
Special Tools Required:
- 00 9 318
Requirements:
Door window glass must be closed during the function test
Extend roller sun blind; if necessary, sliding members automatically snap into place in end position.
Function Test:
- Retract roller sun blind (1) and block at pull rod with special tool 00 9 318 at bottom (left and right sliding members snap out).
- Extend roller sun blind (1).
- Sliding members automatically snap into "top" end position.
- Retract roller sun blind (1).

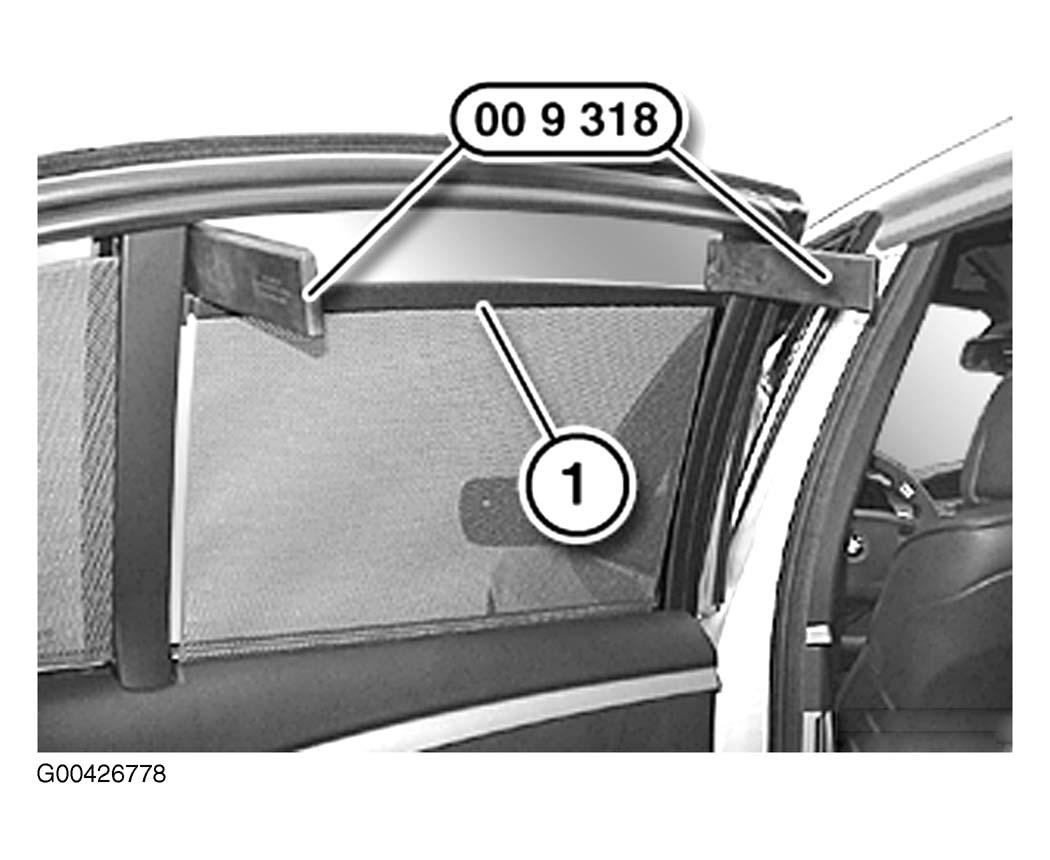

- Extend roller sun blind (1) and block at pull rod with special tool 00 9 318 at top (left and right sliding members snap out).
- Retract roller sun blind (1).
- Sliding members automatically snap into "bottom" end position.
- Extend and retract roller sun blind (1).
