51 16 365 Removing And Installing/Replacing Glovebox Cover (Without Active Knee Protection)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove trim for instrument panel, bottom right. 51 45 181 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM AT BOTTOM RIGHT .

Open glovebox.

Release clip (1) and detach retaining strap (2).

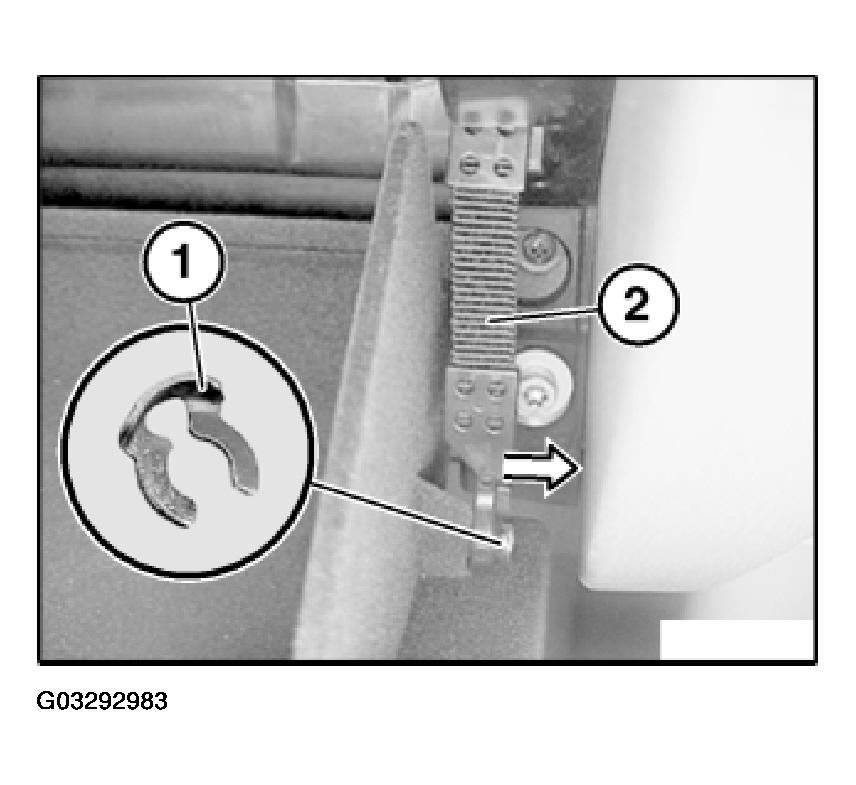

Fig 1: View Of Clip And Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Release clip (1) and detach damper (2).

Close glovebox.

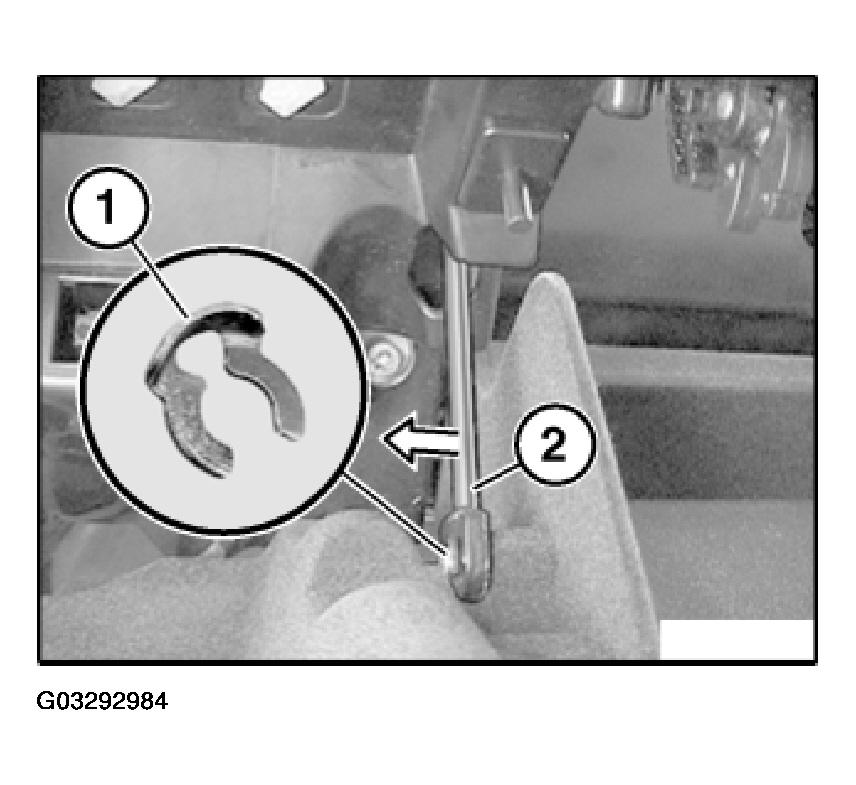

Fig 2: Locating Clip And Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove counter-supports (2).

Unlock glovebox (3) and remove.

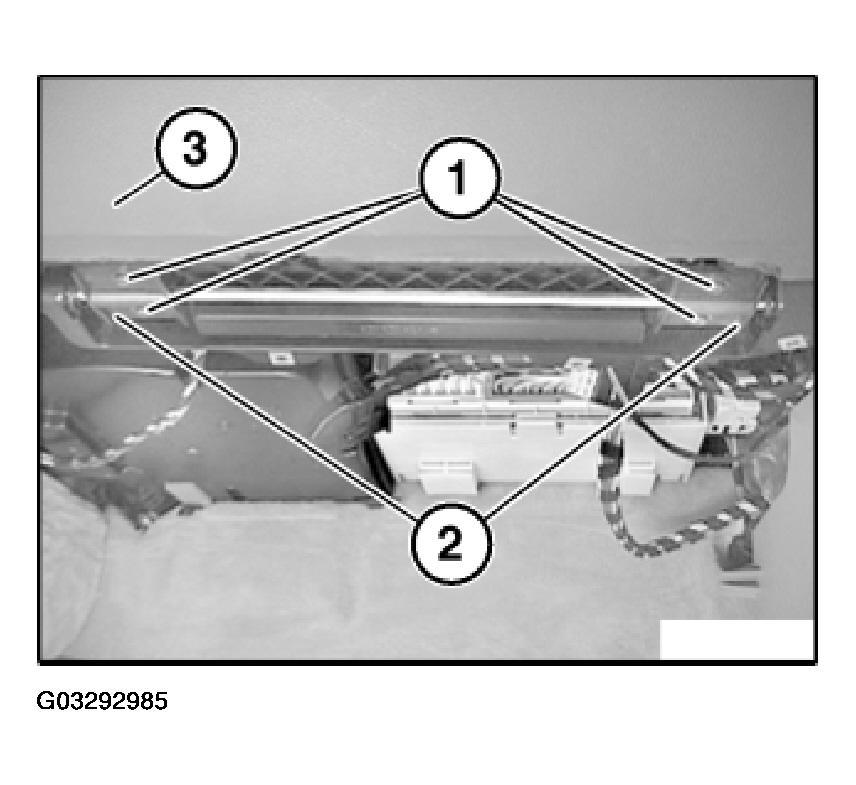

Fig 3: Removing Counter-Supports Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust glovebox (1) to instrument panel (2):

A = approx. 5 mm.
B = approx. 4 mm (center).
Check function.

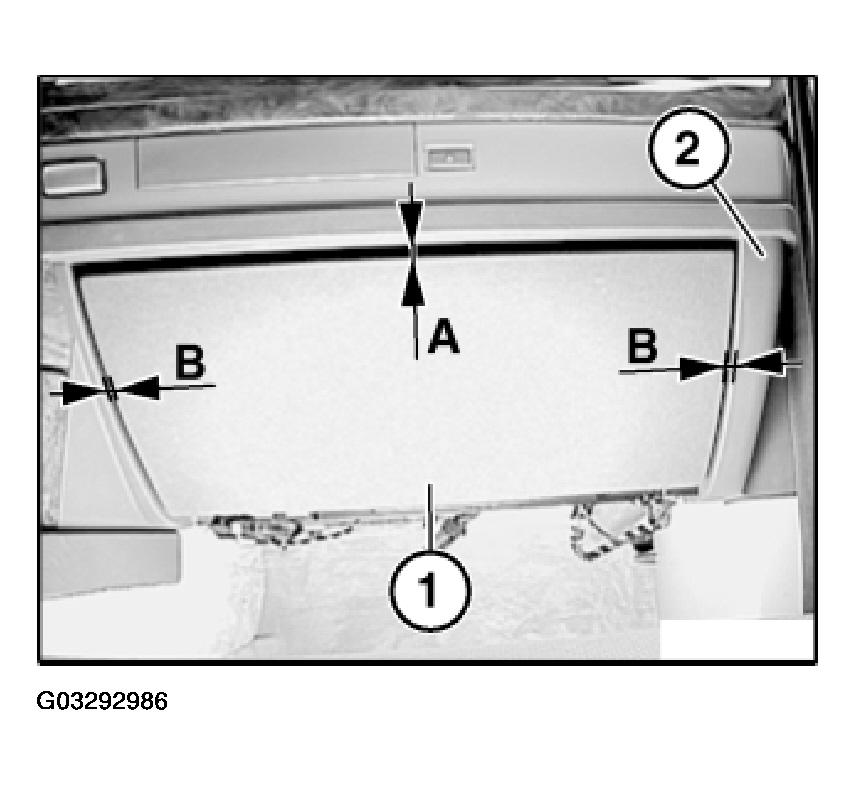

Fig 4: Identifying Glovebox Adjustment Dimensions
Courtesy of BMW OF NORTH AMERICA, INC.
