51 16 345 Removing And Installing/Replacing Button And Bowden Cable For Glovebox
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove trim on instrument panel on right. Refer to 51 45 263 REMOVING AND INSTALLING/REPLACING INSTRUMENT PANEL TRIM ON RIGHT .
Only when replacing Bowden cable for glovebox:
- Remove right glovebox. Refer to 51 16 366 REMOVING AND INSTALLING RIGHT GLOVEBOX WITH HOUSING and 51 16 367 REMOVING AND INSTALLING RIGHT GLOVEBOX (WITH ACTIVE KNEE PROTECTOR) WITH HOUSING .

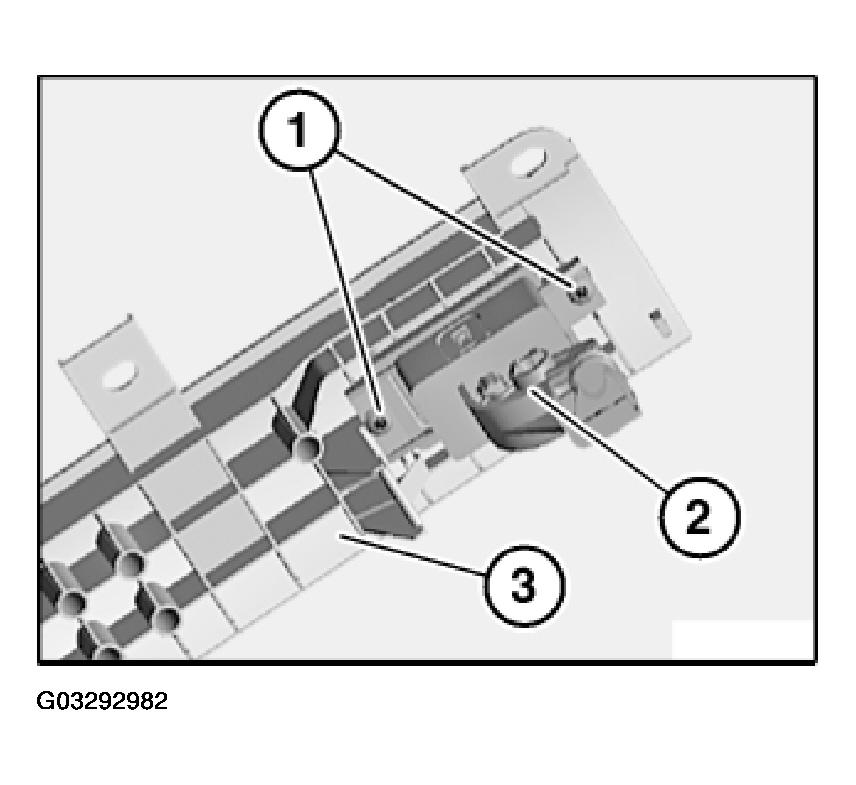

Release screws (1).
Remove button (2) from trim (3).
