51 16 340 Removing And Installing/Replacing Lock For Right Glovebox

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove glovebox. Refer to 51 16 366 REMOVING AND INSTALLING RIGHT GLOVEBOX WITH HOUSING and 51 16 367 REMOVING AND INSTALLING RIGHT GLOVEBOX (WITH ACTIVE KNEE PROTECTOR) WITH HOUSING .

Open glovebox.

Release screws (1).

Remove lock (2).

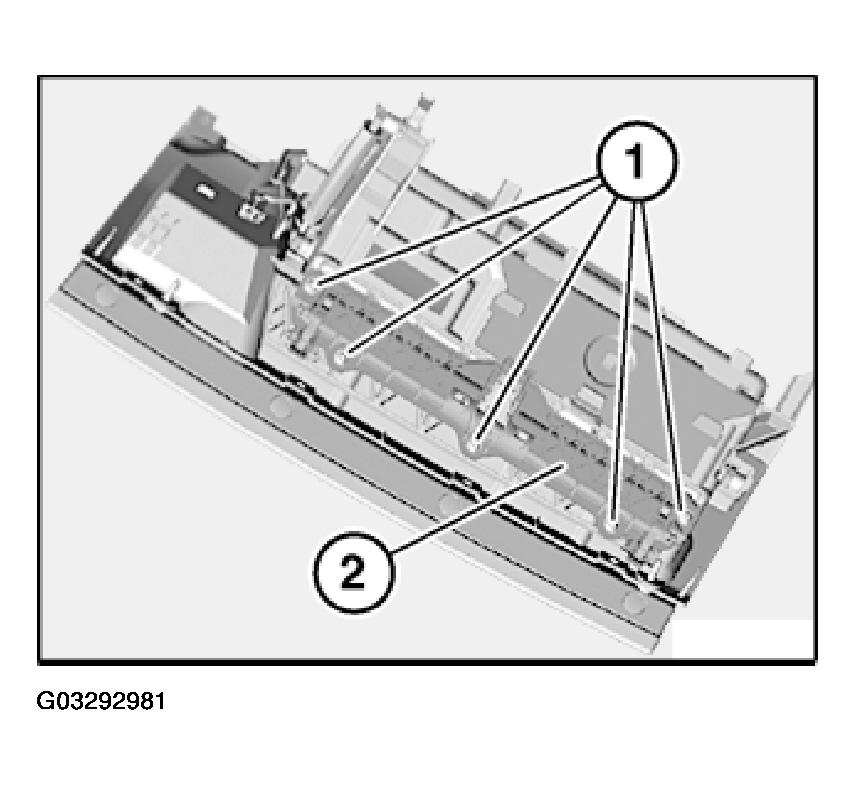

Fig 1: Removing Glovebox Lock

Courtesy of BMW OF NORTH AMERICA, INC.
