51 16 204 Removing And Installing/Replacing Rear Cup Holder
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
Specification With Normal Rear Seat:
- Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .
Specification with normal/electric rear seat:
- Remove seat middle section. Refer to 52 25 002 REMOVING AND INSTALLING PADDING FOR LEFT OR RIGHT REAR SEAT .

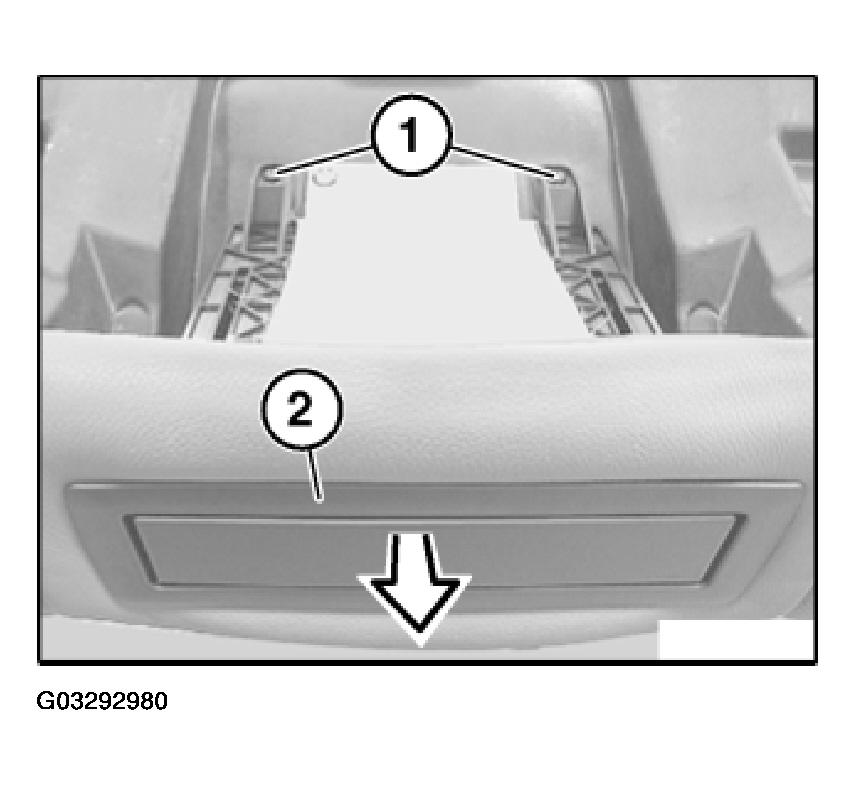

Release screws (1).
Remove cup holder (2) towards front.
