51 16 175 Removing And Installing/Replacing Decorative Trims (All) On Function Carrier: Notes

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 318

IMPORTANT: When removing side decorative trims (1) or decorative trim (2) for audio system controller: Do not under any circumstances place a tool on the dotted lines as this would destroy the decorative trim.

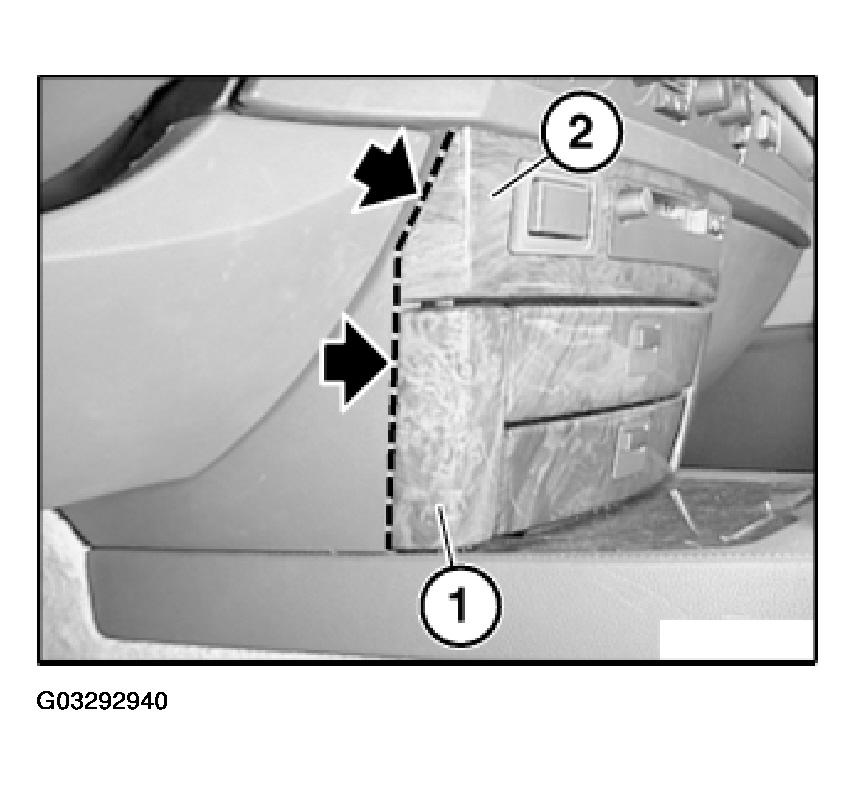

Fig 1: View Of Side Decorative Trims For Audio System Controller

Courtesy of BMW OF NORTH AMERICA, INC.
