51 16 060 Removing And Installing/Replacing Interior Rearview Mirror (Overview)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Version with cable (X) for:
  • Automatic dim action (electro-chrome technology) for interior rearview mirror.
  • Fogging sensor.
  • Remote control (infrared or radio).
  • Autobeam.
  • Garage door opener.
  • Compass.
  • Rain sensor.

Version without cable (X) with full foot. Refer to 51 16 060 REMOVING AND INSTALLING/REPLACING INTERIOR REARVIEW MIRROR (WITH FULL FOOT) .

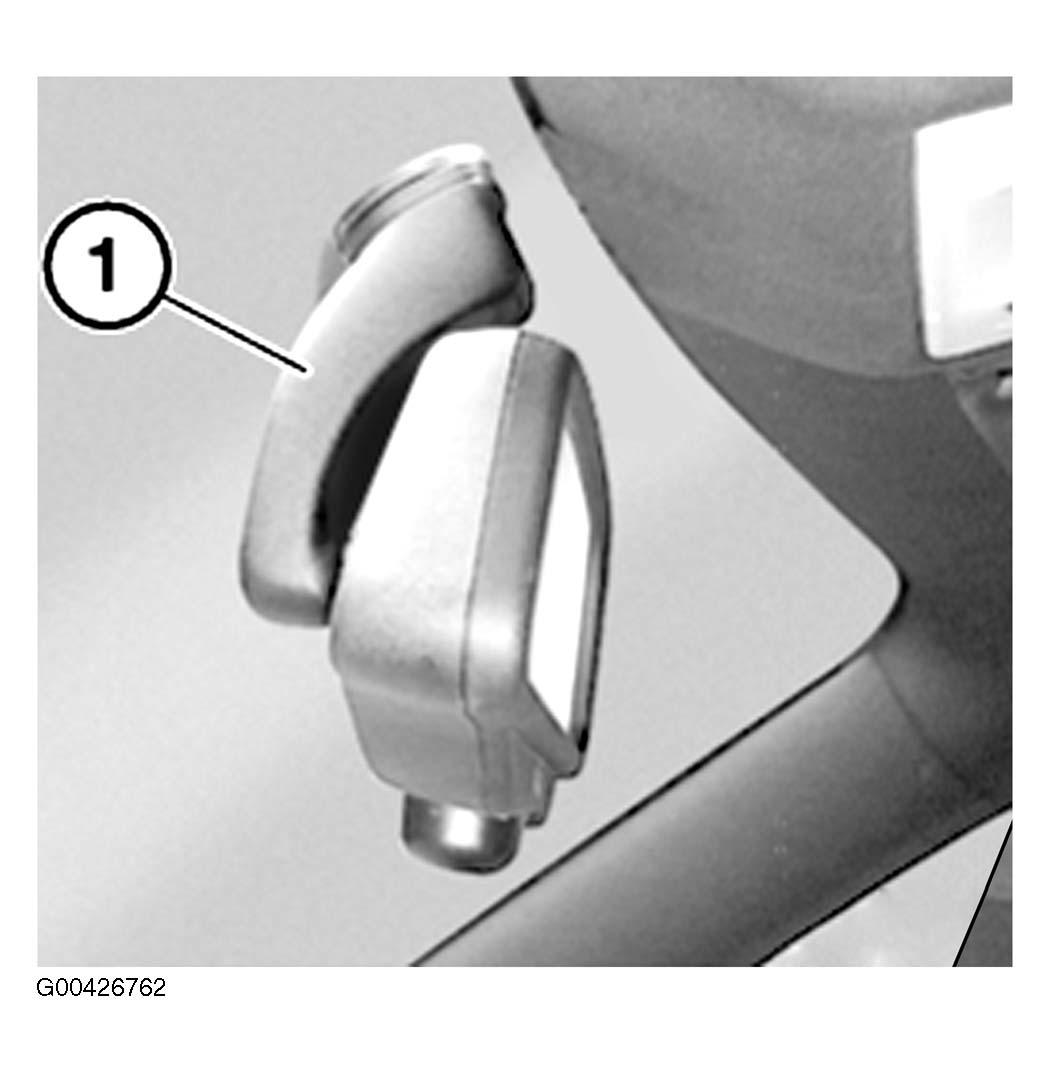

Fig 1: Identifying Rearview Mirror Without Cable Without Cable With Full Foot
G00426762Courtesy of BMW OF NORTH AMERICA, INC.

Version with cable (X) and with plug trim cover.

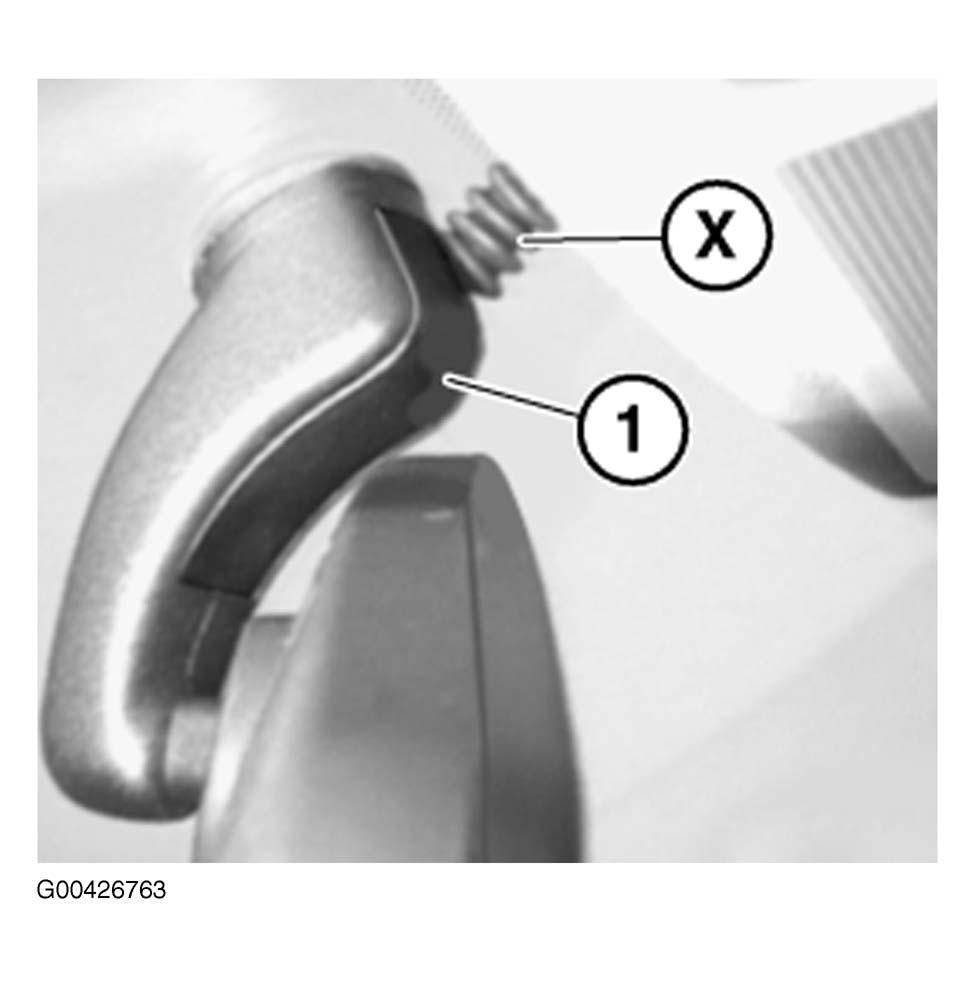

Fig 2: View Of Mirror With Cable And Plug Trim Cover
G00426763Courtesy of BMW OF NORTH AMERICA, INC.

Version with mirror arm end caps. Refer to 51 16 060 REMOVING AND INSTALLING/REPLACING INTERIOR REARVIEW MIRROR (WITH MIRROR ARM END CAPS) .

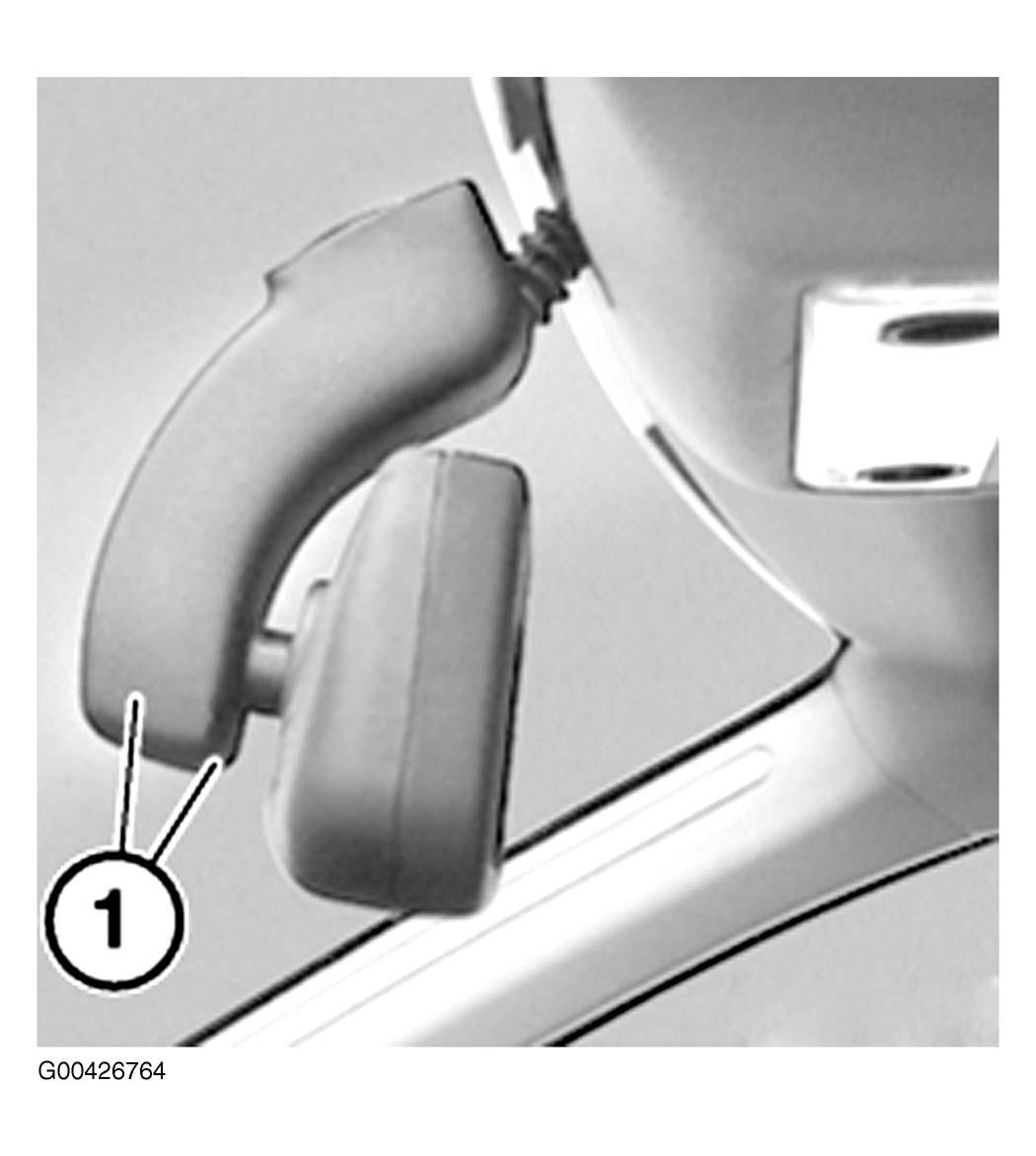

Fig 3: Identifying Rearview Mirror With Mirror Arm End Caps
G00426764Courtesy of BMW OF NORTH AMERICA, INC.

Version with rain sensor. Refer to 51 16 060 REMOVING AND INSTALLING/REPLACING INTERIOR REARVIEW MIRROR (WITH RAIN SENSOR) .

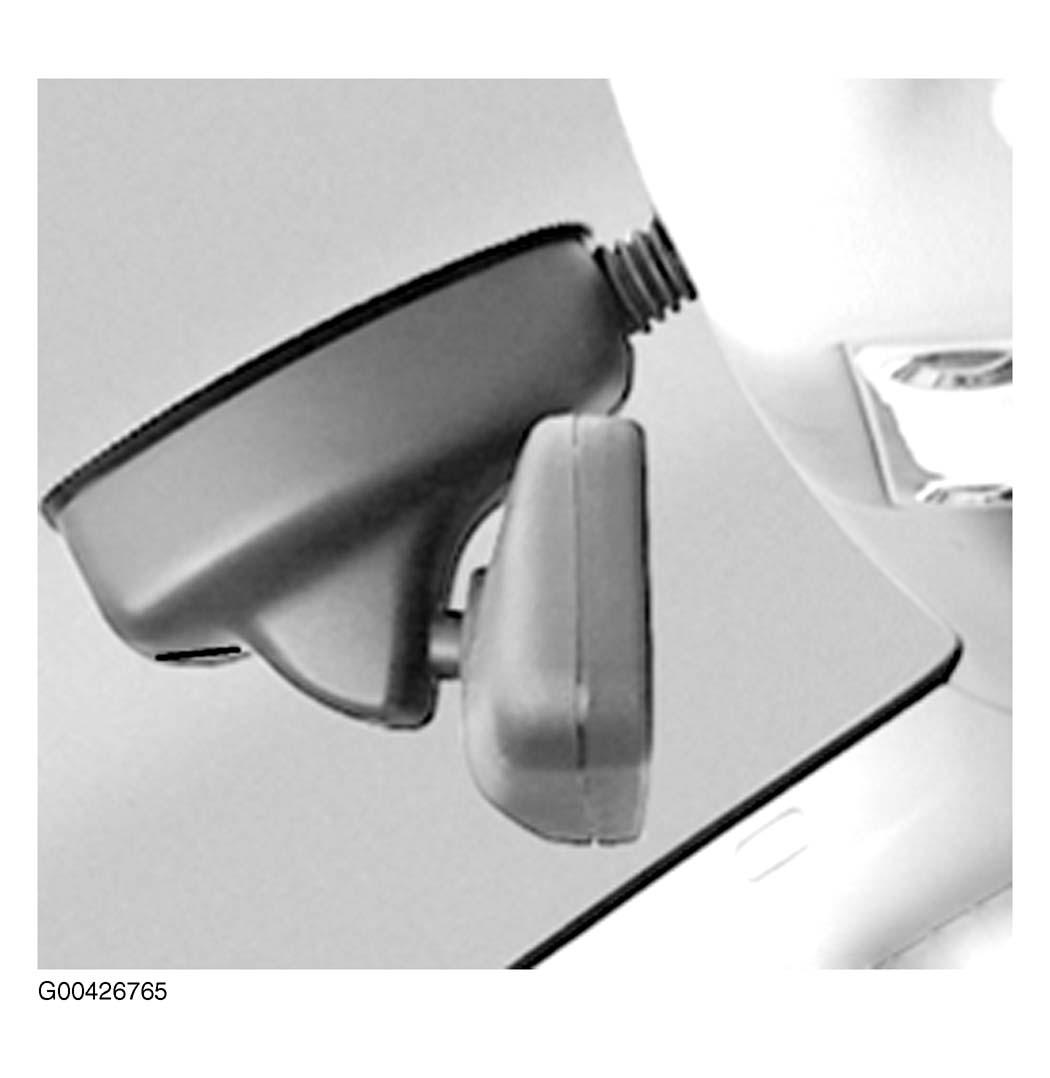

Fig 4: View Of Rearview Mirror With Rain Sensor
G00426765Courtesy of BMW OF NORTH AMERICA, INC.

Version with Autobeam. Refer to 51 16 060 REMOVING AND INSTALLING/REPLACING INTERIOR REARVIEW MIRROR (WITH AUTOBEAM) .

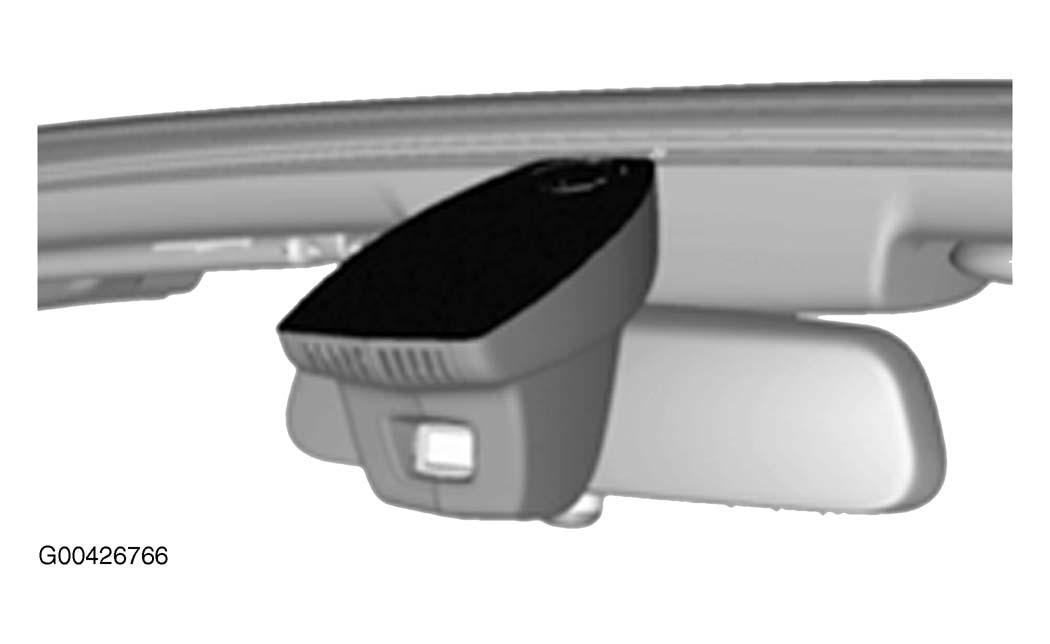

Fig 5: Identifying Rearview Mirror With Autobeam
G00426766Courtesy of BMW OF NORTH AMERICA, INC.
